Appendix F: Mounting Instructions
The BreadCrumb ES1 has two mounting holes which are found on the center le and right of the front
and back of the ES1-5050CS. The mounting holes are 131 mm (5.15 inches) apart (center to center) and
are intended for M4 machine screws with washers to distribute the pressure on the plastic.
The two mounting holes are accessed from the front of the BreadCrumb ES1 via small flip-up access com-
partments on the le and right front border of the ES1-5050CS.

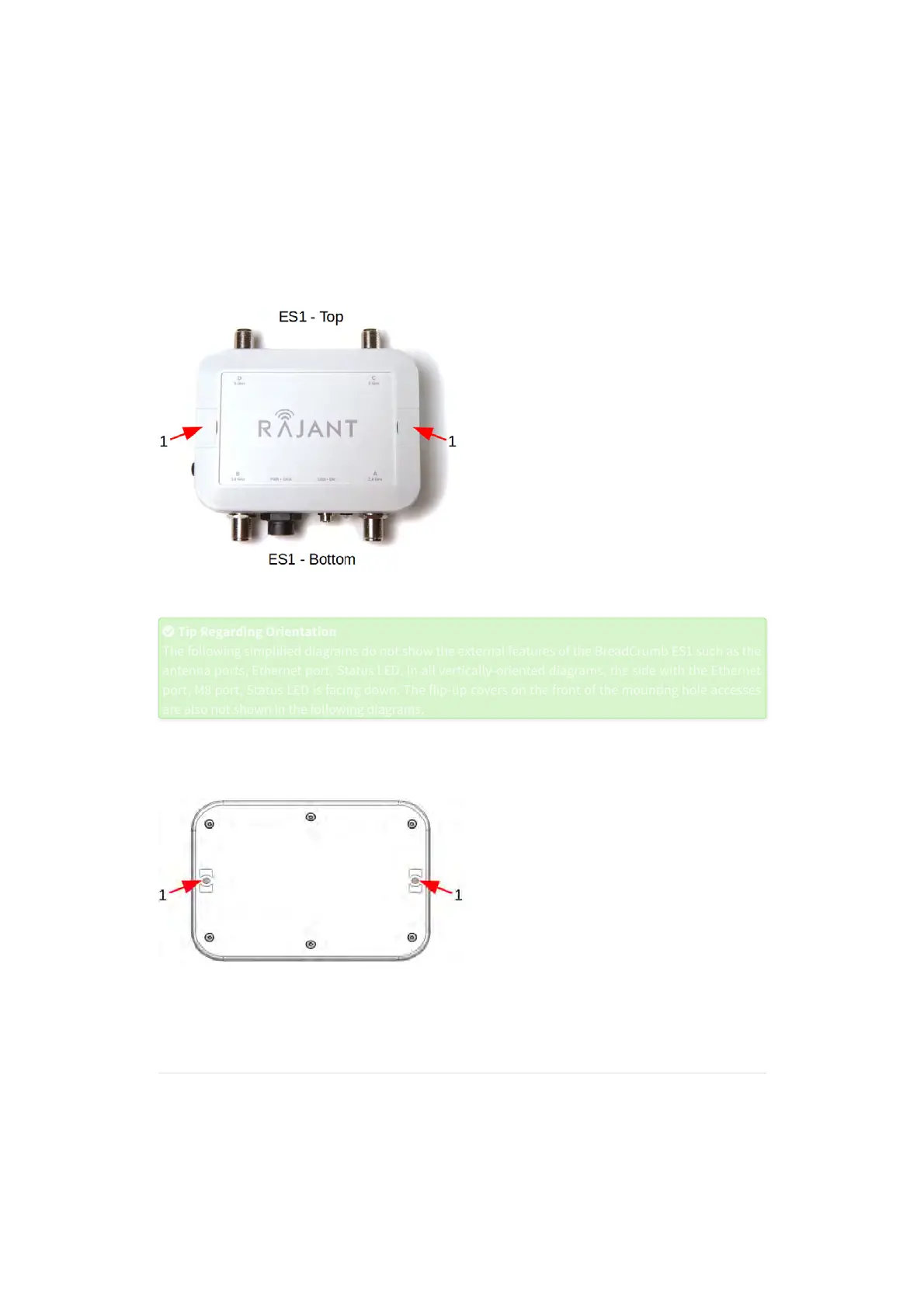

Figure: BreadCrumb ES1 Front Flip-Up Mounting Hole Accesses
1. Front flip-up mounting hole accesses
Tip Regarding Orientation
Tip Regarding Orientation
The following simplified diagrams do not show the external features of the BreadCrumb ES1 such as the
The following simplified diagrams do not show the external features of the BreadCrumb ES1 such as the
antenna ports, Ethernet port, Status LED. In all vertically-oriented diagrams, the side with the Ethernet
antenna ports, Ethernet port, Status LED. In all vertically-oriented diagrams, the side with the Ethernet
port, M8 port, Status LED is facing down. The flip-up covers on the front of the mounting hole accesses
port, M8 port, Status LED is facing down. The flip-up covers on the front of the mounting hole accesses
are also not shown in the following diagrams.
are also not shown in the following diagrams.
The two mounting holes are located on the back of the BreadCrumb ES1 as shown below.
Figure: BreadCrumb ES1 Back Mounting Holes
1. Mounting holes from back of ES1-5050CS
A pole mounting kit and a 35mm DIN rail mounting kit are available for the BreadCrumb ES1.
F.1 Pole Mount Kit
The pole mounting bracket for BreadCrumb ES1 attaches to the back of the ES1-5050CS as described be-
low. The ES1-5050CS pole mount kit is Rajant P/N 90-100104-001.
The following diagram shows a BreadCrumb ES1 with pole mounting bracket attached. Note that the
bracket has a choice of two pairs of slots where a hose clamp can be threaded. A hose clamp for a narrow
diameter pole should be threaded only through the inner pair of slots (thread the hose clamp down into
