one slot and up through the matching slot of the pair). A hose clamp for a wider diameter pole should be
threaded only through the outer pair of slots. Hose clamps ½ to ¾ inch wide may be used.
It may be easier to thread the hose clamp before attaching the pole mounting bracket to the BreadCrumb
ES1. Continue for the correct use of washers and nut when attaching the pole mounting bracket.
Figure: BreadCrumb ES1 Pole Mounting Bracket Attached
The mounting holes for attaching the pole mount bracket are accessible from the front of the
BreadCrumb ES1 enclosure via small flip-up accesses on the le and right borders of the front of the ES1-
5050CS enclosure.

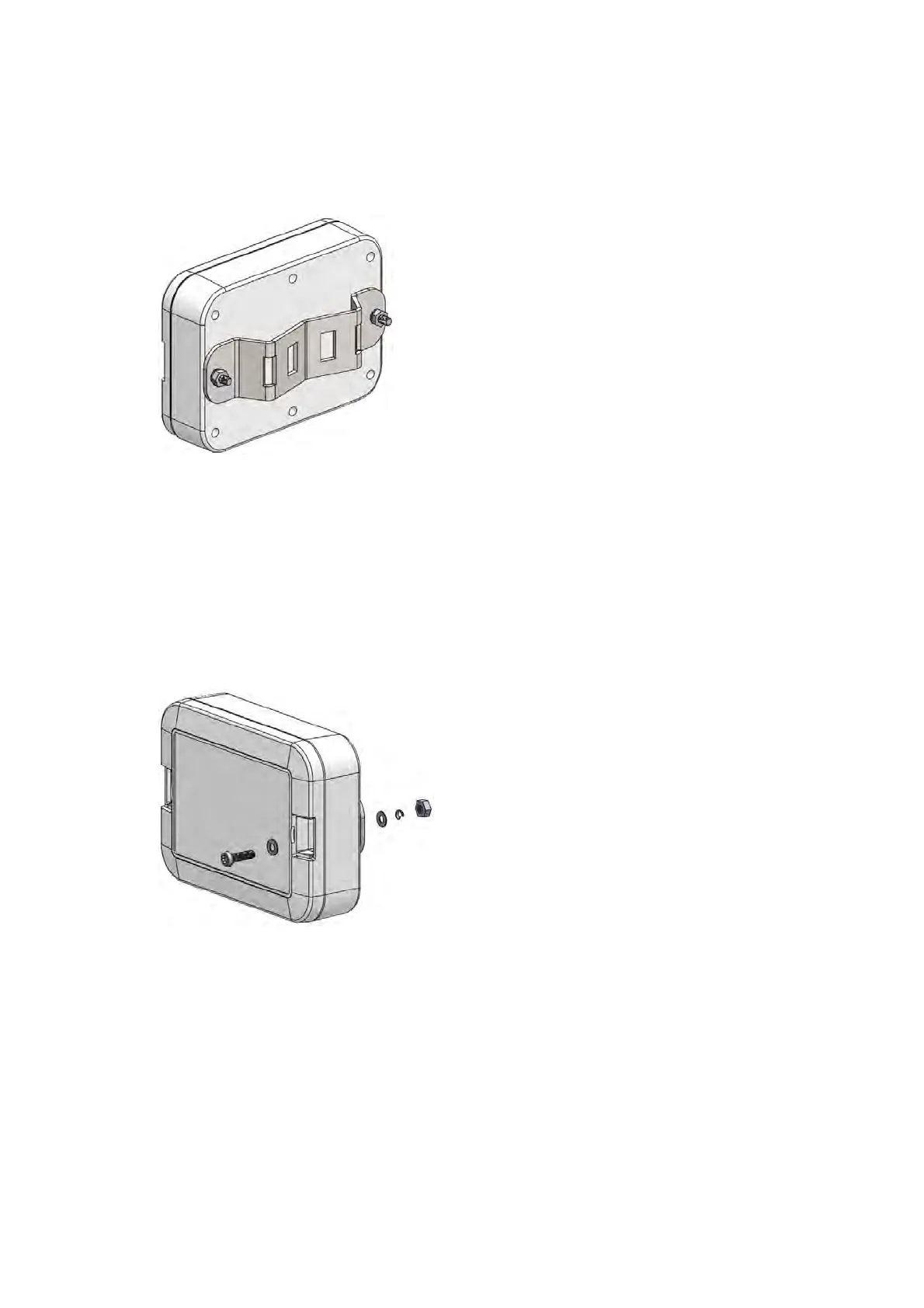

The following diagram shows the order of washers, lock washer and nut used when attaching one end of
the ES1-5050CS pole mounting bracket to the enclosure of the BreadCrumb ES1. Both ends of the pole
mounting bracket should be attached to the BreadCrumb ES1. Some may wish to first thread the hose
clamp through the slots of the pole mounting bracket (using the inner pair of slots for a smaller diameter
pole/hose clamp, the outer pair of slots for a larger diameter pole/hose clamp).
Figure: Attaching the Pole Mounting Bracket to the BreadCrumb ES1
The attachment order of parts from front to back are:
M4 machine screw, washer, BreadCrumb ES1 (front to back), pole mounting bracket, washer, lock washer,
nut
If the hose clamp was not threaded on before attaching the pole mounting bracket to the ES1-5050CS,
thread it through the pole mounting bracket now. The hose clamp may then be tightly secured around a
pole.
Figure: BreadCrumb ES1 Attached to a Pole
To Next Page
