R&S ZVA Series User Manual

Getting Started
R&S
®
ZVA
39Getting Started 1145.1090.62 ─ 13
To make a selection in a dialog...
1. Press a softkey with three dots to open a dialog.
2. Use the keys in the NAVIGATION keypad and the rotary knob to access the con-
trols in the dialog.

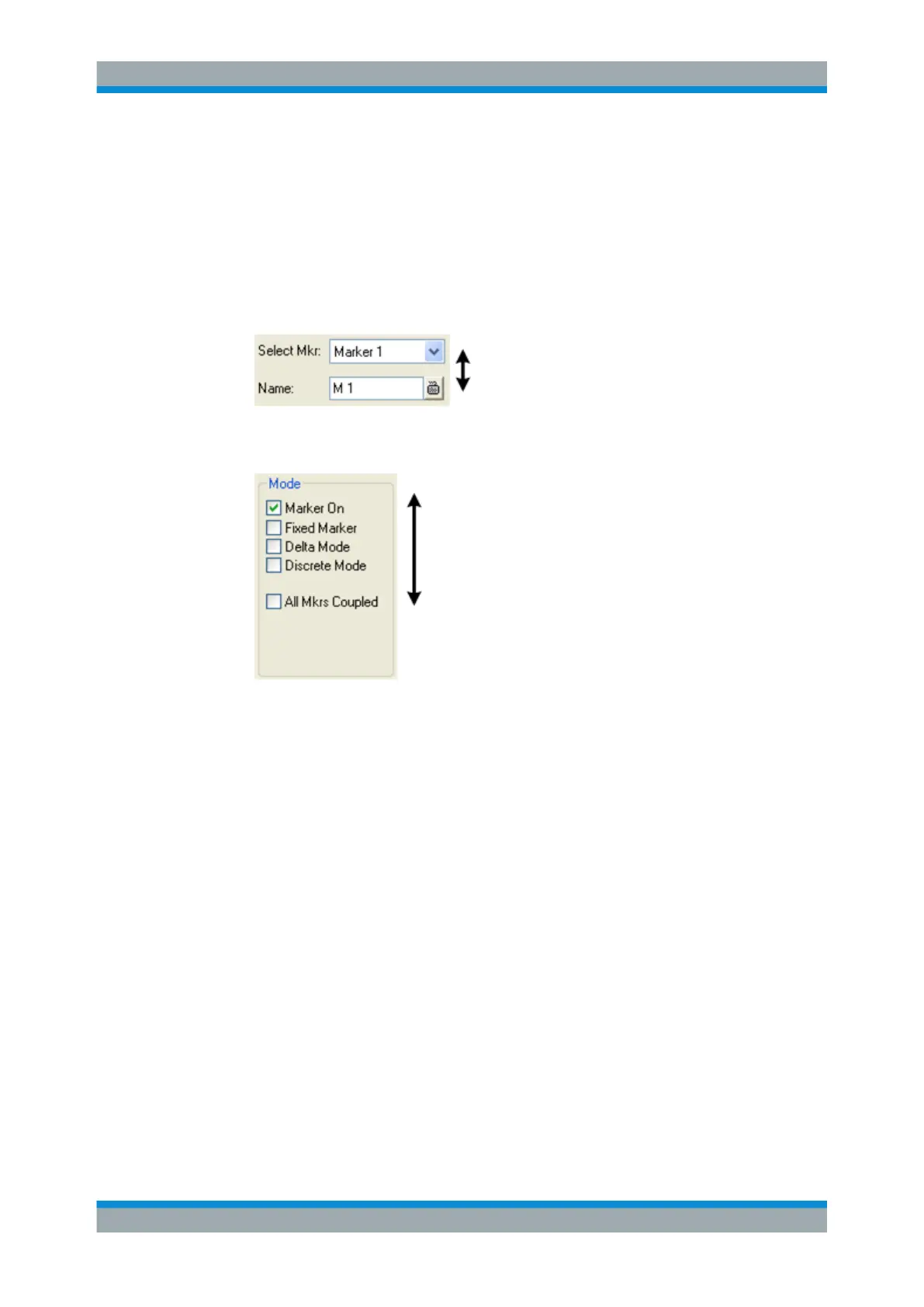

● Press "Left Field" or "Right Field" to switch between the control elements in a
dialog.
3. ● Press the cursor keys or turn the rotary knob to switch between several entries
in a list of alternative or independent settings.
4. Use the DATA ENTRY keys or the rotary knob to enter characters and numbers.
For more details refer to section "Data Entry" below.
5. Press OK ENTER, CANCEL ESC or press the rotary knob to close the active dia-
log.
2.3.2 Data Entry
The analyzer provides dialogs with various types of input fields where you can enter
numeric values and character data. Data entry with a mouse and an external keyboard
is a standard procedure known from other Windows applications. However, there are
various alternative ways to enter data.
2.3.2.1 Using Front Panel Keys
If no mouse and no external keyboard is connected to the analyzer, you can use the
keys in the DATA ENTRY keypad to enter numbers, units, and characters.
To enter a numeric value
1. Place the cursor into a numeric data input field in a dialog or in the numeric entry
bar.
Basic Tasks
