R&S ZVA Series User Manual

Preparing the Analyzer for Use
R&S
®
ZVA
8Getting Started 1145.1090.62 ─ 13

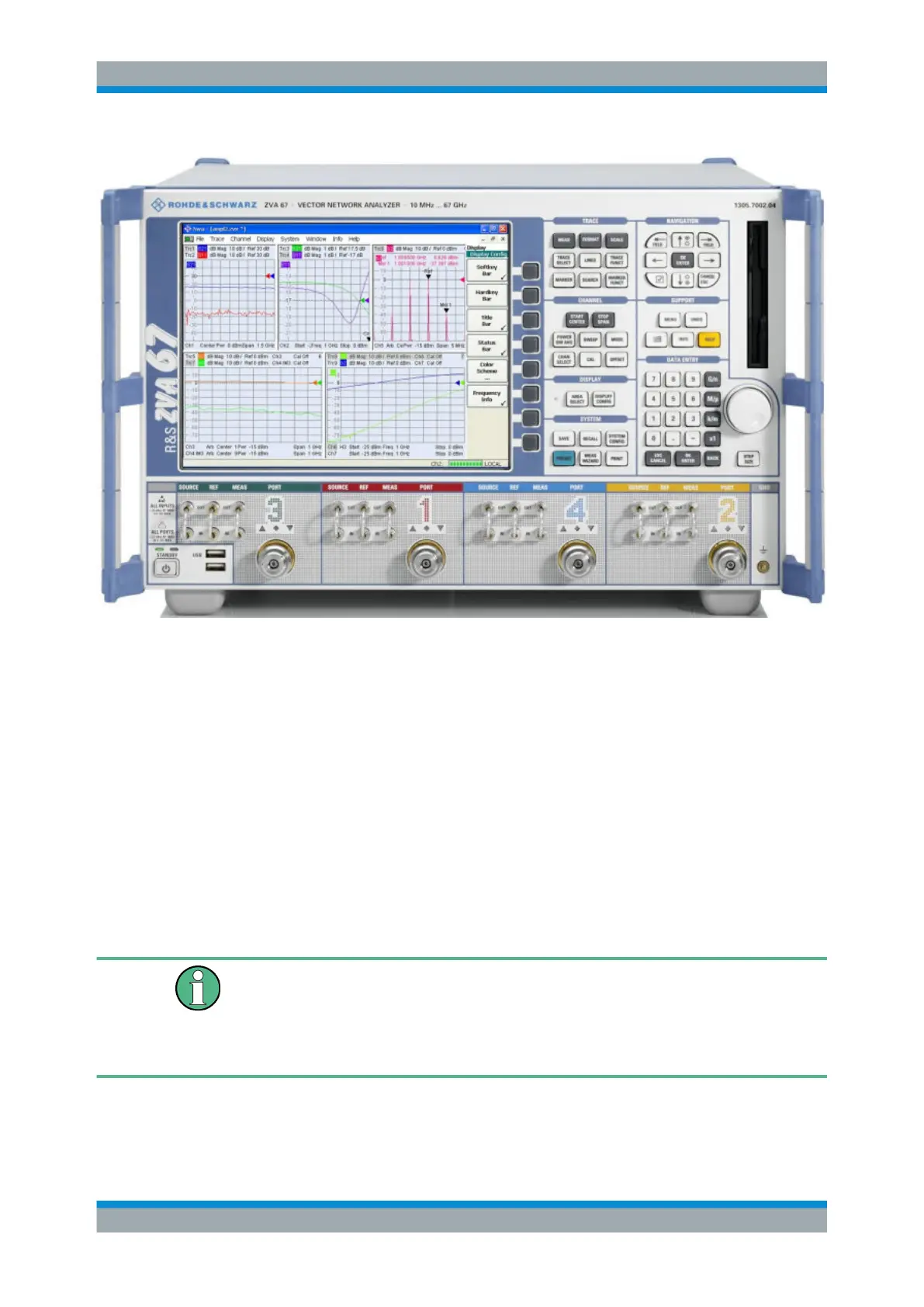

Fig. 1-1: R&S ZVA front view
1.1.1 Display
The analyzer is equipped with a color display providing all control elements for the
measurements and the diagram areas for the results.
●
Refer to chapter 3.2.1, "Navigation Tools of the Screen", on page 50 to learn how
to use menus, keys and softkeys.
●
Refer to chapter 3.2.2, "Display Elements in the Diagram Area", on page 55 to
obtain information about the results in the diagram area.
●
Refer to section "Display Menu" in the help system and learn how to customize the
screen.
●
Refer to the data sheet for the technical specifications of the display.
Screen saver
The screen saver function of the operating system switches off the display if the ana-
lyzer receives no command for a certain time. It is switched on again if any front panel
key is pressed. Use the Windows control panel to change the screen saver properties
(press the Windows key in the SUPPORT keypad to access the Start menu).
