3.6SeaTalkconnection
ConnectionstoSeaTalkequipmentaremadeusingthesupplied
multi-cable.

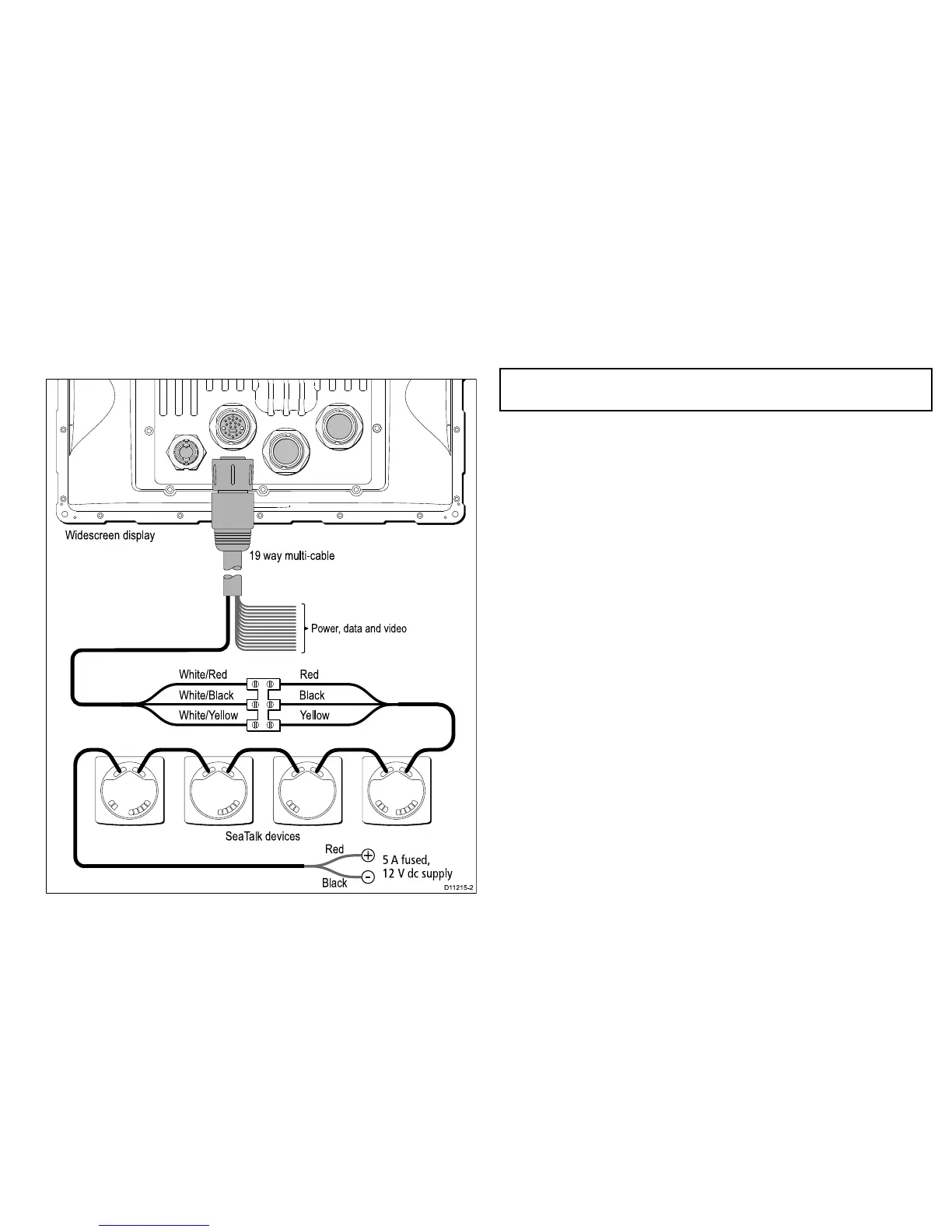

Widescreen display
19 way multi-cable
D112 15 -2
White/Red
White/Black
White/Yellow
Black
Black
Red
Red
Yellow
5 A fused,
12 V dc supply
SeaTalk devices
Power, data and video
SeaTalkcable
ForSeaTalkcablesandextensions,useRaymarineSeaT alkcable
accessories.
Note:PowertoSeaT alkinstrumentsisnotprovidedbythe
display.
Cablesandconnections35
