3.SeaTalk
ng
toDeviceNetadaptorcable
4.NMEA2000equipment

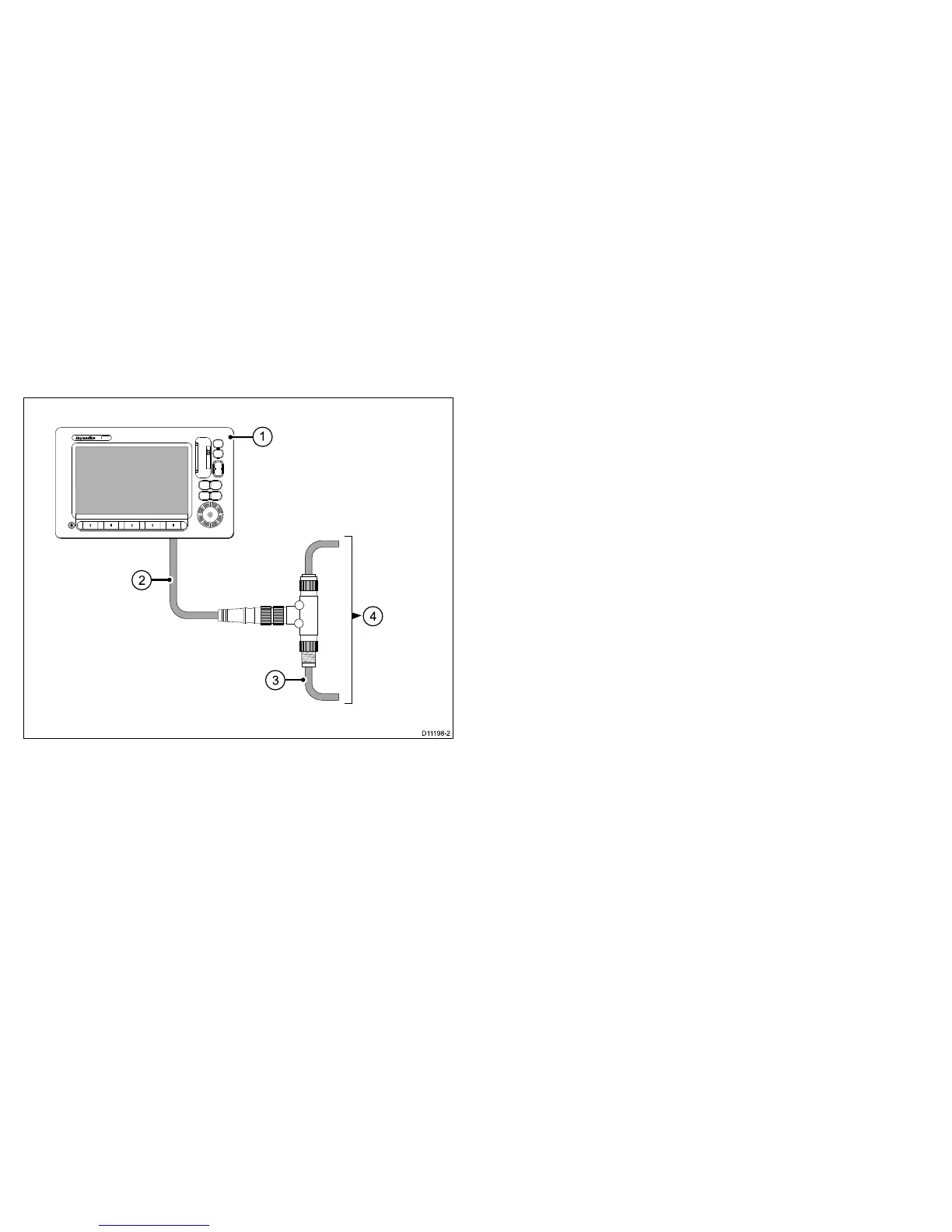

ConnectingthedisplaytoanexistingNMEA2000(DeviceNet)
backbone
D11198-2
2
3
4
1
1.Display
2.SeaTalk
ng
toDeviceNetadaptorcable
3.DeviceNet
ng
backbone
4.NMEA2000equipment
3.13Videoandalarmaudioconnection
Thedisplaysupportsconnectionofupto4videodevicesand
anexternalmonitor.Italsoprovidesanalarmaudiooutputfor
connectiontotheship’saudiosystem.
42
E-SeriesWidescreeninstallation
