3.11SeaTalk
ng
connections
ThedisplaycanconnectaspartofaSeaTalk
ng
network.
ThedisplaycanuseSeaTalk
ng
tocommunicatewith:
•SeaT alk
ng
instruments(e.g.ST70)
•SeaT alk
ng
autopilots(e.g.ST70withSmartPilotSPXcourse
computer)

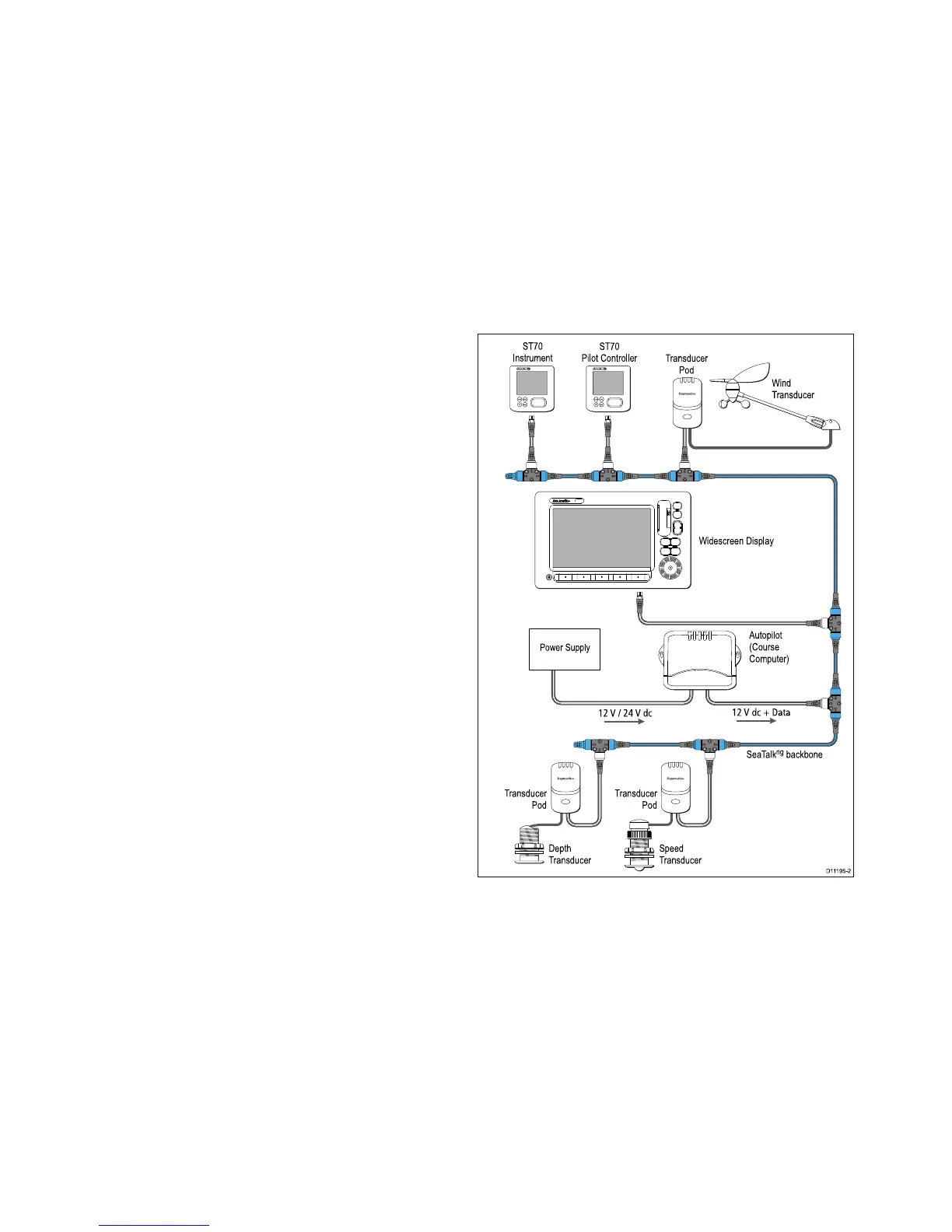

TypicalSeaTalk
ng
system
Widescreen Display
Depth
Transducer
Speed
Transducer
Wind
Transducer
Transducer
Pod
Transducer
Pod
ST70
Instrument
ST70
Pilot Controller
Transducer
Pod
Autopilot
(Course
Computer)
12 V / 24 V dc
12 V dc + Data
D11195-2
ENTERCANCEL
MENU
ENTERCANCEL
MENU
Power Supply
SeaTalk
ng
backbone
40E-SeriesWidescreeninstallation
