Raymarine Ray240 User Manual

Chapter 2: Operations 21
Chapter 2: Operations
2.1 Introduction
This chapter shows you how to operate the controls of the Ray240 and use it to
make the common Digital Selective Calling (DSC) calls. There are many other
useful functions accessed through the Menus, which are listed in detail at the end
of this chapter.
Using the radio is simple. All of the functions, except adjusting the active speaker
volume are controlled from the handset.
Note: Differences for the European versions of the radio are shown in brackets in the text.
2.2 Using the handset - the controls
How do I
....power the radio On and Off?
Power ON

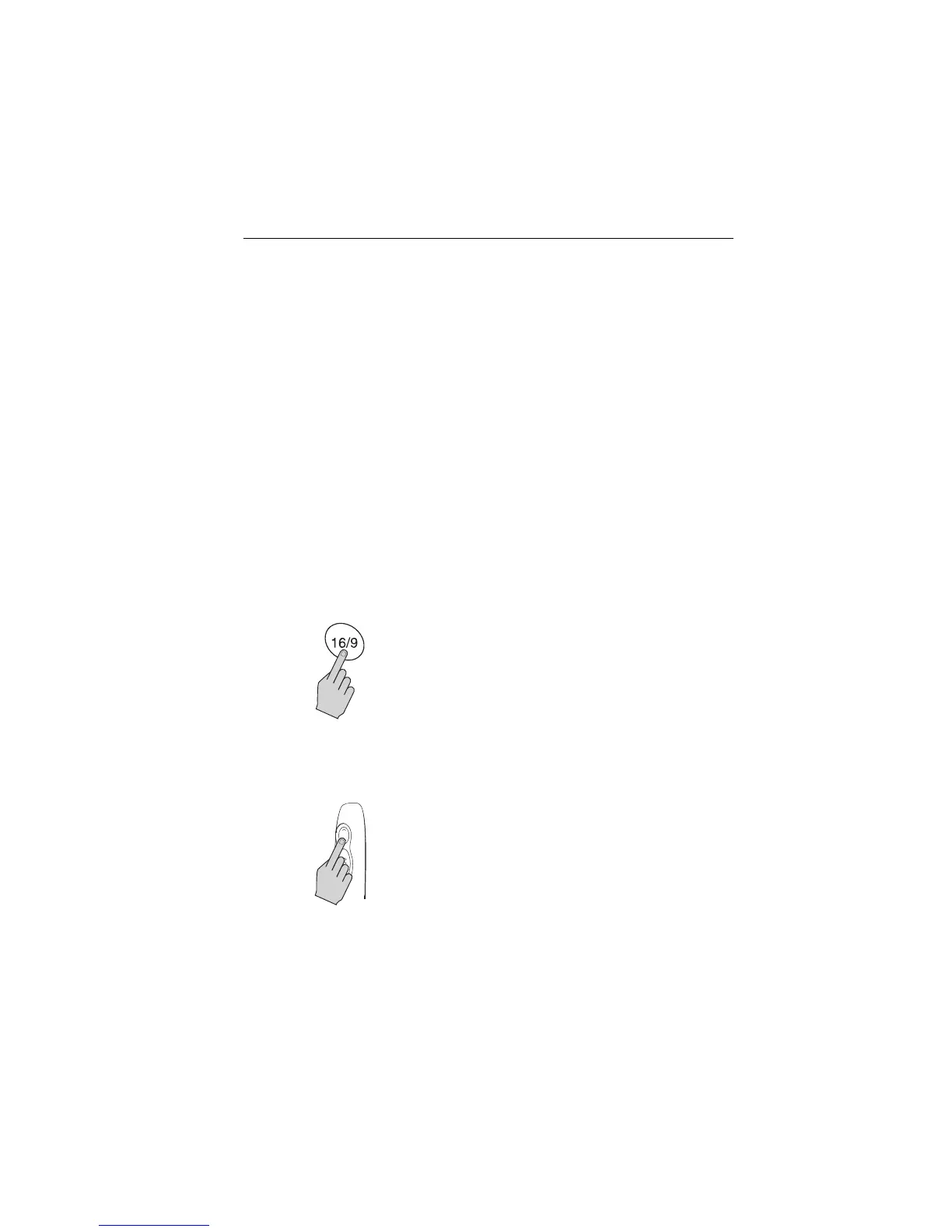

PRESS the 16/9 (16) button to turn on the radio.
Power OFF
PRESS and HOLD the 16/9 (16) button for 5 seconds.
After a five second countdown the radio powers off.
....adjust the handset volume?
PRESS the volume key on the side of the handset to adjust the
handset volume up or down. Each press of the key raises or lowers
the volume by one level.
Note: It is not possible to adjust the volume while the radio is in ‘Menu’
mode.
D6744_1
VOL
D6745_1
