18 SmartPilot Series Commissioning Guide

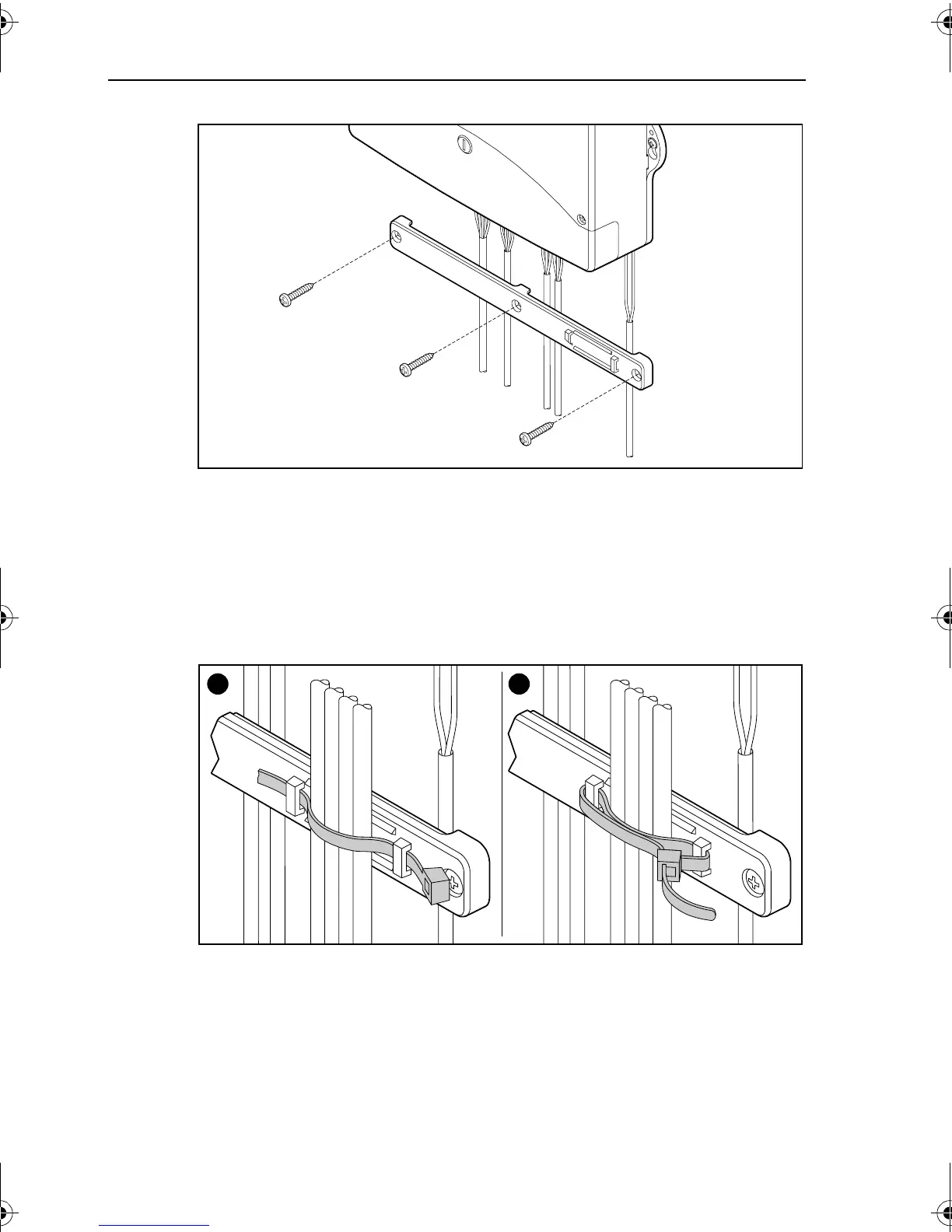

4. Secure the cable clamp using the self-tapping screws supplied
(No 8 x
3
/
4
in, pan-head), making sure:
• the tie-wrap securing loops are on the right (below the
POWER and
MOTOR terminals on the computer)
• the clamp securely holds all cables
• the legs on cable clamp do not pinch any of the cables
Note: If the power and/or motor cables are larger than 5 mm (
1
/
4
in) diameter, secure them
on top of the cable clamp with the tie-wrap supplied. Make sure the tie-wrap sits above the
cables (as shown below), so it pulls the cables against the clamp when tightened.
D6380-1
D6381-1
1 2
81273_1.book Page 18 Thursday, November 10, 2005 8:25 AM

Raymarine SmartPilot ST6001 Specifications

General

Display Type	LCD
Control Type	Keypad
Power Supply	12V DC
Keypad	Yes
Waterproof Rating	IPX6
Interface	NMEA 0183
Type	Autopilot Controller
Compatibility	Raymarine autopilot systems
