Chapter 3: Installation 19
2. Apply the surface mount template (supplied at the rear of this hand-
book)to the selected location and mark thecentresfor the fixing studs
(1) and the aperture (3) that will take the rear casing of the instrument.
3. Drill out the two 5 mm fixing stud clearance holes (2).
4. Cut out the clearance hole (3) then remove the template.
5. Peel off the protective sheet from the self-adhesive gasket (4) then
stick the gasket into position on the rear of the instrument.
6. Screw the two fixing studs into the threaded sockets on the rear of the
instrument.
7. Mount the assembled instrument, studs, bezel and gasket into the
panel. Secure from behind with the thumb nuts (5).
Flush mounting
The Flush Mounting Kit uses a low-profile bezel to reduce the fitted
profile of the instrument, to approximately 6 mm above the panel fascia.
D4343-2

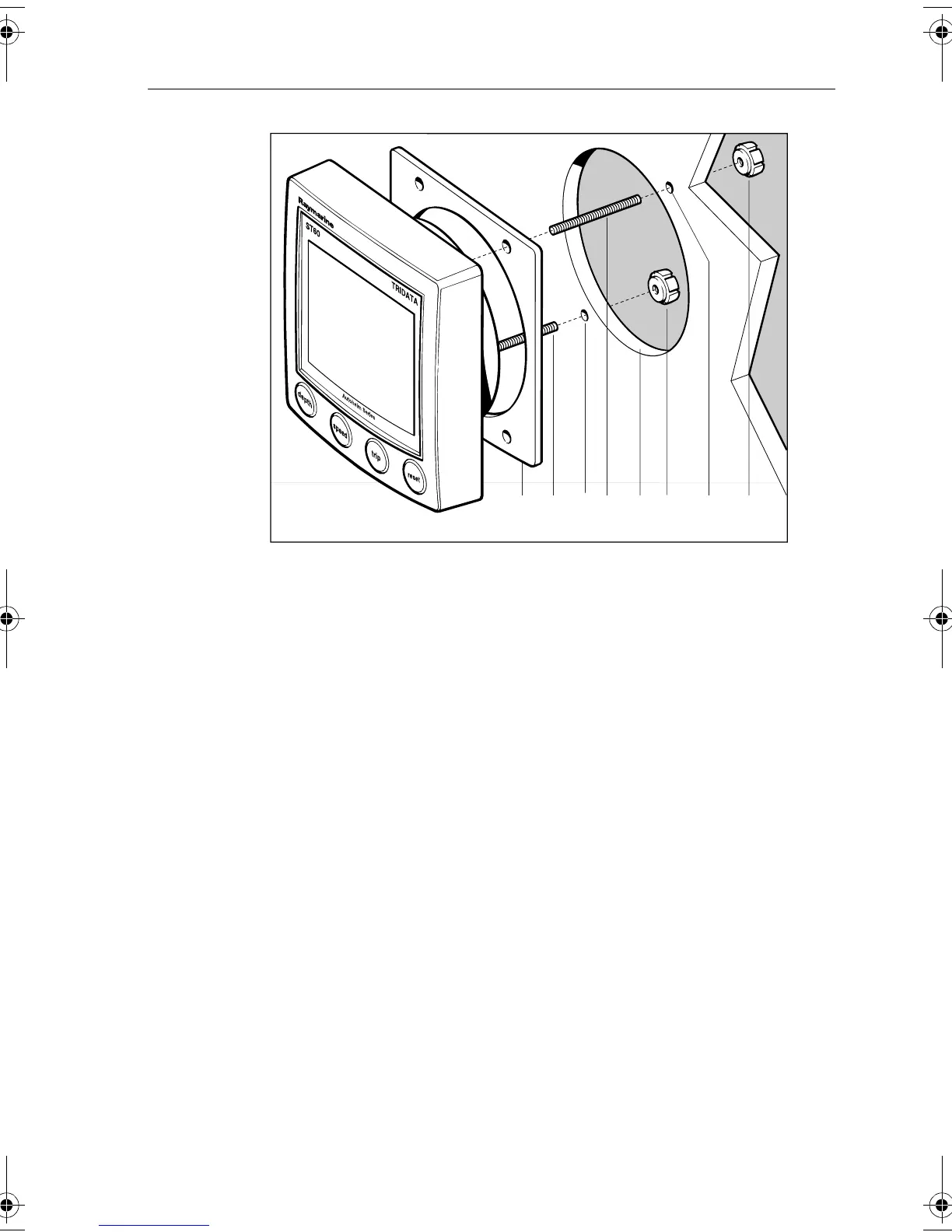

Surface mounting
11223455
81040_1.book Page 19 Thursday, November 7, 2002 10:21 AM
