Calibration 29
Depth
To calibrate the depth functions:
1. With the User calibration entry screen displayed, press the
depth key.
2. Referringto the User calibration - depth illustration, carry out thecal-
ibration procedure. Use the
depth keytocyclefromscreentoscreen
and the
trip and reset keys to set the required values at each screen.
Depth units
You can set either FEET or METRES.
Depth offset
WARNING:
The use of incorrect offset values could result in misleading
depth information being displayed with a consequent risk
of running aground.
Depths are measured from the transducer to the sea bed. However, you
can use the depth offset screen to apply offsets to this distance, so that the
displayed depth reading represents either the depth from the keel or the

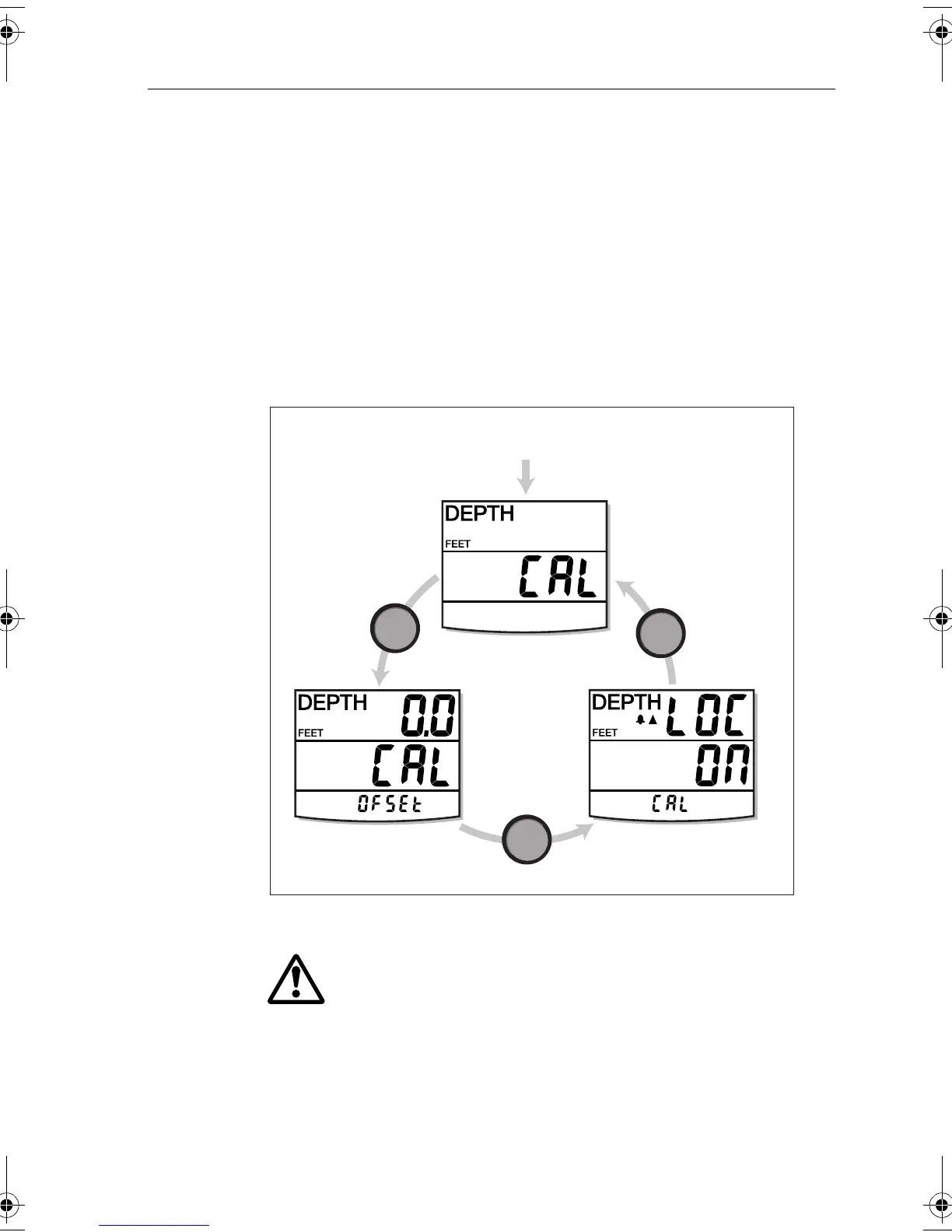

User calibration - depth
From User calibration
start screen
depth
depth
depth
Set depth
units
Set depth
offset
Shallow
alarm lock
D4417-1
