RCA DRC8335 User Manual

6

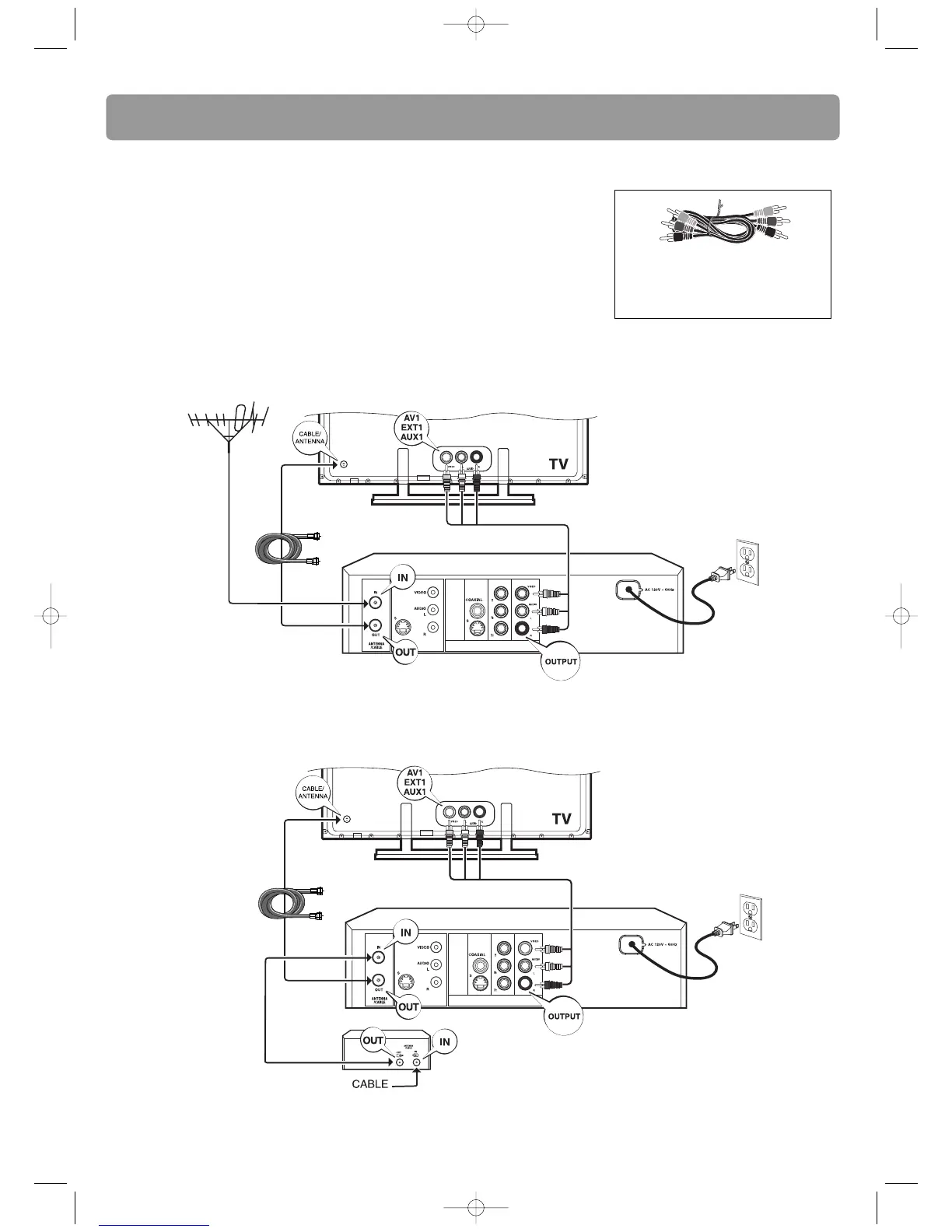

Connections
DVD/VCR + TV
DVD/VCR + TV + basic cable box
INPUT
OUTPUT
Cb/
Cr/
INPUT
OUTPUT
Cb/
Cr/
DVD/VCR
3. Audio Video cables
3. Audio Video cables
4. AC120
60Hz
4. AC120
60Hz
1. Cable box
2. RF coaxial cable*
1. Antenna
DVD/VCR
2. RF coaxial
cable*
Connecting your unit
The RF coaxial cable supplied with this unit is only for passing the antenna signal to
the TV.
1. To use your new DVD/VCR player and recorder, you MUST connect the unit to the
TV with the supplied audio video cables (color-coded red, white and yellow) in
addition to the antenna cable.
2. Turn on the TV and tune it to the correct Video Input Channel (if you do not know
how to access the video input channel on your TV, refer to “Initial Setup” on page
12 for help). For more details about connecting to different types of equipment
and connection possibilities, refer to page 6-7.
These are the audio/video cables.
The yellow cable carries the video
signal, and the red and white
cables carry the audio signal.
* This connection only lets you watch cable, antenna or satellite programs. To watch output from the unit you must connect
the Audio Video cables.
DRC8335_EN 1/16/07 3:45 PM Page 8

RCA DRC8335 Specifications

Inputs and Outputs

antenna or cable input	1
analog audio input	2 pairs
s-video input	2
composite input	2
IEEE1394 (Firewire) input	1
analog audio output (pair)	1
digital audio output (coaxial)	1
antenna output	1
component output	1
s-video output	1
composite output	1

Weight and Dimensions

weight of product	9.68 lb
weight of carton	15.84 lb
dimensions of product	16.93 x 3.94 x 13.78 in
dimensions of carton	20.43 x 7.6 x 17.28 in
