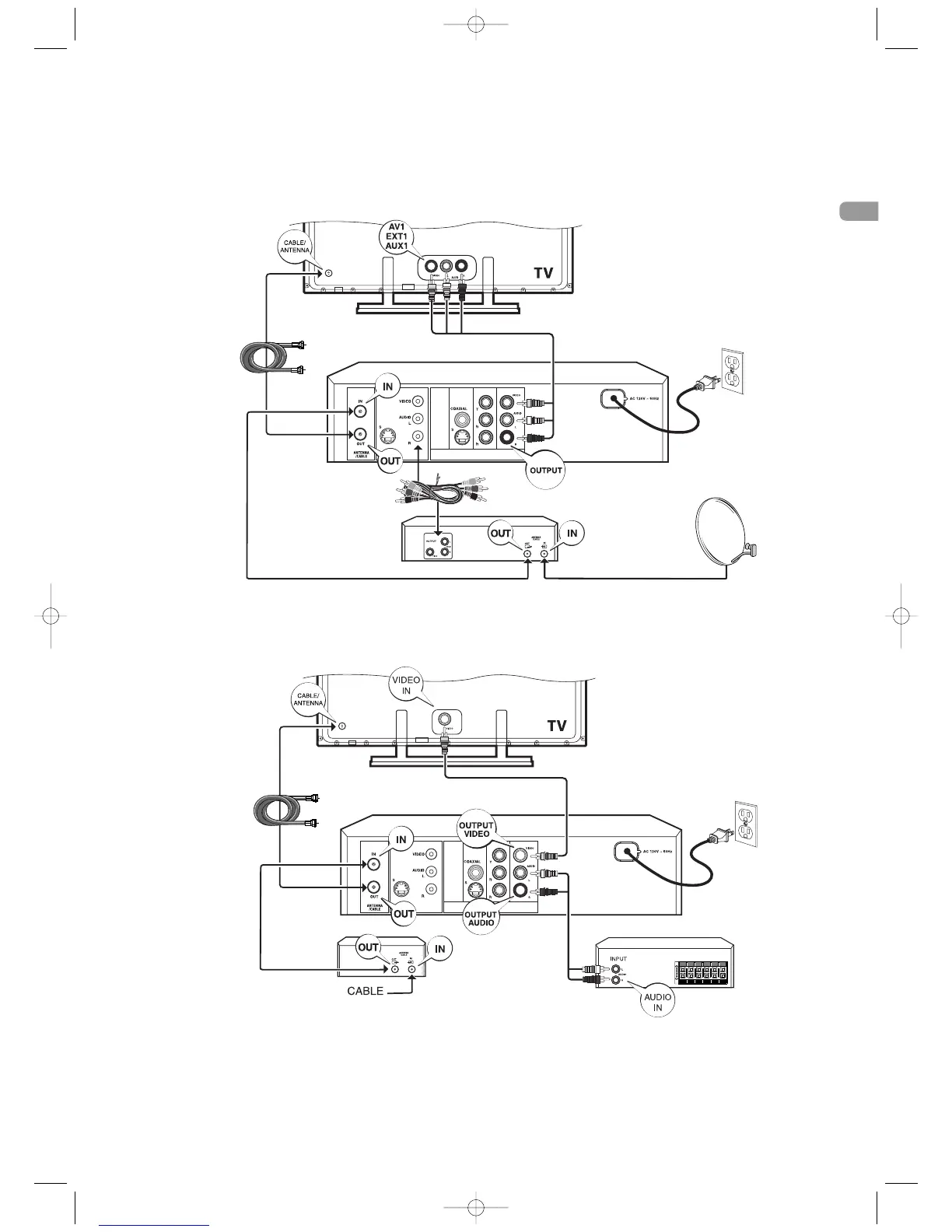

Connections
INPUT
OUTPUT
Cb/
Cr/
INPUT
OUTPUT
Cb/
Cr/
DVD/VCR + TV + satellite receiver
DVD/VCR + TV + basic cable box + audio receiver
5. AC120
60Hz
5. AC120
60Hz
DVD/VCR
DVD/VCR
3. Audio Video cables
4. Audio Video cables (not included)
1. Satellite
receiver
1. Cable box
Audio receiver
3. Video cable (yellow)
4. Audio cables
(red and white)
2. RF coaxial
cable*
2. RF coaxial
cable*
Note: graphics are for representation only and may differ from your actual units.
* This connection only lets you watch cable, antenna or satellite programs. To watch output from the unit you must connect
the Audio Video cables.
DRC8335_EN 1/16/07 3:45 PM Page 9

RCA DRC8335 Specifications

Inputs and Outputs

antenna or cable input	1
analog audio input	2 pairs
s-video input	2
composite input	2
IEEE1394 (Firewire) input	1
analog audio output (pair)	1
digital audio output (coaxial)	1
antenna output	1
component output	1
s-video output	1
composite output	1

Weight and Dimensions

weight of product	9.68 lb
weight of carton	15.84 lb
dimensions of product	16.93 x 3.94 x 13.78 in
dimensions of carton	20.43 x 7.6 x 17.28 in
