RMI-Q installation guide
2.8
RMI-Q basics

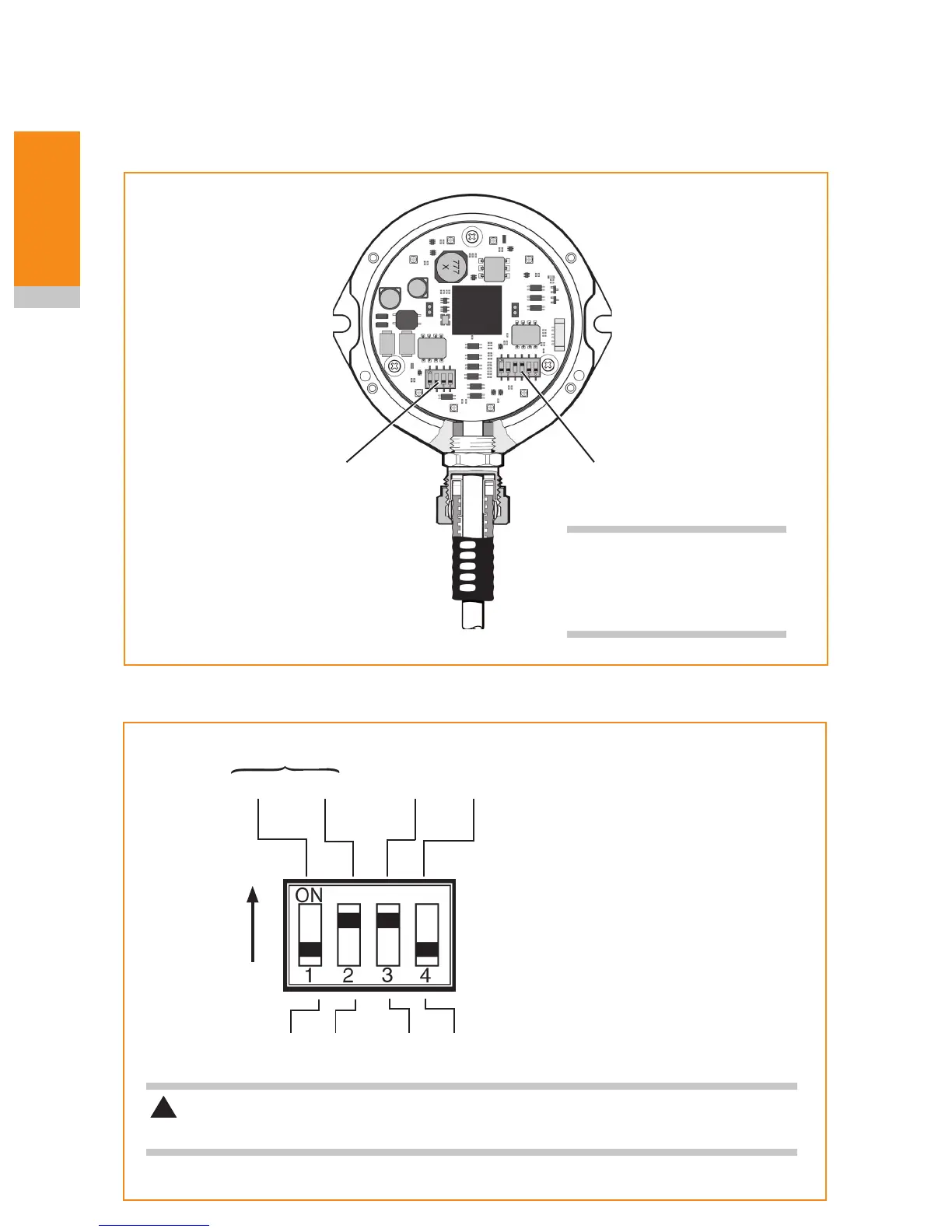

Switches SW1 and SW2
Switch SW1 output configuration
SW1
SW2
NOTE: To gain access to
the switches, remove the
front cover (see Section 4,
'Maintenance').
Factory settings are shown.
Pulsed
N/O
PROBE STATUS 1
Low
battery
N/O
Error
N/O
N/CN/C
N/C
Level
ON
CAUTION: Exercise caution when using error or probe SSR in N/O mode as a wiring
fault could cause loss of error condition and therefore could result in a non-failsafe condition.
!
Abbreviations are as follows:
•
N/O = Normally Open
•
N/C = Normally Closed
