Renishaw RMI-Q Installation Guide

2.9
RMI-Q basics
Pulsed
Normally
high
PROBE STATUS 2a/2b
Level
Dedicated
start
Seated
start on
Seated
start off
0.5 s
turn on
Standard
turn on
Common
start
Pulsed
Level
MACHINE START
Normally
low

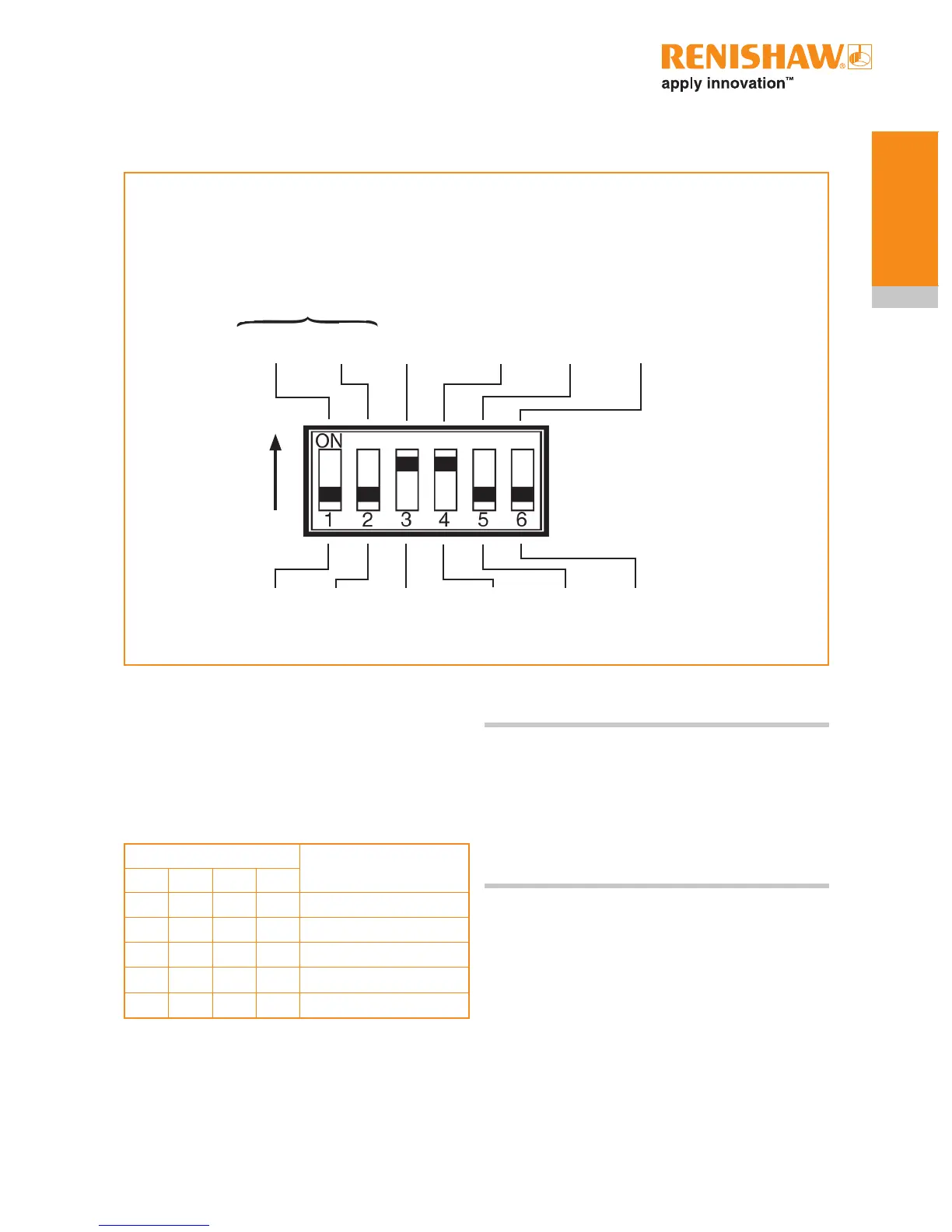

Switch SW2 output configuration
Factory settings are shown.
ON
Dedicated start (level mode)
In dedicated start, a machine start input is
required per probe that is configured for radio turn
on.
Machine start inputs
Probe selected
P1 P2 P3 P4
None
Q
Probe 1 on
Q
Probe 2 on
Q
Probe 3 on
Q
Probe 4 on
Q
Machine start input active. Any attempt to turn on more
than one probe simultaneously will result in an error
condition
NOTES :
Level start mode is not compatible with RMPs
configured for radio M code on/time out off.
For RMI compatibility mode, ensure poles 4 and 6
are in the down position and set other poles to the
required configuration.
