3.7
System
installation

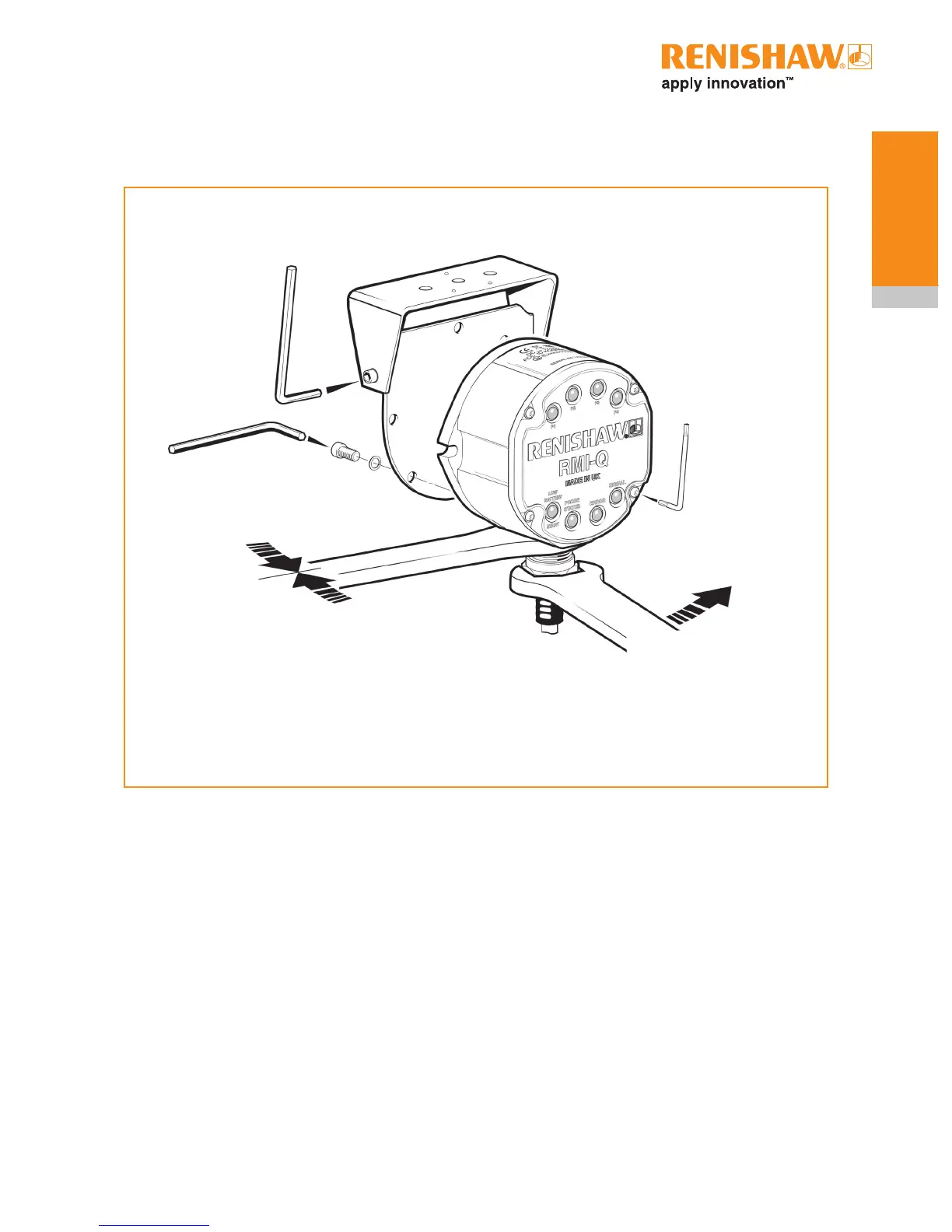

Screw tor
que v
alues
3 mm AF
2 Nm
(1.47 lbf
.
ft)
4 mm AF
5.1 Nm
(3.76 lbf
.
ft)
HOLD
19 mm AF
T10 tamper
proof
1.0 Nm (0.74 lbf
.ft)
22.0 mm AF (7/8 AF)
Conduit adaptor to RMI-Q body 7 Nm (5.16 lbf
.ft)
Rear e
xit plug (not shown) 5 Nm (3.69 lbf
.ft)
30
32
Table of Contents
Default Chapter
3
Table of Contents
3
Before You Begin
5
Disclaimer
5
Trademarks
5
Warranty
5
Changes to Equipment
5
CNC Machines
5
Care of the RMI-Q
5
RMP Probe Family
6
Patents
6
EC Declaration of Conformity
7
WEEE Directive
7
FCC Information to the User (USA Only)
7
Radio Approval
8
Radio Equipment - Canadian Warning Statements
8
Radio Approvals
8
Safety
9
RMI-Q Basics
11
Introduction
11
Power Supply
11
Input Voltage Ripple
11
RMI-Q Visual Diagnostics
12
P1, P2, P3, P4 SYSTEM STATUS Leds
13
Low Battery / Start Led
13
Probe Status Led
13
Error Led
13
Signal Led
13
RMI-Q Inputs
14
RMI-Q Output Waveforms
16
RMI-Q Seated Start Option
17
Switches SW1 and SW2
18
Switch SW1 Output Configuration
18
Switch SW2 Output Configuration
19
Remote External Audible Output
21
RMI-Q Dimensions
22
RMI-Q Specification
23
System Installation
25
Mounting Bracket (Optional)
25
Wiring Diagram (with Output Groupings Shown)
26
RMP - RMI-Q Partnership
27
To Partner the RMP with the RMI-Q
27
To Partner up to Four Rmps with the RMI-Q Without Renikey
28
Partnering Rmps Using Renikey (Recommended)
29
Removing the RMP from the RMI-Q
29
Changing RMP Position
29
RMI-Q Cable
30
Cable Sealing
30
Fitting Flexible Conduit
30
Screw Torque Values
31
Maintenance
33
RMI-Q Cover
33
Removing the RMI-Q Cover
33
Replacing the RMI-Q Cover
34
Side Exit to Rear Exit Cable Conversion
34
Fault Finding
35
Parts List
37
