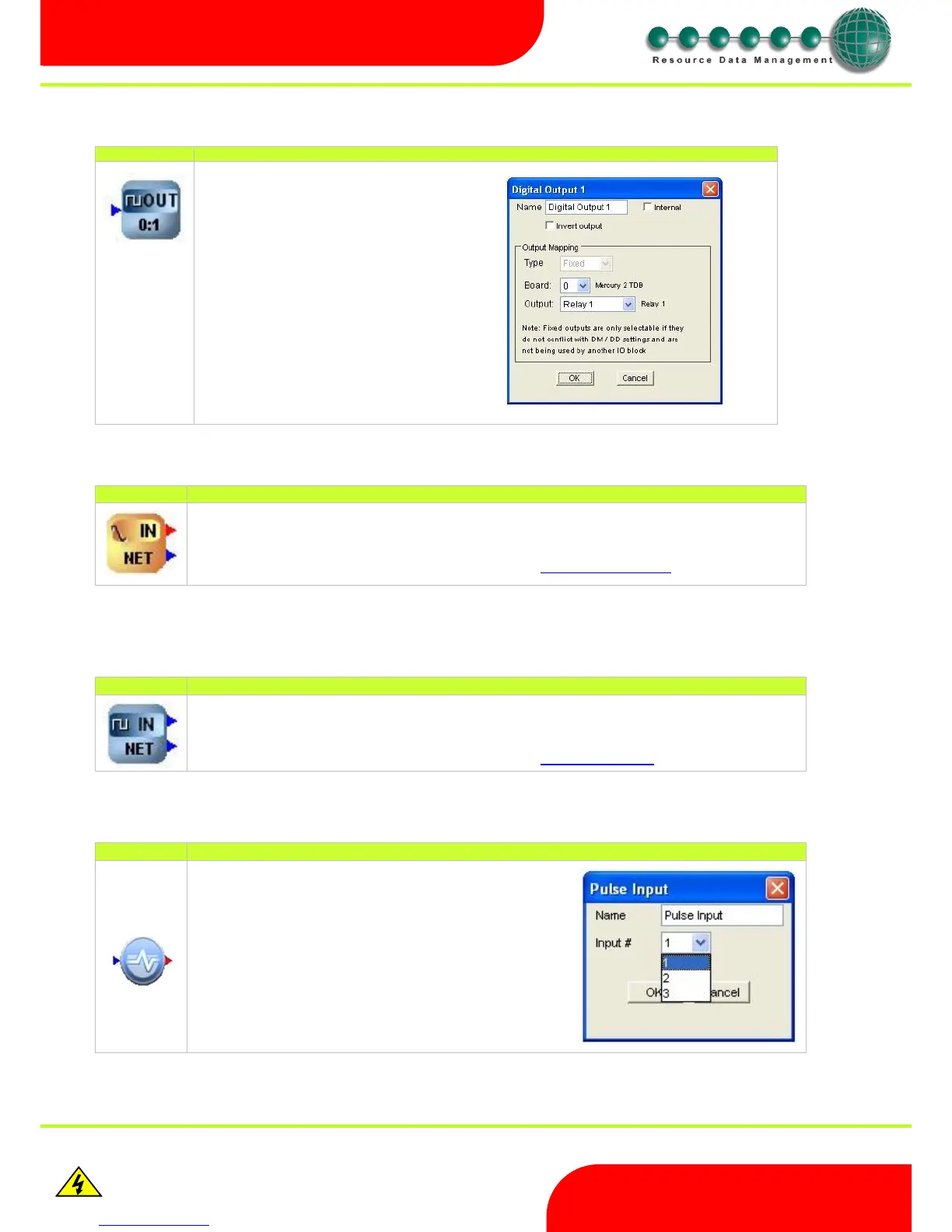

Digital Output
Icon
Properties
Output: Select which output is to be used
from the drop-down menu
Tick the invert output box to invert the relay
operation
Network Analogue In
Icon
Properties
Network Analogue inputs can be used to map analogue values from a Data Builder program running on a Data
Manager to an Intuitive Mercury TDB controller
Please see the following section that outlines the setup process. – Network Analogue Inputs
Network Digital In
Icon
Properties
Network digital inputs can be used to map digital values from a GP Timer or a Data Builder program, running on a
Data Manager, to an Intuitive Mercury TDB controller
Please see the following section that outlines the setup process. – Network Digital Inputs
Pulse Input
Icon
Properties
Pulse input blocks are used to pick-up pulse counts from
any one of the 3 Pulse Reader Daughter Card inputs.
Select 1 of the 3 channels and give the block a meaningful name.
The red analogue output is the channel count value.
The digital Input, when activated resets the channel count to 0.
