FIGURE 71
FAULT MESSAGE (IF ANY) (MAIN LIMIT OPEN) DISPLAYED.
3. The
Fault Status
screen will
appear with a description of
the current fault (if any). Use
the section of this manual
titled
FURNACE FAULT
CODES EXPANDED WITH
DESCRIPTIONS AND
SOLUTIONS
for a full expla-
nation of the fault and possi-
ble solution(s). To escape
from this menu, press the
Enter
(to return to the fur-
nace user menus) or
Home
button or just wait a few min-
utes and the main screen will
appear again.
TIPS FOR NAVIGATING FURNACE
USER MENUS USING THE (-)HC-
TST550CMMS THERMOSTAT
(-)HC-TST550CMMS FULL
COLOR, PROGRAMMABLE
COMMUNICATING THER-
MOSTAT
Viewing Furnace Fault
Messages with the (-)HC-
TST550CMMS Thermostat
To enter a particular user menu on
the (-)HC-TST550CMMS, full color
communicating thermostat follow the
directions below.

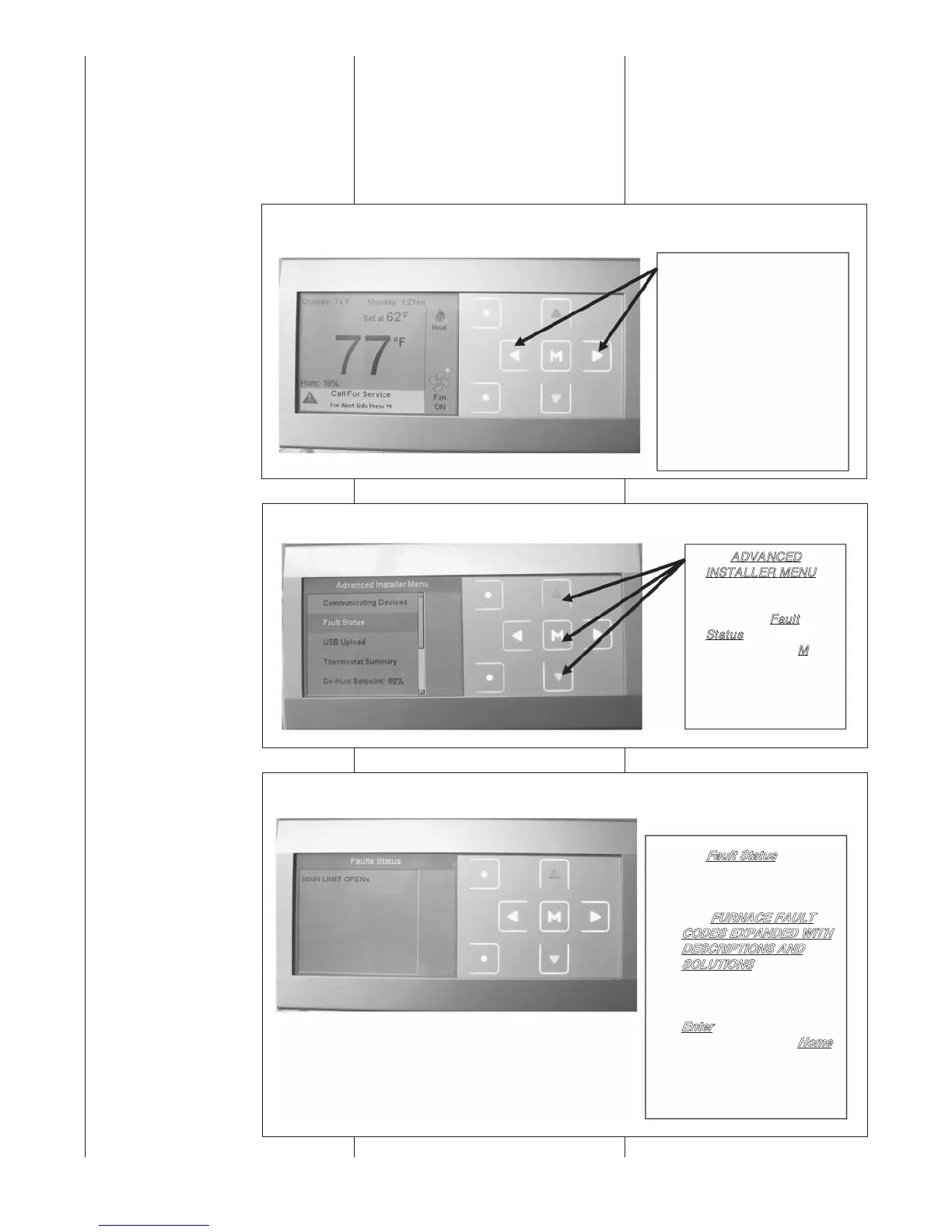

FIGURE 69
ENTER THE ADVANCED INSTALLER MENUWIRING DIAGRAM
–
COMMUNICATING CONFIGURATION
FIGURE 70
SELECT FAULT STATUSIRING DIAGRAM
–
COMMUNICATING CONFIGURATION
1. From the main screen, press
the left and right arrow keys
together at the same time for
at least 3 seconds. The next
screen below will appear.
(Note that Call for Service
appears at the bottom of the
screen. This is an indicator
that the fault messages
should be viewed to deter-
mine the cause of the fault.)
2. The
ADVANCED
INSTALLER MENU
is
displayed. Use the up
and down arrow keys
to highlight
Fault
Status
.
Next, press the “
M
”
key. The next screen
below will appears
Home
Enter
Home
Enter
To Next Page
