OUTDOOR UNIT ROMH24AFXZJ

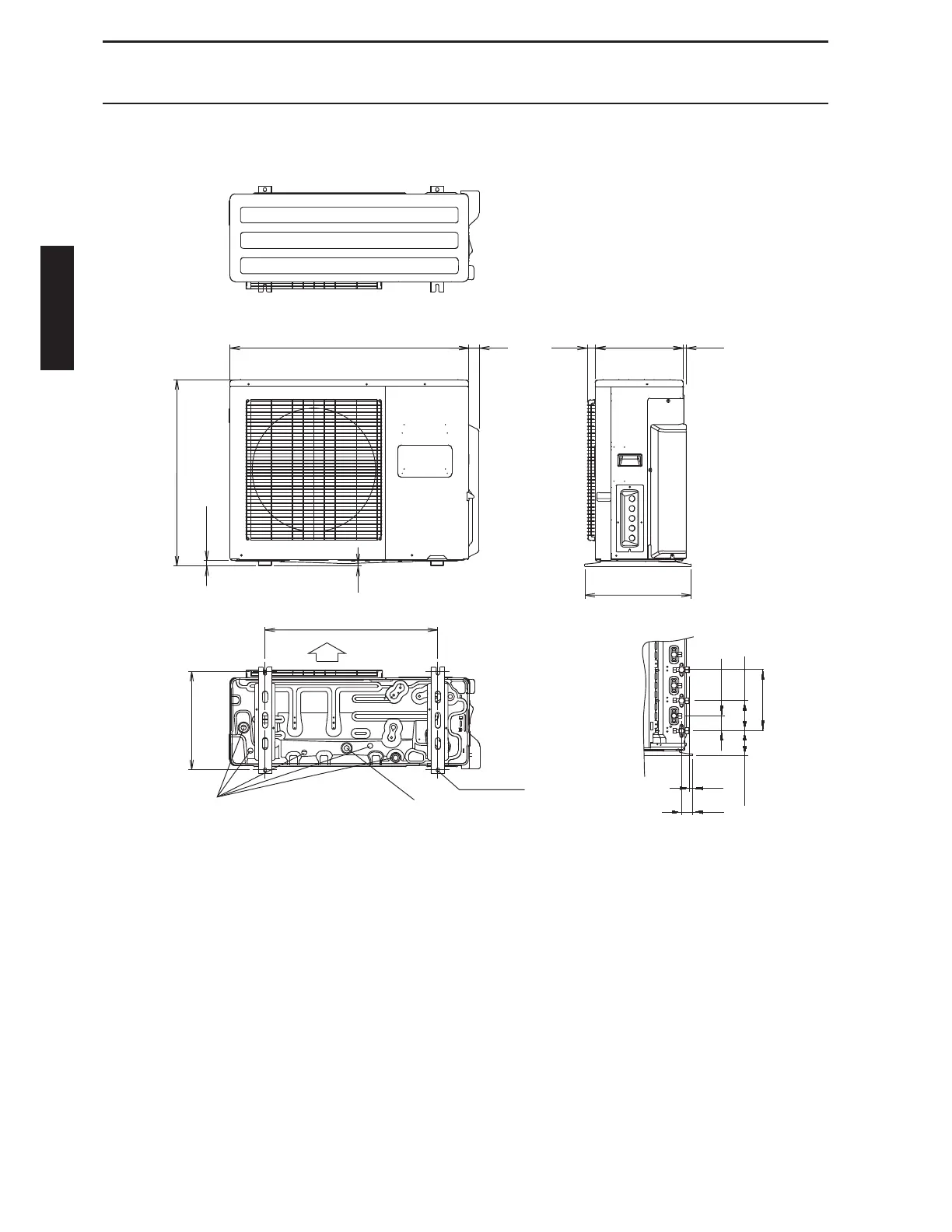

2. Dimensions
2-1. Model: ROMH24AFXZJ
Unit: in (mm)
2/1-4
)411(
)822( 9
4/1-2
)75(
1/2
(12)
3-11/16 (94)
1-5/8
(41)
Top view
Front view
Side view
35-7/16 (900)
27-9/16 (700)
13/16 (21)
3/8
(9)
1-9/16
(40)
1-1/4
(31)
1/2
(12)
13 (330)
15-3/4 (400)
Bottom view
14-7/8 (370)
25-9/16 (650)
4-Ø1/2 (Ø12)
Drain cap mounting places Drain pipe mounting places
Airflow
