Ricoh Aficio MP 171 User Manual

Various Scan Settings
108
6

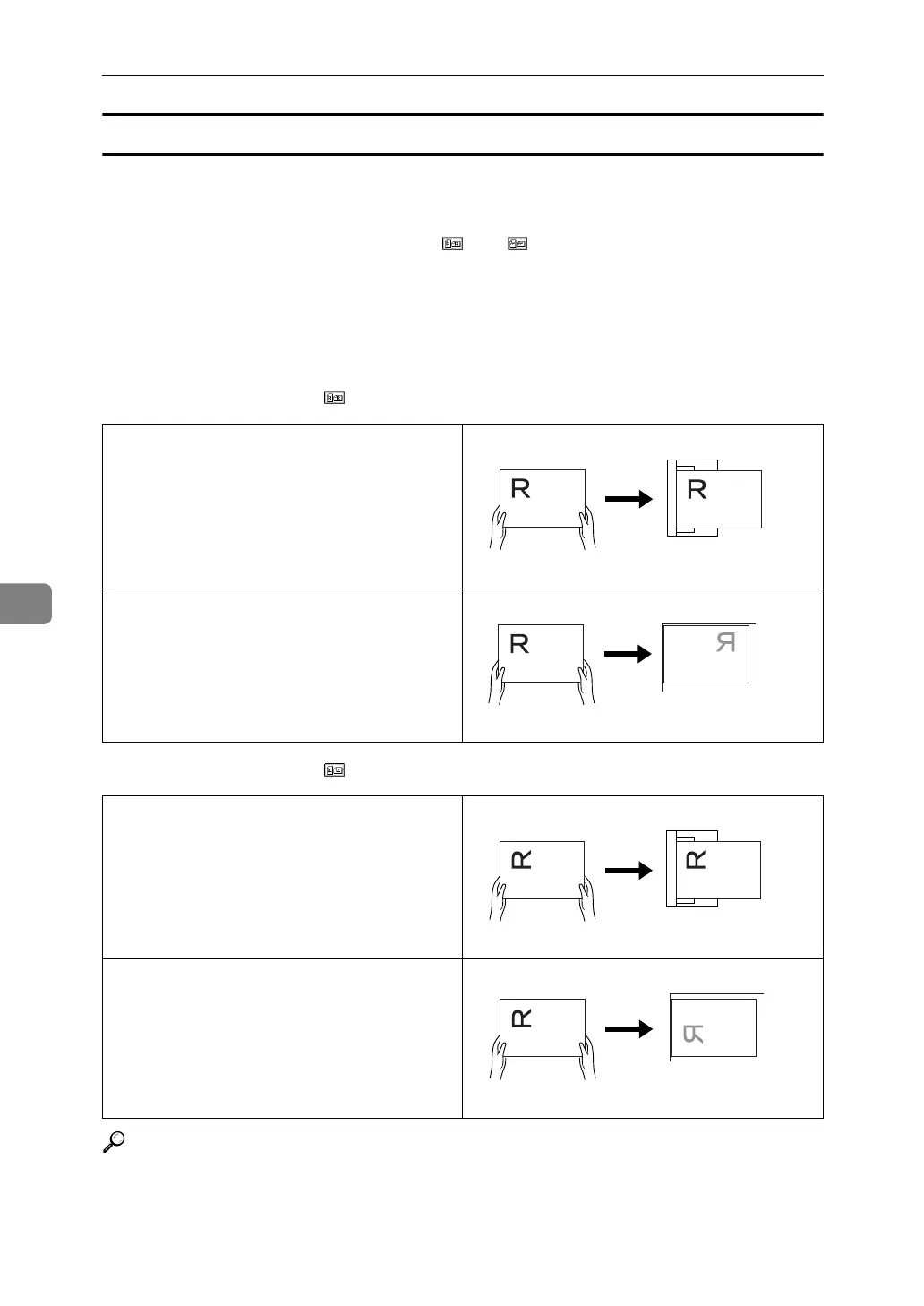

How to set originals to scan them by custom size
This section explains how to place originals you want to scan at Custom size.
❖ Original orientation setting
Under [Original Orientation], select [] or [] according to the orientation of
your original. To display [Original Orientation], on the initial scanner screen,
press [Original Feed Type]. For details, see "Setting of Original Feed Type".
❖ Placing an original
Place originals face up in the ADF; face down on the exposure glass.
❖ Original Orientation is []
❖ Original Orientation is []
Reference
p.112 “Setting of Original Feed Type”
Placing an original in the ADF
Placing an original on the exposure glass
Align the original, turn it rightward or left-
ward, and then place it face down on the expo-
sure glass.
Placing an original in the ADF
Placing an original on the exposure glass
Turn the original over, place it face down on
the exposure glass, and then align it with the
top left corner of the exposure glass.
ALQ017S
ALQ018S
ALQ019S
ALQ020S

Ricoh Aficio MP 171 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Print Speed	17 ppm
Print Resolution	600 x 600 dpi
Copy Speed	17 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Duplex Printing	Optional
Interface	USB 2.0
