7. Ethernet port
Use a network interface cable to connect the printer to a network.
8. Handle
Hold this handle when pulling out the controller board.

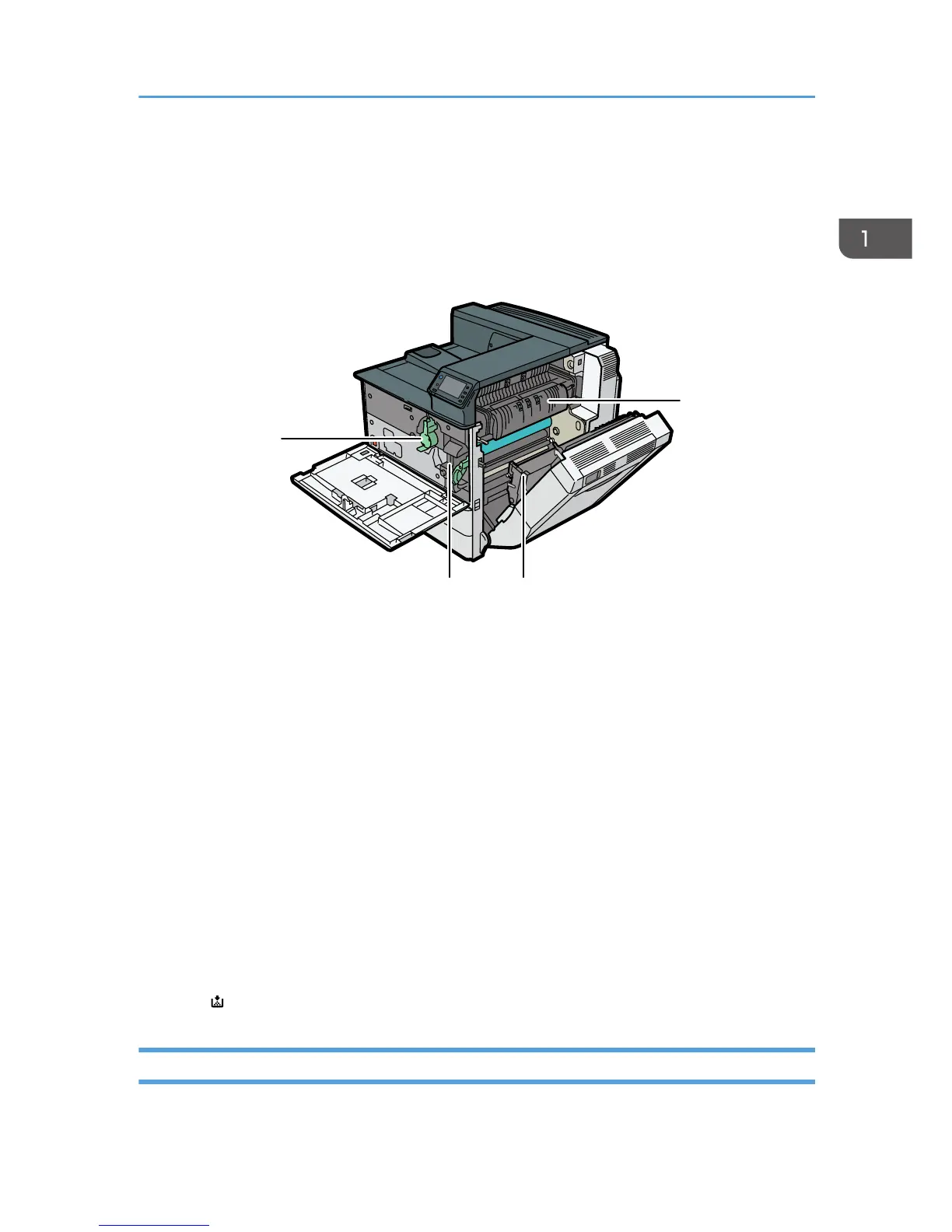

Interior
1. Fusing unit
Replace the fusing unit when the following message appears:
• "Replacement of Maintenance Kit B is now necessary. Replace Maintenance Kit B."
The fusing unit is included in Maintenance Kit B.
2. Transfer unit
Replace the transfer unit when the following message appears:
• "Replacement of Maintenance Kit B is now necessary. Replace Maintenance Kit B."
The transfer unit is included in Maintenance Kit B.
3. Development unit
Replace the development unit when the following message appears:
• "Replacement of Maintenance Kit A is now necessary. Replace Maintenance Kit A."
The development unit is included in Maintenance Kit A.
4. Toner
Replace the toner when the following message appears:
• " No toner. Replace Toner Cartridge."
Guide to the Names and Functions of the Printer's Control Panel
This illustration shows the control panel of the printer with options fully installed.
Guide to Names and Functions of Components
