Ricoh IM 9000 User Manual

2023/05/01 14:42
Preparing the Server to Use for User Authentication | User Guide | IM 7000, IM 8000, IM 9000
https://support.ricoh.com/services/device/ccmanual/IM_7000-8000-9000-re/en-GB/security/int/server.htm
7/8
Installation of added features starts.

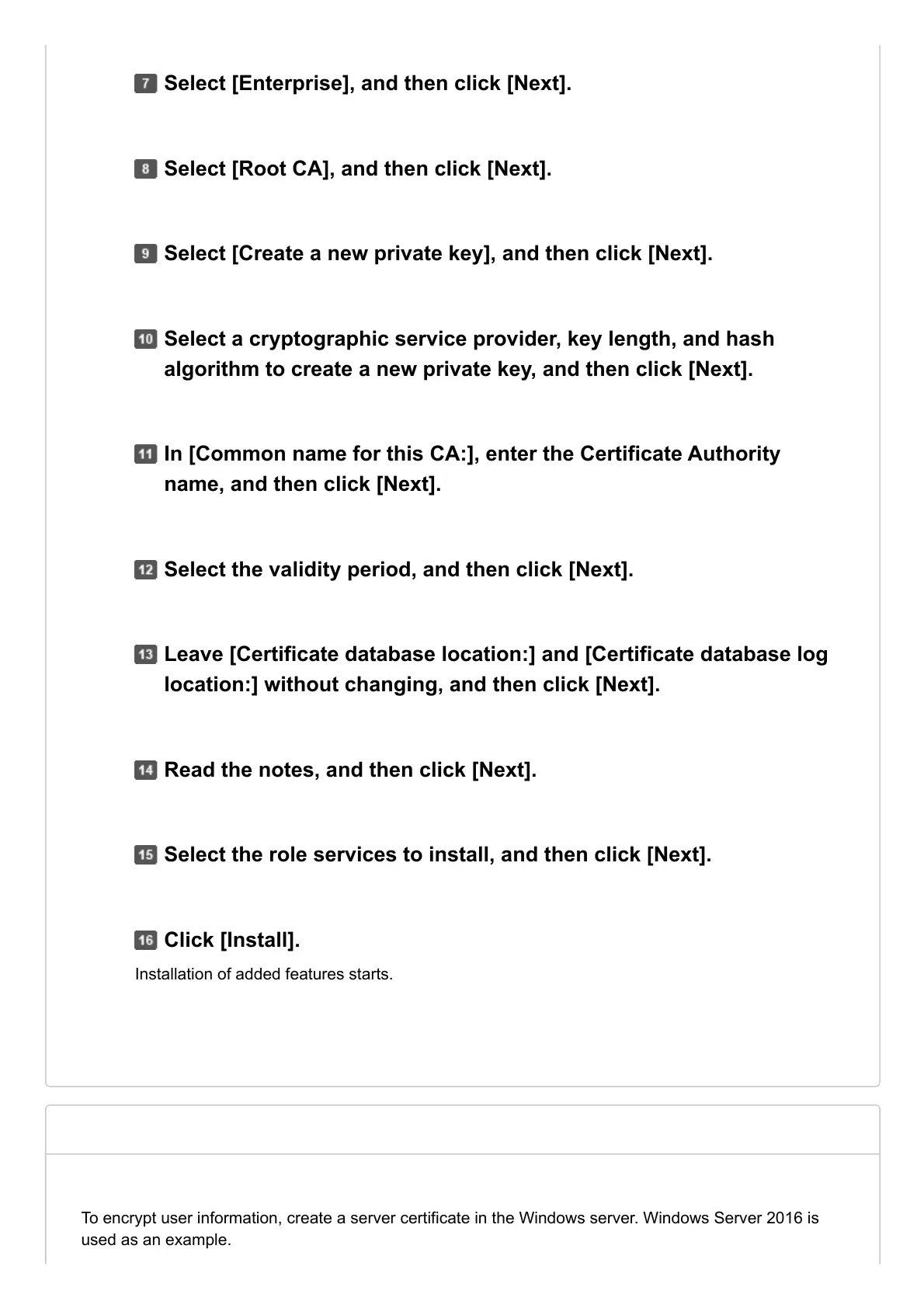

Select [Enterprise], and then click [Next].
Select [Root CA], and then click [Next].
Select [Create a new private key], and then click [Next].
Select a cryptographic service provider, key length, and hash
algorithm to create a new private key, and then click [Next].
In [Common name for this CA:], enter the Certificate Authority
name, and then click [Next].
Select the validity period, and then click [Next].
Leave [Certificate database location:] and [Certificate database log
location:] without changing, and then click [Next].
Read the notes, and then click [Next].
Select the role services to install, and then click [Next].
Click [Install].
To encrypt user information, create a server certificate in the Windows server. Windows Server 2016 is
used as an example.
Creating a Server Certificate

Ricoh IM 9000 Specifications

General

Resolution	1200 x 1200 dpi
Paper Capacity (Maximum)	8, 700 sheets
First Output Speed	3.9 seconds
Paper Input Capacity (Standard)	4, 300 sheets
Paper Weight	52 - 300 g/m²
Duplex Printing	Standard
Standard Memory	2 GB
Hard Disk Drive	320 GB
Power Source	220 - 240 V, 50/60 Hz
Maximum Paper Size	SRA3
Operating System Compatibility	Windows, Mac OS, Linux
Print Speed	90 ppm
Paper Size	A3, A4, A5, B4, B5
Processor	Intel Atom Processor Bay Trail
Network Connectivity	Ethernet 10 base-T/100 base-TX/1000 base-T, USB 2.0
