Rigol DS1000Z Series Quick Guide

RIGOL
DS1000Z Quick Guide
3
To Prepare for Operation

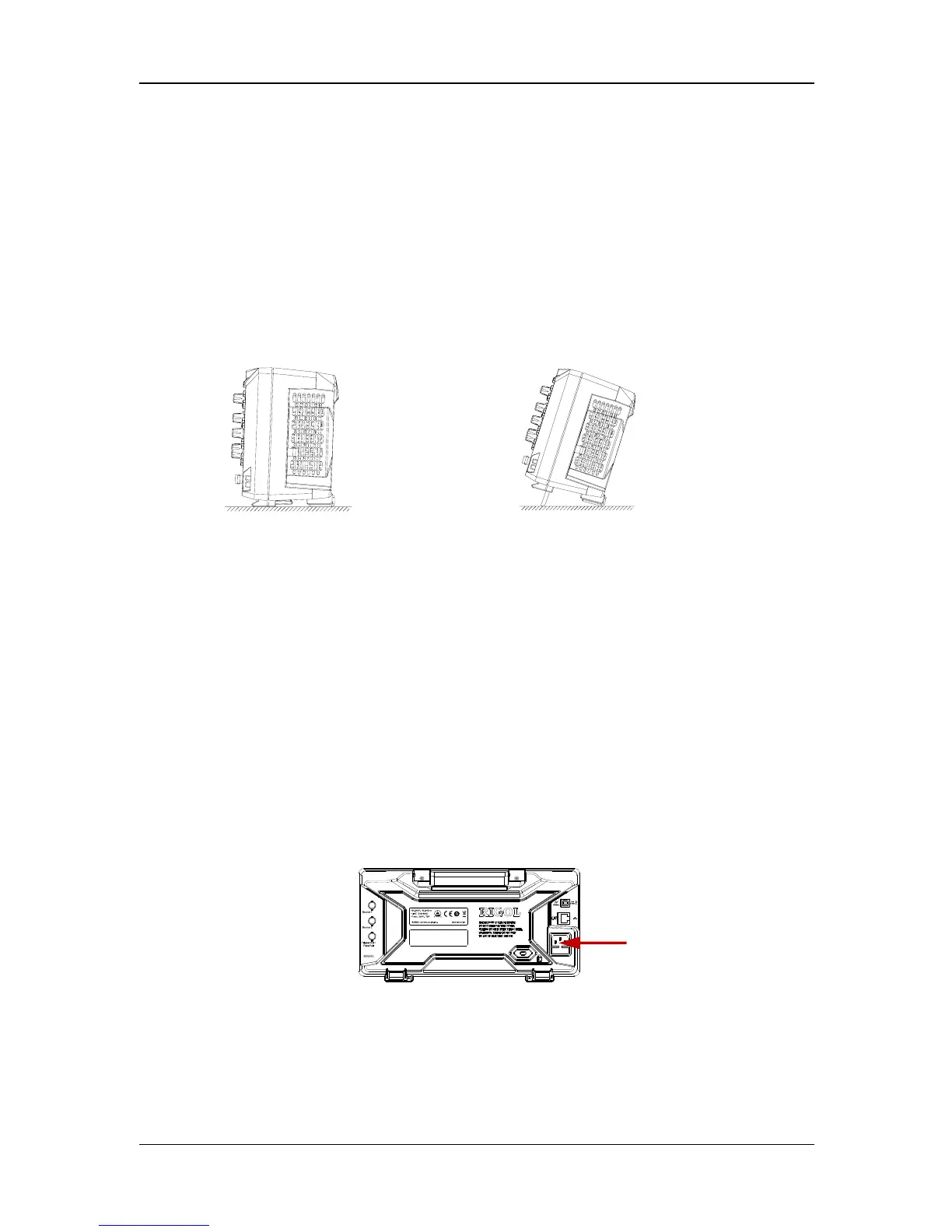

To Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt
the oscilloscope upwards for stable placement of the instrument as
well as easier operation and observation of the instrument.
Figure 3 To Adjust the Supporting Legs
To Connect to AC Power Supply
This oscilloscope can accept 100-240 V, 45-440 Hz AC power
supply. Please use the power cord supplied with the accessories to
connect the oscilloscope to the power source as shown in the
figure below.
Figure 4 To Connect to AC Power Supply
Power Socket

Rigol DS1000Z Series Specifications

General

Brand	Rigol
Model	DS1000Z Series
Category	Test Equipment
Language	English
