Probe Compensation
When the probes are used for the first time, you should
compensate the probes to match the input channels of the
oscilloscope. Non-compensated or poorly compensated probes
may cause measurement inaccuracy and error. The probe
compensation procedures are as follows:
1. Perform step 1, 2, 3 and 4 of “Function Inspection”.
2. Check the displayed waveforms and compare them with the
following figures.

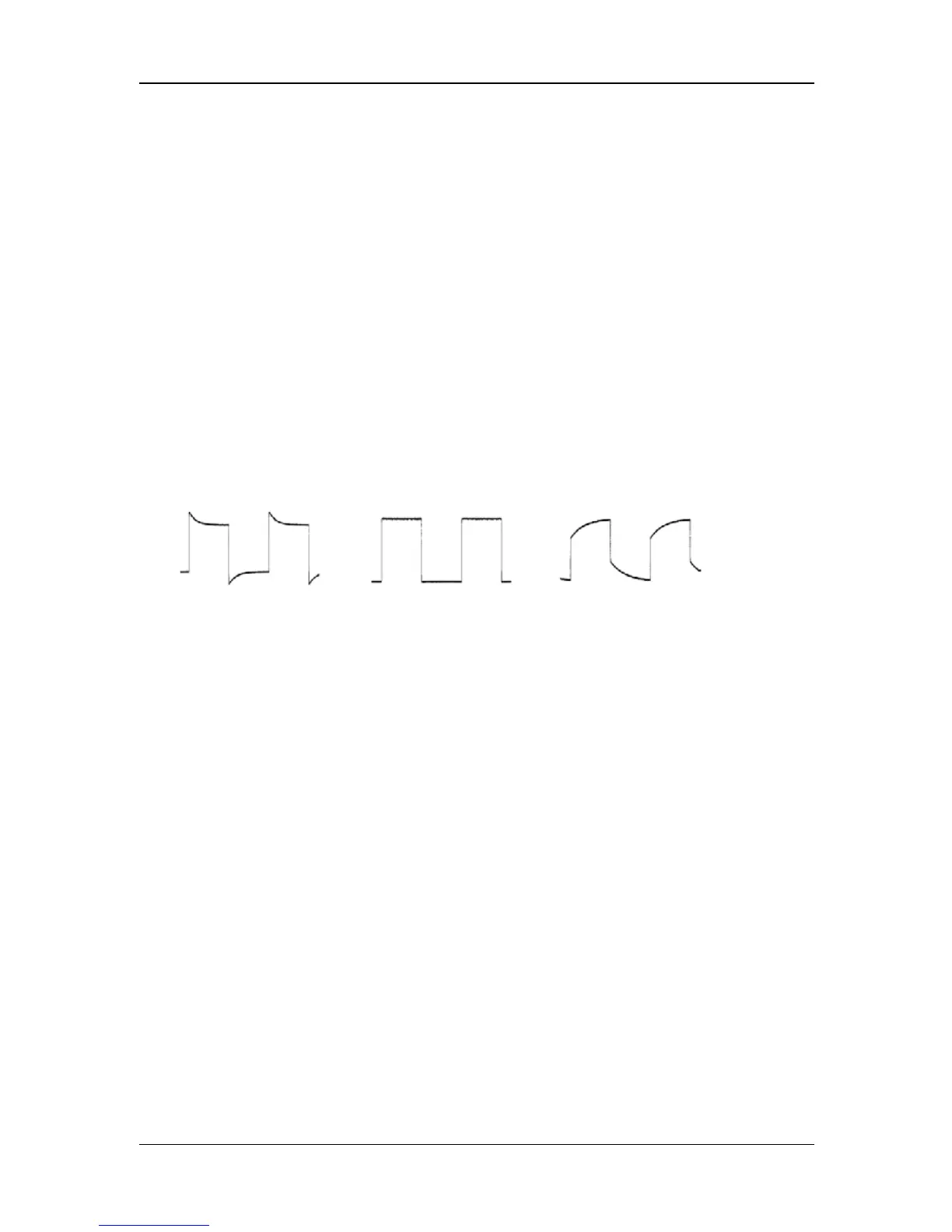

Figure 8 Probe Compensation
3. Use a nonmetallic driver to adjust the low-frequency
compensation adjustment hole on the probe until the
displayed waveform is as the “Correctly compensated” in the
figure above.
