User Interface
DS1000Z provides 7.0 inches, WVGA (800*480) 160,000 color TFT
LCD.

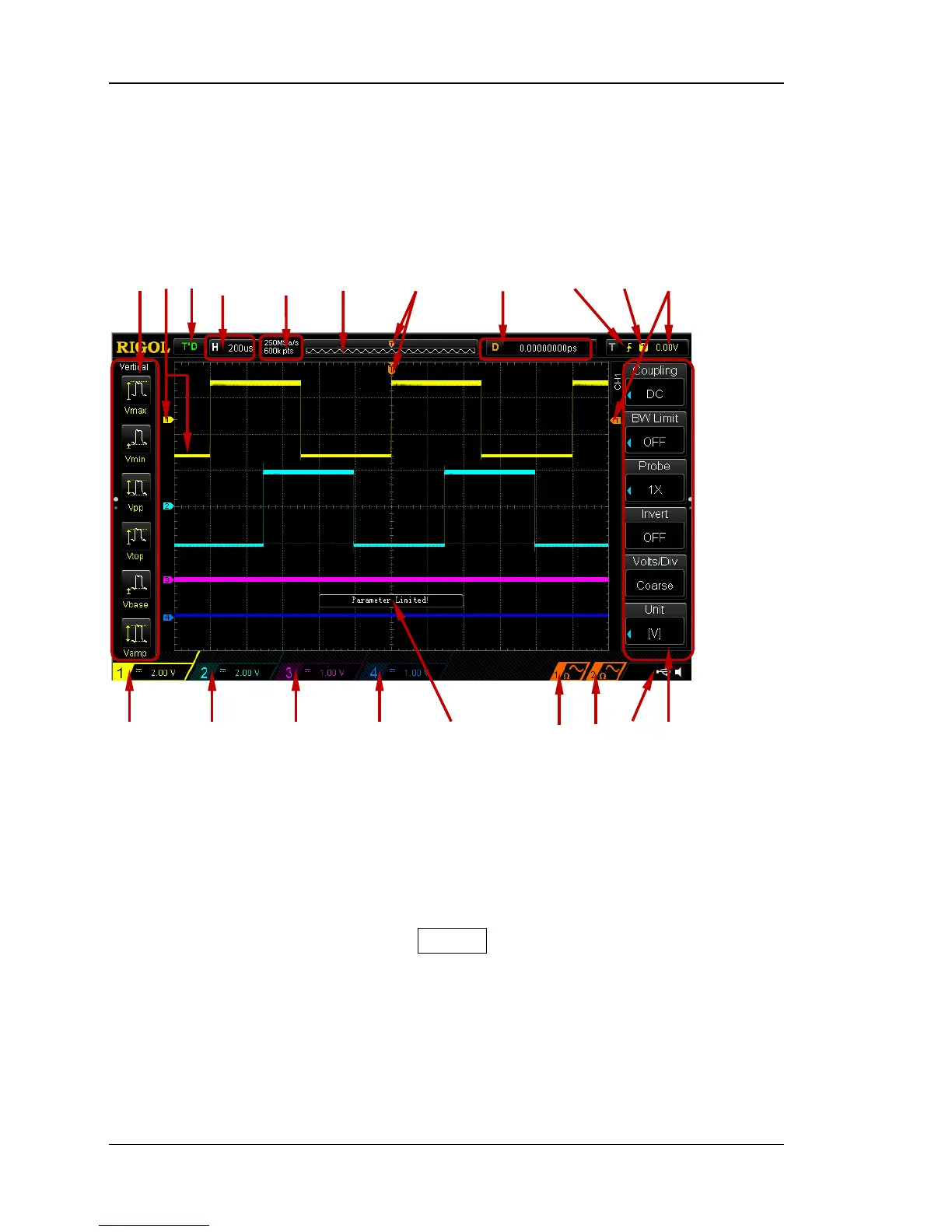

Figure 11 User Interface
1. Auto Measurement Items
Provide 12 horizontal (HORIZONTAL) and 12 vertical
(VERTICAL) measurement parameters. Press the softkey at
the left of the screen to activate the corresponding
measurement item. Press MENU continuously to switch
between the horizontal and vertical parameters.
2. Channel Label/Waveform
Different channels are marked by different colors and the
color of the waveform complies with the color of the channel.
