Rigol DS1000Z Series Quick Guide

RIGOL
DS1000Z Quick Guide
15

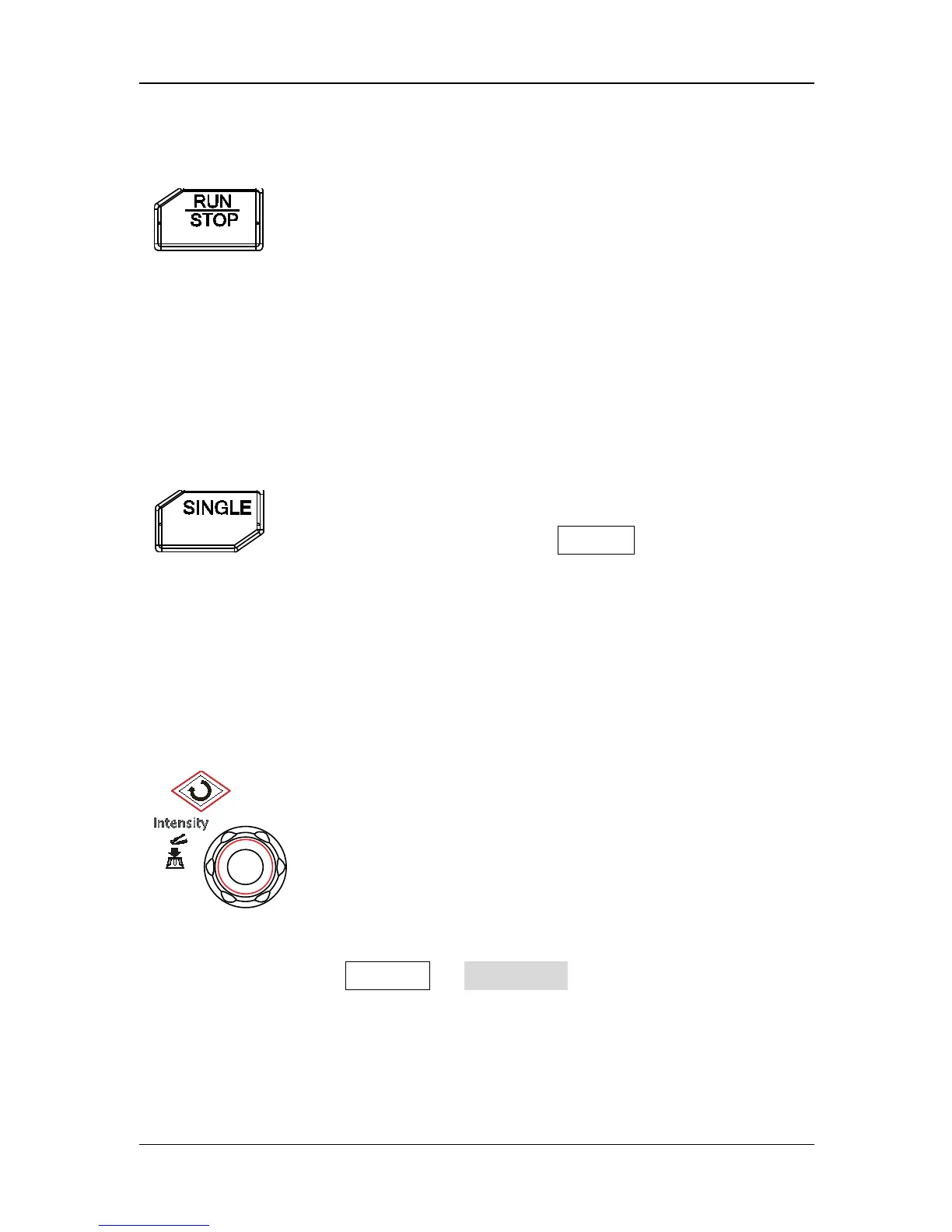

RUN/STOP
Press this key to set the state of the oscilloscope to
“RUN” or “STOP”.
 In “RUN” state, the key is illuminated in yellow.
 In “STOP” state, the key is illuminated in red.
SINGLE
Press this key to set the trigger mode to “Single”. In
single trigger mode, press FORCE to generate a
trigger signal immediately.
Knob
Adjust waveform brightness:
In non-menu-operation mode, turn this knob to
adjust the brightness of waveform display. The
adjustable range is from 0% to 100%. Turn
clockwise to increase the brightness and
counterclockwise to reduce. Press down this knob
to reset the brightness to 50%.
You can also press Display  Intensity and use the knob to
adjust the waveform brightness.
Multifunctional Knob (the backlight goes on during
operation):
