screen would change accordingly. Press down this knob to quickly
reset the horizontal position (or the delayed sweep position).
MENU: press this key to open
the horizontal control menu under
which to turn on or off the delayed sweep function, switch
between different time base modes.
HORIZONTAL
SCALE
: modify the horizontal time base.
Turn clockwise to reduce the time base and turn counterclockwise
to increase the time base. During the modification, waveforms of
all the channels will be displayed in expanded or compressed
mode and the time base message (e.g.
) at the upper side
of the screen would change accordingly. Press down this knob to
quickly switch to delayed sweep state.

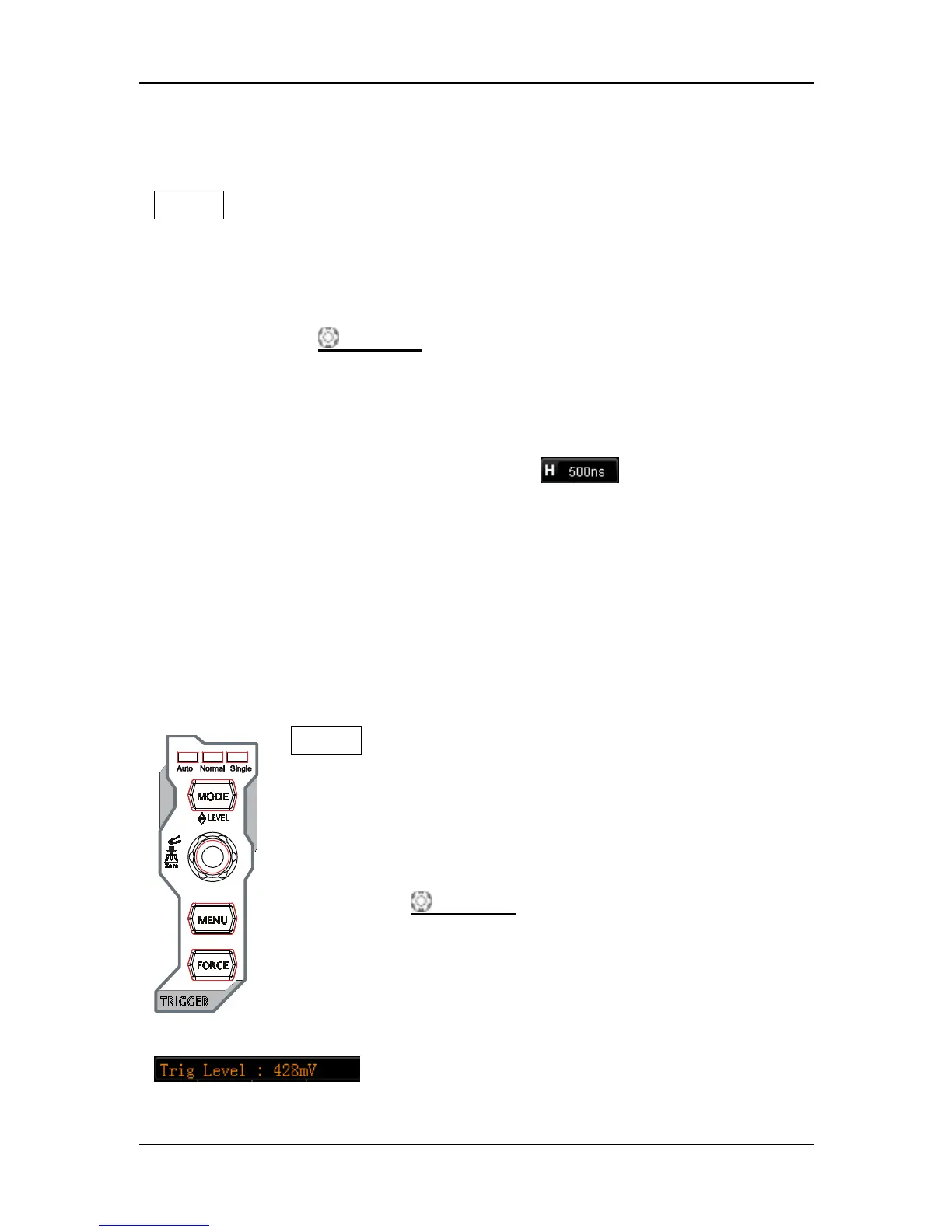

TRIGGER
MODE: p
ress this key to switch the trigger mode to
Auto, Normal or Single and the corresponding
state backlight of the current trigger mode would
be illuminated.
TRIGGER
LEVEL
:
modify the trigger level.
Turn clockwise to increase the level
and turn
counterclockwise to reduce the
level. During the
modification, the trigger level line would move up
and down and the value in the trigger level message box (e.g.
) at the lower-
left corner of the screen would
change accordingly. Press down the knob to quickly reset the
