Default, then a prompt message "Restore default settings?" is displayed.
Click OK to restore the instrument to its factory default settings.
2. Connect the ground alligator clip of the probe to the "Ground Terminal" as
shown in Figure 8 below.
3. Use the probe to connect the input terminal of CH1 of the oscilloscope and
the "Compensation Signal Output Terminal" of the probe, as shown in
Figure 8.

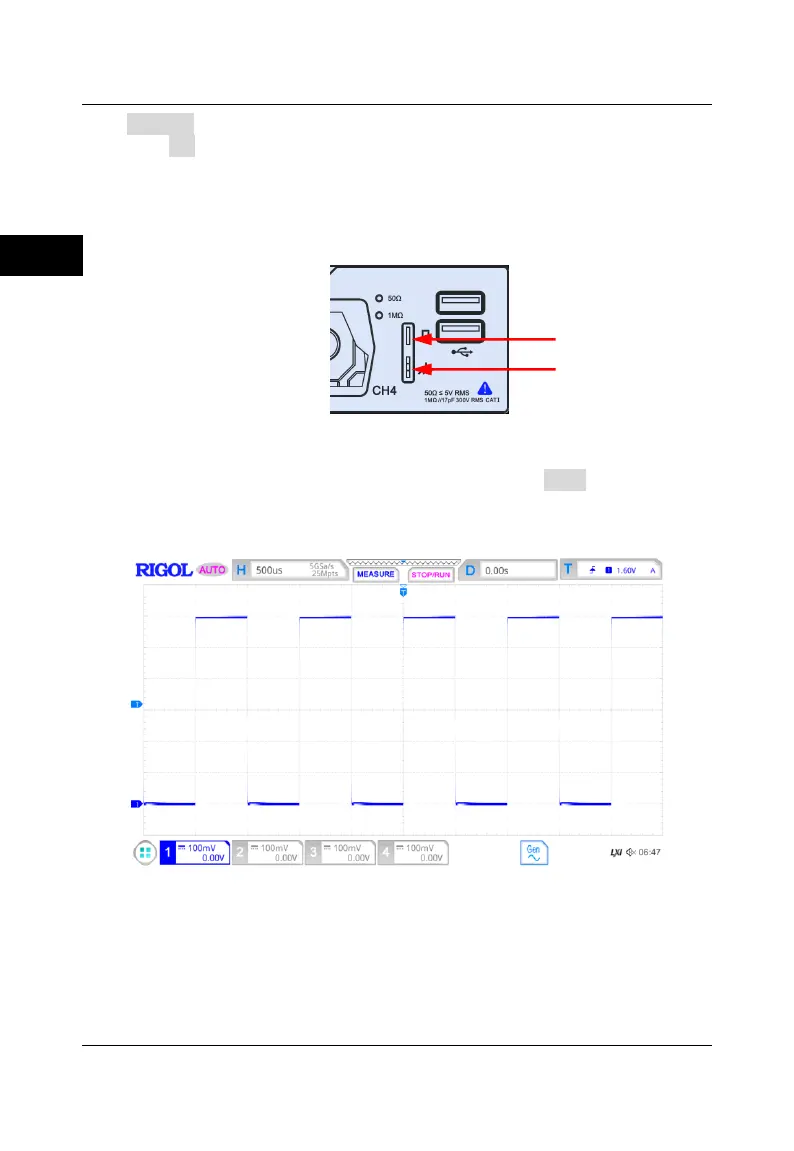

Figure 8 To Use the Compensation Signal
4. Set the probe attenuation to 10X, and then click the Auto key in the Web
Control page.
5. Observe the waveform on the display. In normal condition, the square
waveform as shown in Figure 9 should be displayed.
Figure 9 Square Waveform Signal
6. Use the same method to test the other channels. If the square waveforms
actually shown do not match that in the figure above, please perform
"Probe Compensation" introduced in the next section.
