RIGOL Chapter 15 Remote Control

15-6 MSO4000/DS4000 User’s Guide

Remote Control via LAN

1. Connect the device

Connect the oscilloscope to your LAN using a network cable.

2. Configure the network parameters

Configure the network parameters of the oscilloscope according to “To

Configure the LAN Interface”.

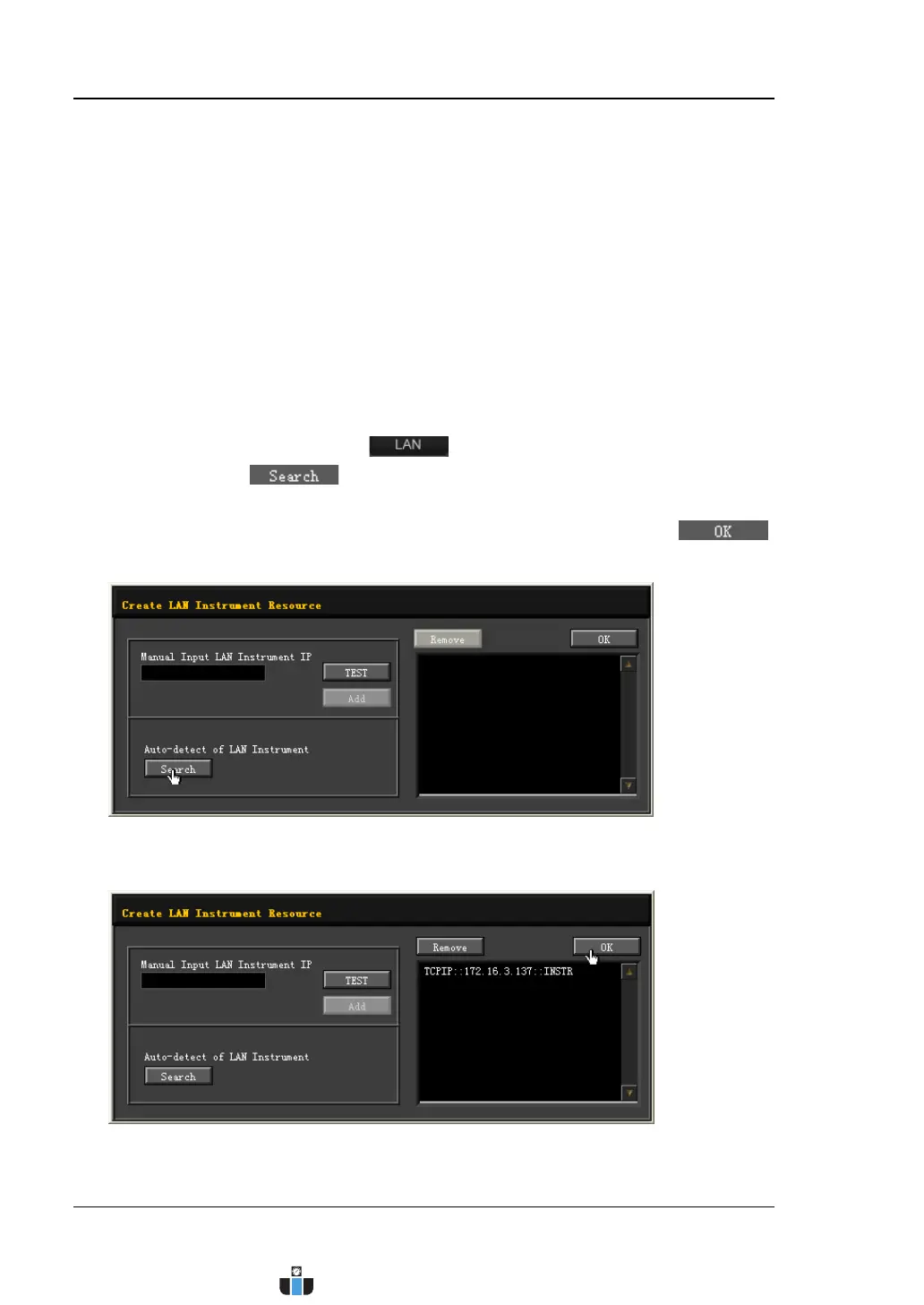

3. Search for device resources

Start up Ultra Sigma and click

. The window as shown in figure (a) is

displayed. Click

in the window and the software will search for the

instrument resources currently connected to the LAN; the resources found are

displayed at the right of the window (as shown in Figure (b)). Click

to add the resource.

(a)

(b)
