RIGOL Chapter 1 Quick Start
1-26 MSO4000/DS4000 User’s Guide

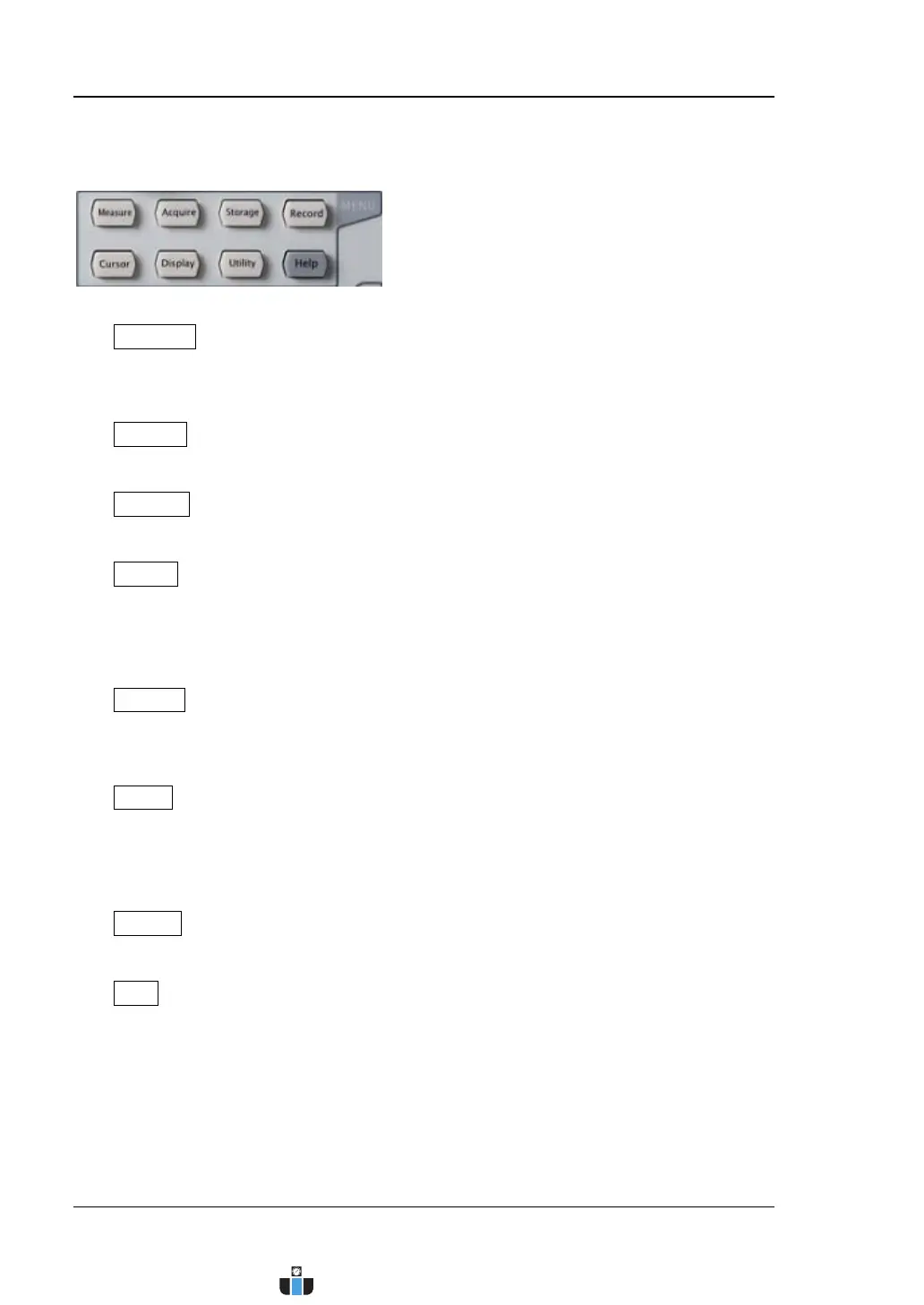

Function Keys
 Measure: press this key to enter the measurement setting menu. You can set
the signal source, perform all measurement, turn on the statistic function, make
measurement settings and so on.
 Acquire: press this key to enter the sample setting menu. You can set the
acquisition mode, memory depth and anti-aliasing function of the oscilloscope.
 Storage: press this key to enter the file store and recall interface. This
instrument supports internal/external storage as well as disk management.
 Cursor: press this key to enter the cursor measurement menu. The oscilloscope
provides four cursor modes (manual, track, auto and X-Y).
Note: The X-Y cursor mode is only available when the horizontal time base
mode is X-Y.
 Display: press this key to enter the display setting menu. You can set the
waveform display type, persistence time, waveform intensity, screen grid type,
grid brightness and menu display time.
 Utility: press this key to enter the system auxiliary function setting menu. You
can set the system-related functions and parameters, such as the I/O setting,
sound and language. The oscilloscope also supports some advanced functions,
such as the pass/fail test and print setting.
 Record: press this key to enter the waveform recording menu. You can select
the desired waveform recording mode and set the related parameters.
 Help: press this key to open the help interface. For the detailed information,
please refer to the introduction in “To Use the Built-in Help System”.
