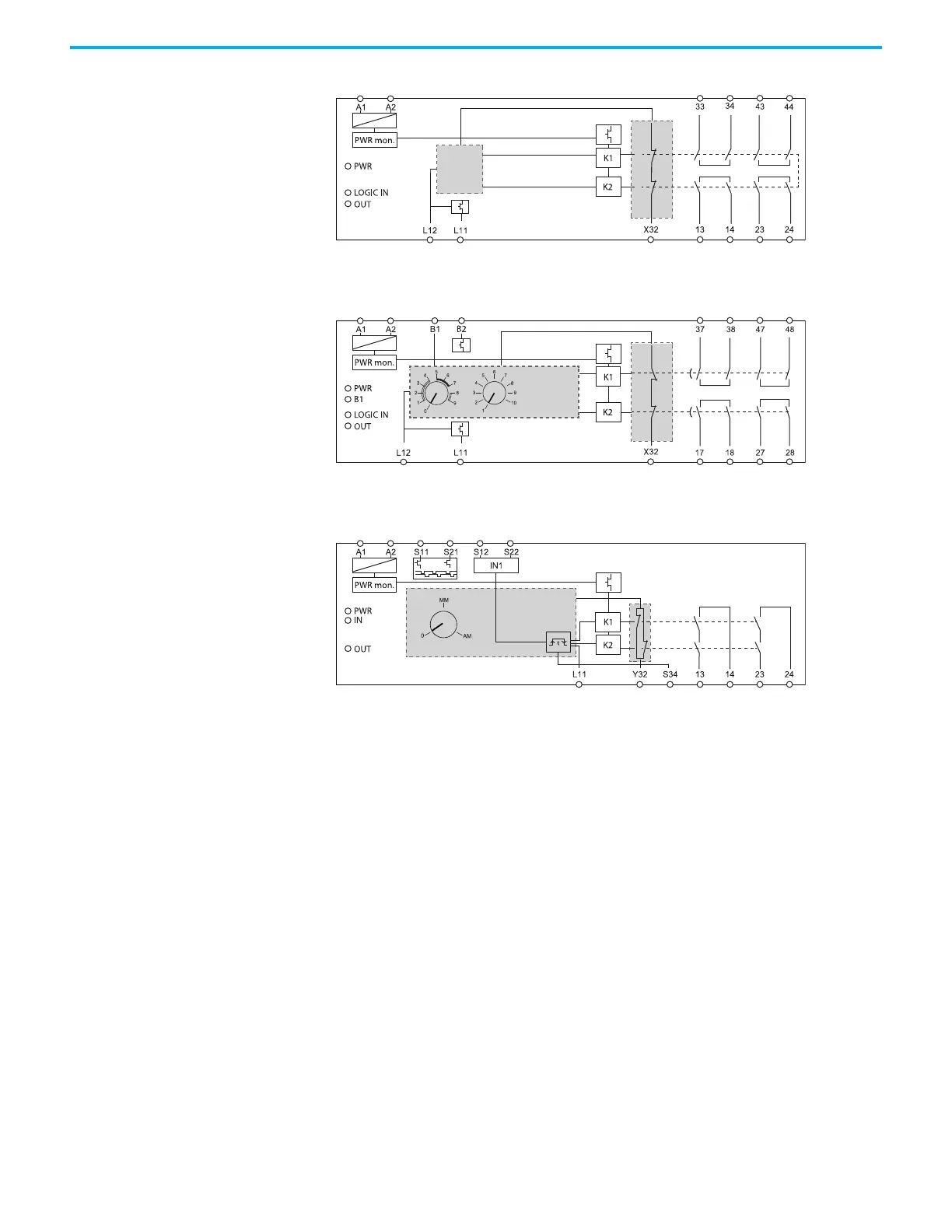

44 Rockwell Automation Publication 440R-UM013F-EN-P - July 2021

Chapter 8 Internal Circuit Block Diagrams

EM Safety Relay

(Cat.No.440R-EM4R2)

Figure 39 - EM Safety Relay Circuit Diagram

EMD Safety Relay

(Cat.No.440R-EM4R2D)

Figure 40 - EMD Safety Relay Circuit Diagram

SI Safety Relay

(Cat.No.440R-S12R2)

Figure 41 - SI Safety Relay Circuit Diagram

Logic

Range Time

on delay

off delay

jogging

Reset
