52 Rockwell Automation Publication 440R-UM013F-EN-P - July 2021
Chapter 10 Ethernet Communication

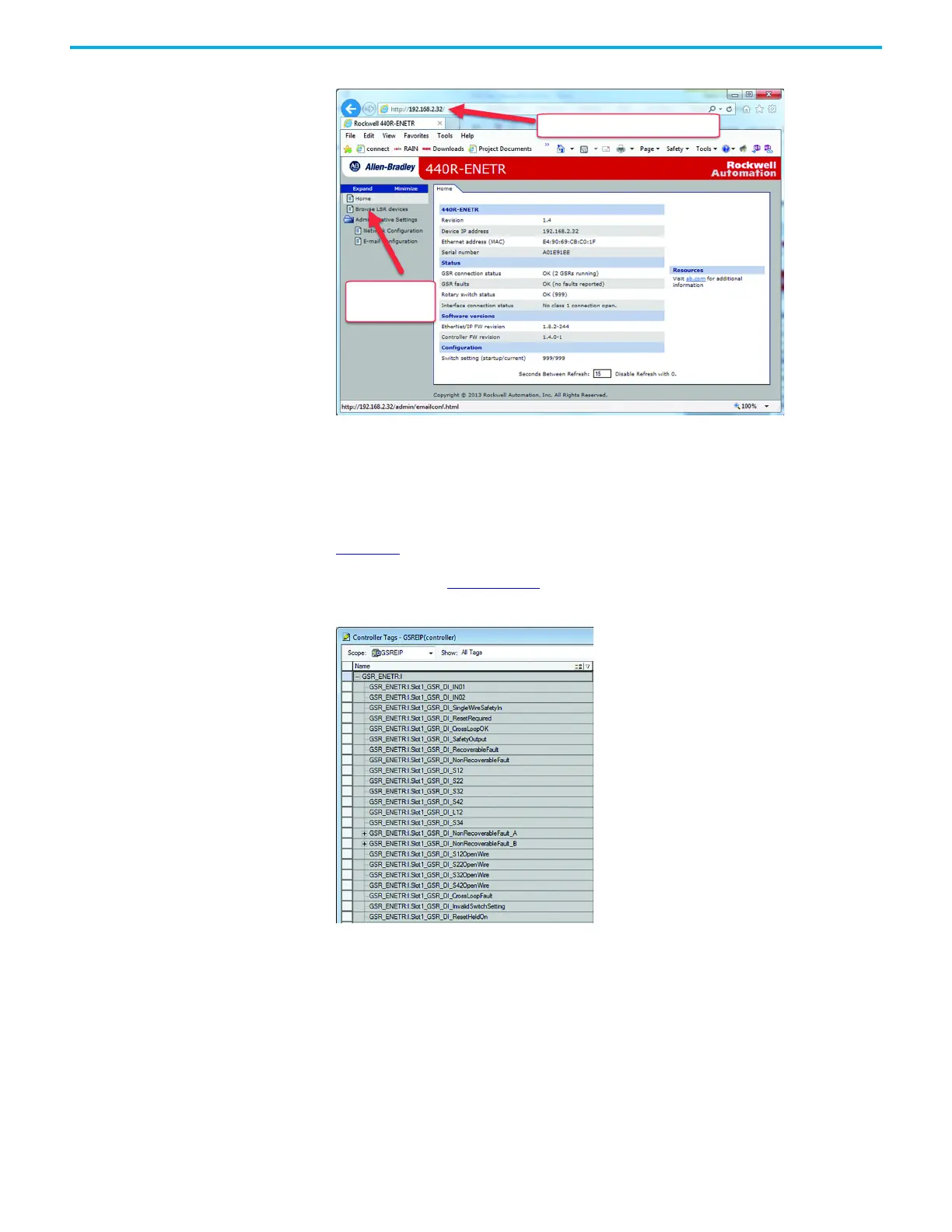

Figure 54 - ENETR Webpage
Studio 5000 Logix Designer
Add-on Profile (AOP)
The catalog number 440R-ENETR EtherNet/IP module includes the Studio
5000 Logix Designer® AOP for the DI, DIS, EM, EMD, and SI safety relays. The
AOP allows you to view the status of the relays, including open and closed
inputs, outputs ON and OFF, waiting for reset, and fault information.
Figure 55
shows an example of the AOP for the DI safety relay.
See publication 440R-UM009
for further details on the EtherNet/IP module.
Figure 55 - AOP for the DI Safety Relay
Click to browse
the safety relays
Type the IP address of the ENETR module
