PowerFlex 753 Drive (P_PF753)
Quick Display

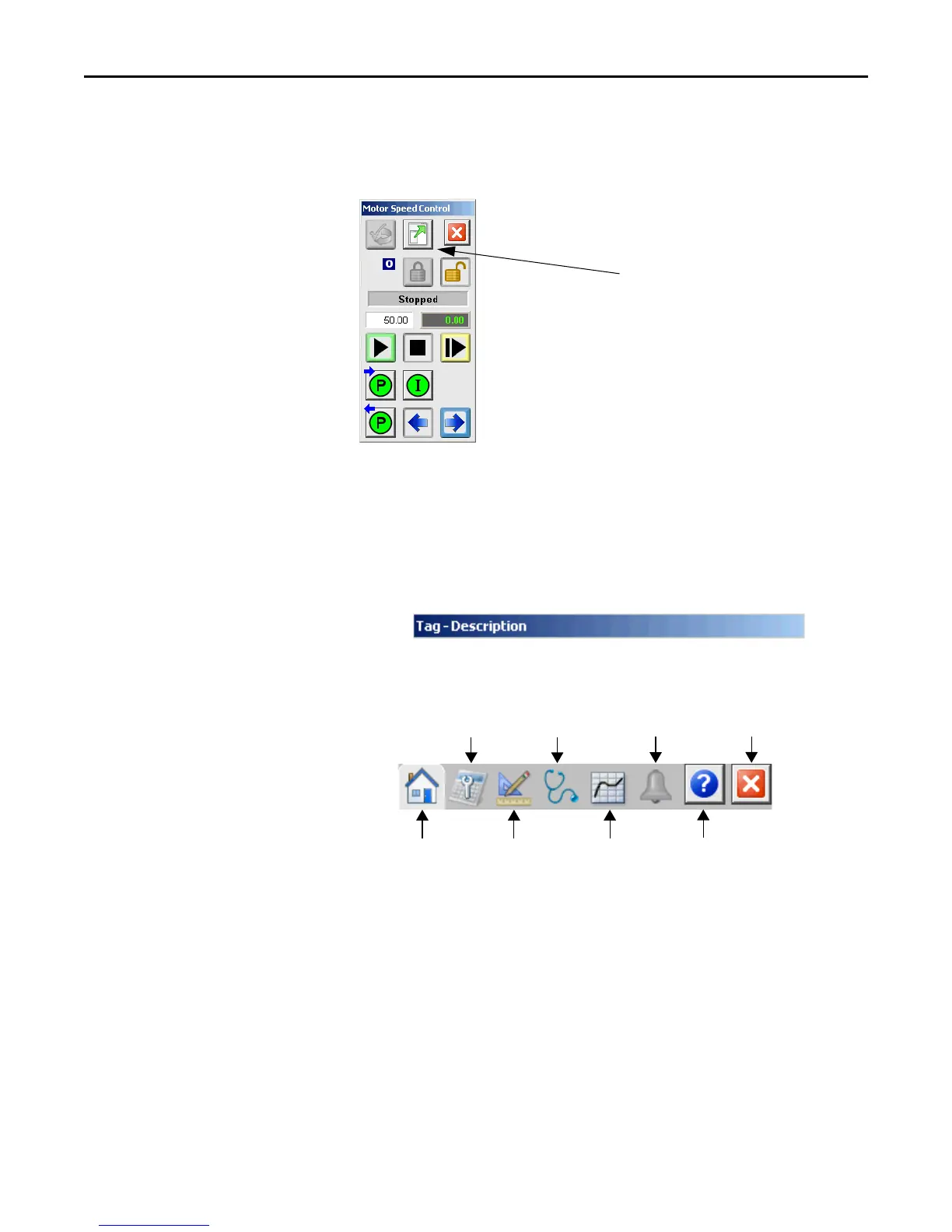

The Quick Display screen provides the means for operators to perform simple
interactions with the P_PF753 instruction instance. From the Quick Display,
you can navigate to the faceplate for full access for operation, maintenance, and
configuration.
Faceplate
The P_PF753 faceplate consists of six tabs and each tab consists of one or more
pages.
The title bar of the faceplate contains the value of local configuration tags
Cfg_Tag and Cfg_Desc.
The Operator tab is displayed when the faceplate is initially opened. Click the
appropriate icon at the top of the faceplate to access a specific tab.
The faceplate provides the means for operators, maintenance personnel,
engineers, and others to interact with the P_PF753 instruction instance,
including viewing its status and values and manipulating it through its commands
and settings. When a given input is restricted via FactoryTalk View security, the
required user security-code letter is shown in the tables that follow.
Navigate to Full
Faceplate Button
Operator
Maintenance
Engineering
Diagnostics
Trends
Alarms
Help
Exit
