3 Replacement of Main Parts
45
3
Remove the Limit SW and loosen the Spindle Cable Bush.
Then, cut off the INSULOCK TIEs and remove the Sponge.
3
Remove the Junction Board Cover.
Disconnect the Z Motor Cable, Z Limit Cable and Spindle
Motor Cable from the XZ Junction Board.
2

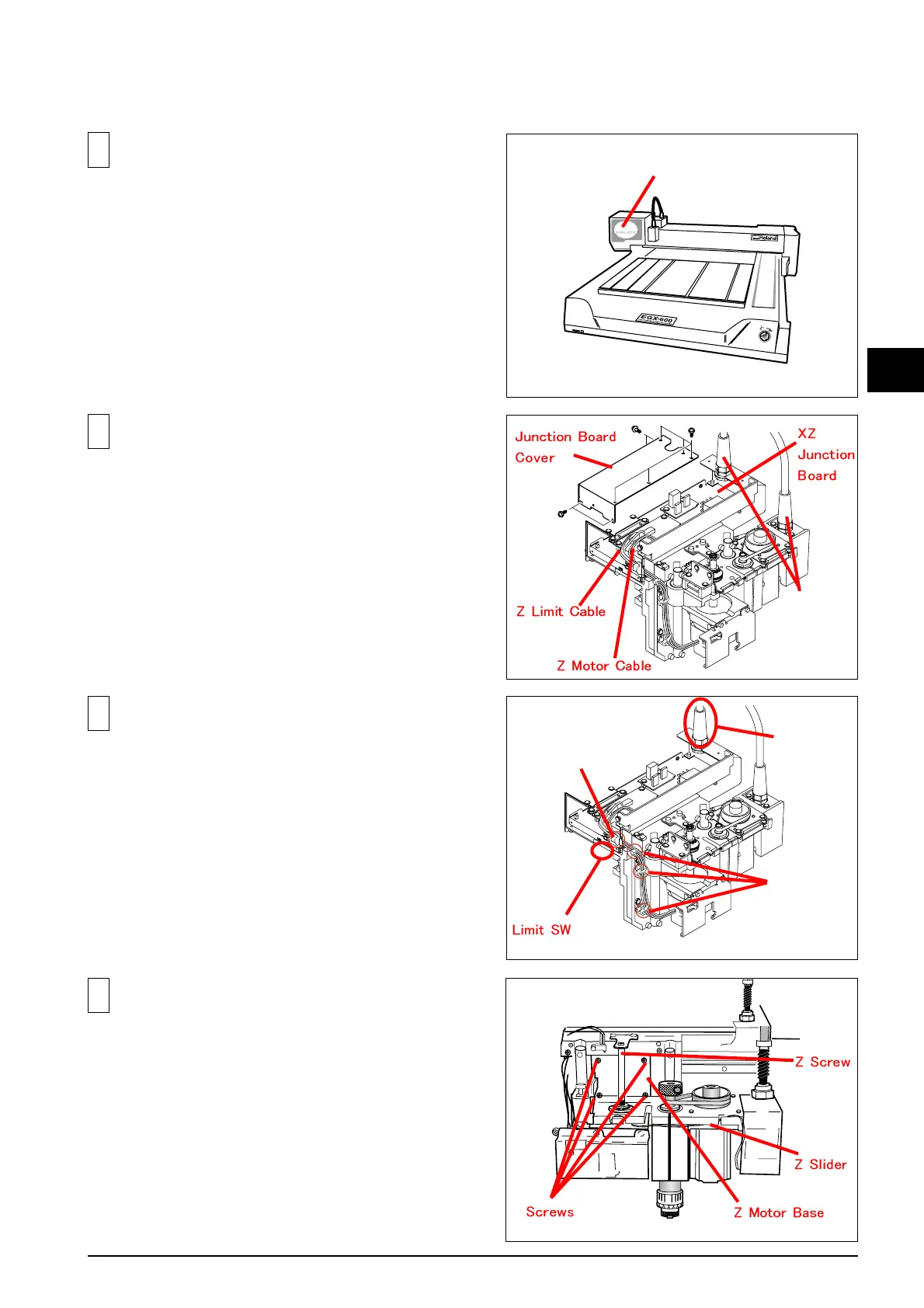

3-4 Z Axis Motor_Replacement (Referential Time : 30 minutes)
Sponge and
INSULOCK TIE
INSULOCK
TIEs
Spindle
Motor
Cable
Loosen the 4 screws on the Z Motor Base by rotating the Z
Screw and making the Z Slider up and down.
4
Spindle
Cable Bush
1
Remove the Spindle Cover.
Spindle Cover
To Next Page
