79
4 Adjustment
4

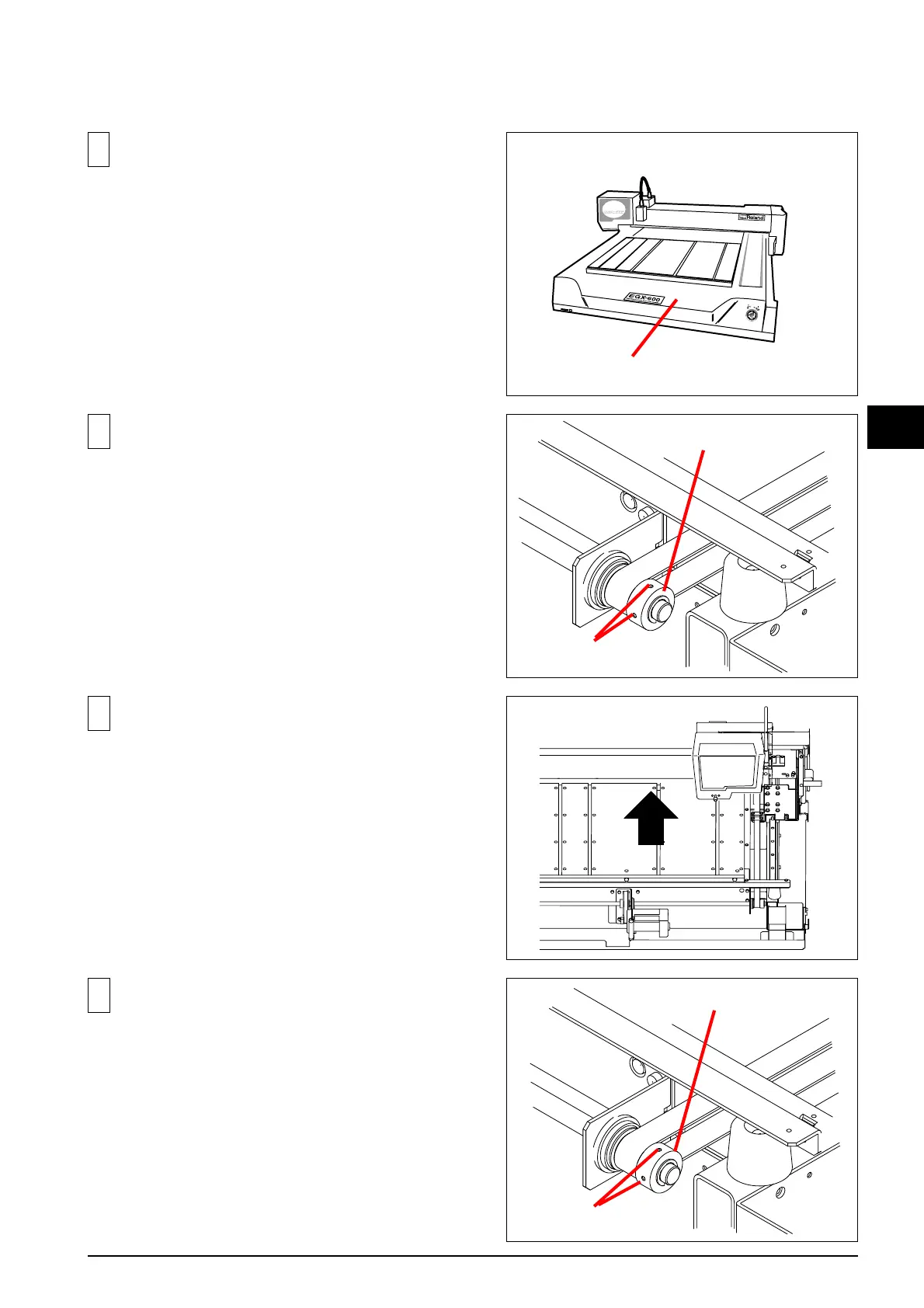

4-6 RIGHT ANGLED ADJUSTMENT OF X-RAIL (Referential Time : 5min.)
3
4
Set Screws
Tighten the Set Screws by pushing the X Rail to rear side
frame.
Make sure that the Y Drive Pulley won't idle.
Move the X-Rail to the Rear side frame.
2
Set Screws
Loosen the Set Screws of the Y Drive Pulley.
Y Drive Pulley
Y Drive Pulley
1
Front Cover
Remove the Front Cover.
