Roland EGX-600 Service Notes

77
4 Adjustment
4

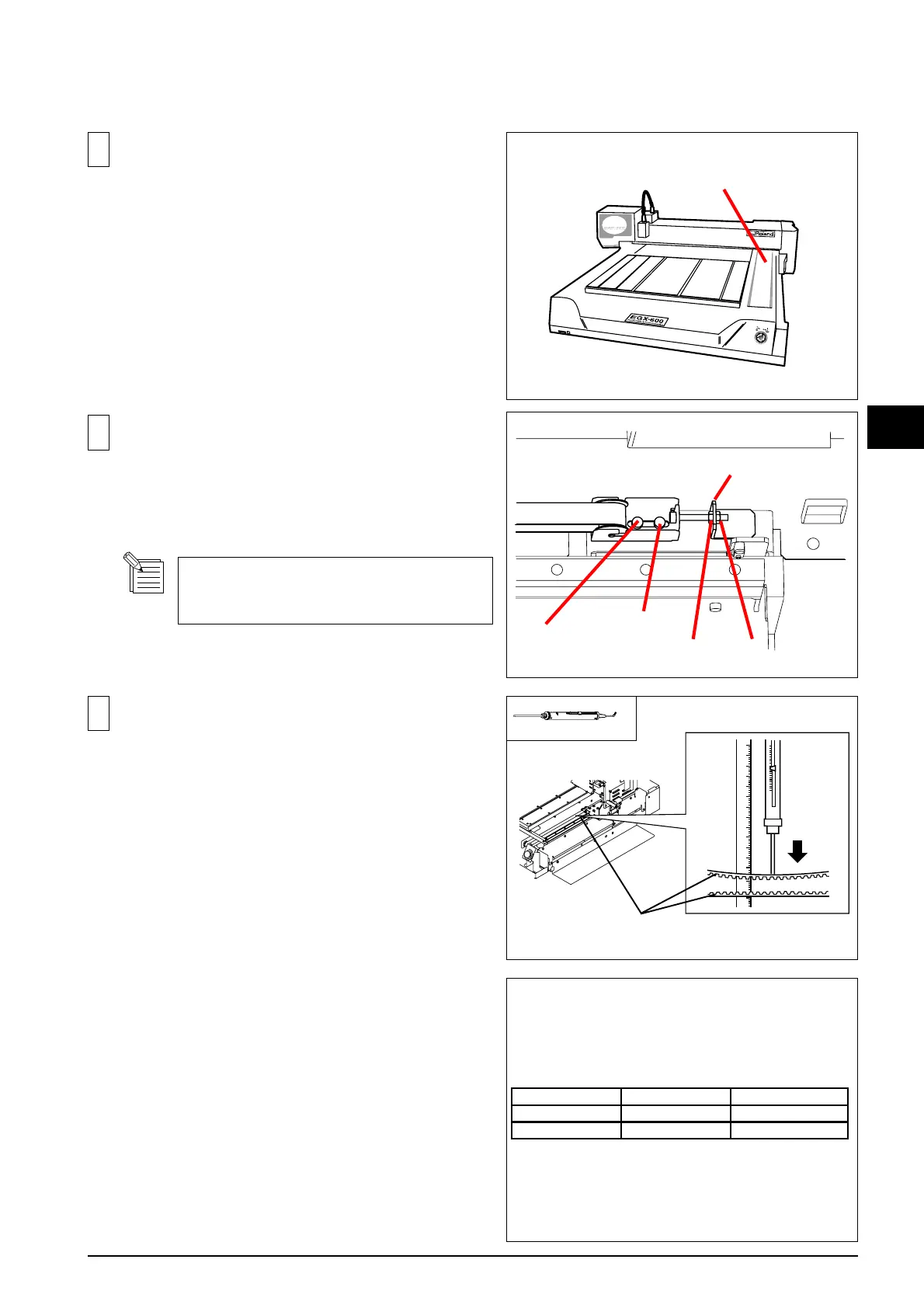

4-5 Y BELT TENSION ADJUSTMENT (Referential Time : 10min.)
<Reference Table>
Pressing Force Bending Amount
EGX-600 720gf 8.0mm
EGX-400 720gf 6.0mm
Y Belt
3
Push the Y-Belt with the Tension Gauge (ST-001) at the
middle position between the Y-Drive Pulley and check the
bending amount with the ruler.
Confir that the Pressing Force matches with the Bending
Amount in reference to the next table.
ST-001
2
Loosen the Screw1 and 2 and then, loosen the Nut1 and 2.
Tighten up the Nut2 so that there is no gap between the
Frame and the Nut1.
Nut1
Screw2
Screw1
Nut2
Frame
It is possibe to adjust the X Belt Tension by
changing the position of the Nuts.
1
Remove the Y Rail Cover.
Y Rail Cover
