Roland Groovebox MC-307 User Manual

48

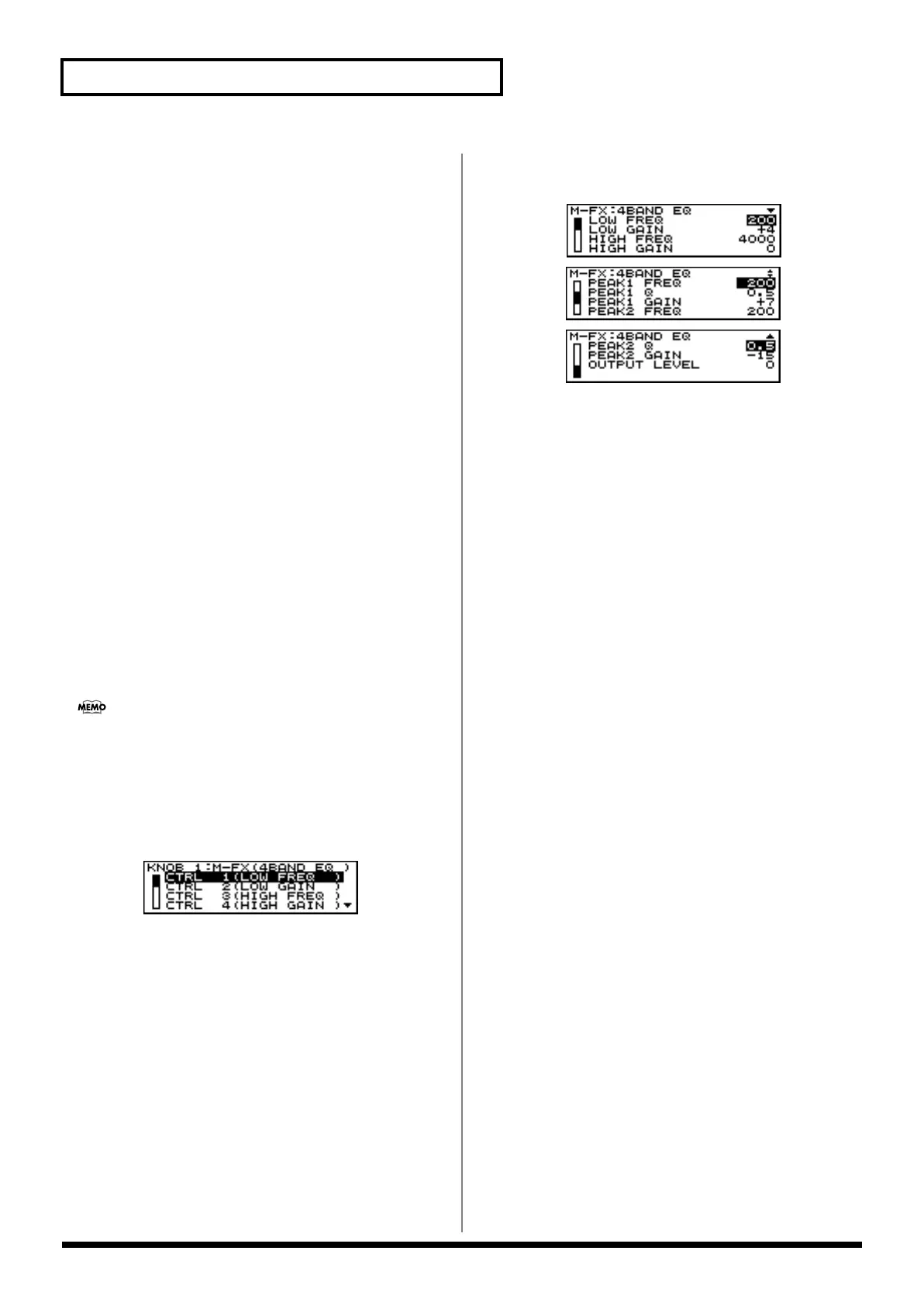

Chapter 4 Setting Effects
Defining Parameters in Detail
Defines the Multi-effects settings and their parameters in
detail.
Procedure
The following procedure is common to all types of Multi-
effects. See P. 48 to P. 61 for details of the parameters.
1. Press the [PTN] button.
The screen for playing patterns appears.
2. Press the [F2 (STUP] button.
The Setup Menu screen appears.
3. Press the [F4 (M-FX)] button.
4. Use the [VALUE] dial or the [INC/DEC] buttons to select
the type of Multi-effects.
5. Press the [F4 (PRM)] button.
The screen for playing patterns appears.
6. Use the [CURSOR (up/down)] buttons to move the
cursor to the parameter you want to set.
7. Set the parameter using the [VALUE] dial or the [INC/
DEC] buttons.
Information such as [CTRL1] printed at the right of each
parameter name in the following explanation are the names
of the settings used when using the assignable knobs (P. 28)
to operate these parameters.For example if you are using the
"4 band EQ," and would like to use the assignable knobs to
operate "LOW GAIN," assign "CTRL 2" to the knob.
1. 4 Band EQ (Modify the tone)
This is a 4 band (high, midrange x 2, low) stereo equalizer.
Available Settings:
- LOW FREQ (LOW Frequency) [CTRL 1]
Determines the frequency of the low range.
Range: 200, 400 (Hz)
- LOW GAIN [CTRL 2]
Adjusts the volume of the low frequency range.
Range:-15– +15
- HIGH FREQ (HIGH Frequency) [CTRL 3]
Determines the frequency of the high range.
Range:4000, 8000 (Hz)
- HIGH GAIN [CTRL 4]
Adjusts the volume of the high frequency range.
Range: -15– +15
- PEAK1 FREQ (Peaking 1 Frequency) [CTRL 5]
Determines the frequency of midrange 1.
Range: 200–8000 (Hz)
- PEAK1 Q (Peaking 1Q) [CTRL 6]
Specifies the width of the frequency range affected by
midrange 1. As this setting is increased, the affected area
will become narrower.
Range: 0.5–8.0
- PEAK1 GAIN (Peaking 1 GAIN) [CTRL 7]
Adjusts the volume of midrange 1.
Range: -15– +15
- PEAK2 FREQ (Peaking 2 Frequency) [CTRL 8]
Determines the frequency of midrange 2.
Range: 200–8000 (Hz)
- PEAK2 Q (Peaking 2Q) [CTRL 9]
Specifies the width of the frequency range affected by
midrange 2. As this setting is increased, the affected area
will become narrower.
Range: 0.5–8.0
- PEAK2 GAIN (Peaking 2 GAIN) [CTRL 10]
Adjusts the volume of midrange 2.
Range: -15– +15
- OUTPUT LEVEL [CTRL 11]
Adjusts the output level from the 4 band EQ.
Range: 0–127
