Roland RD-700NX User Manual

28
Performance
Playing Multiple Tones with the Keyboard
The RD-700NX features four Internal layers (UPPER 1, UPPER 2, LOWER 1, and
LOWER 2), and one tone can be assigned to each of these layers.
You can perform using combinations of tones by turning each layer on or o .
You can have multiple tones layered together at the same time, and even have
di erent tones played in the left and right parts of the keyboard.

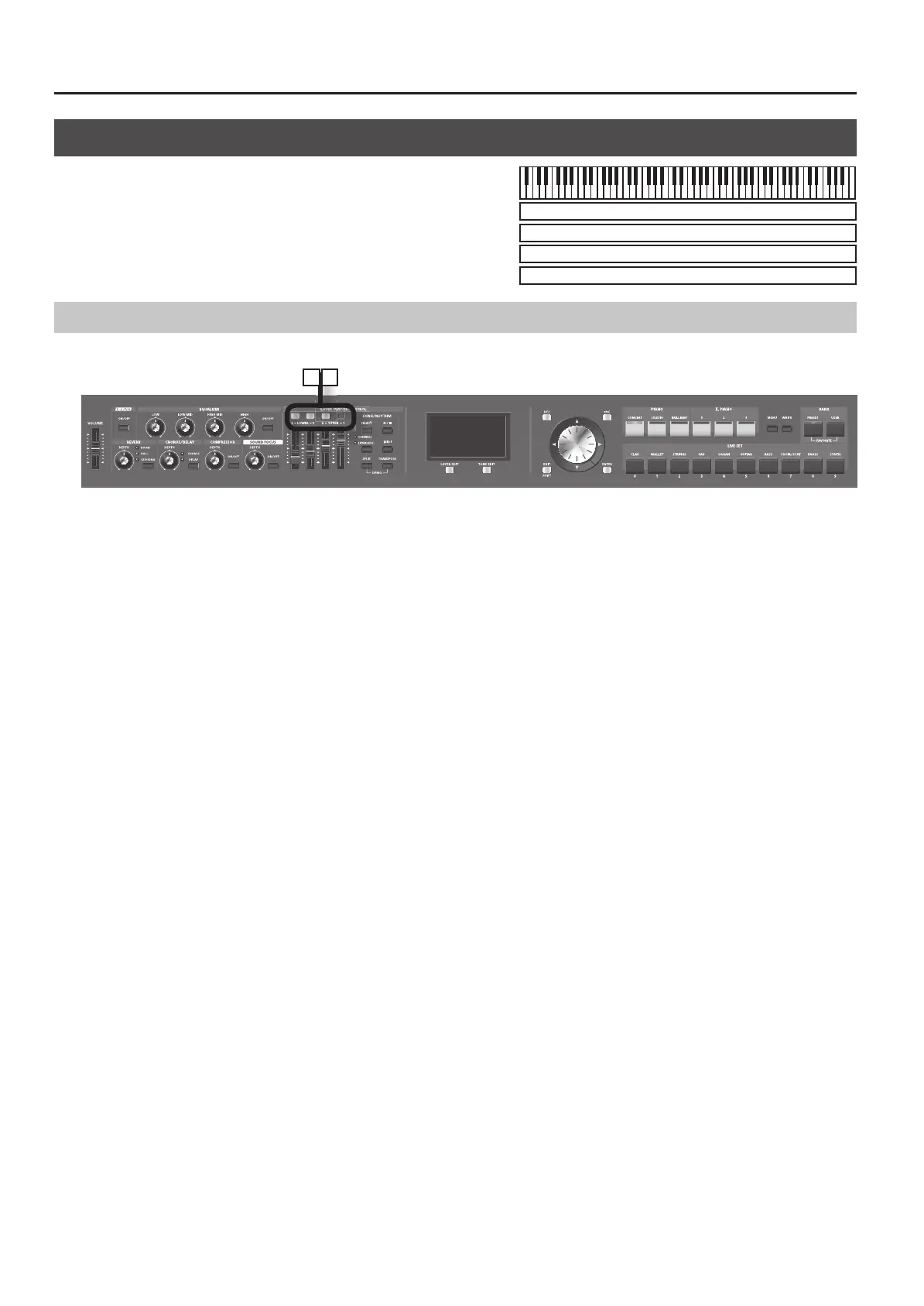

Performing with Layered Tones
You can perform with up to four layered tones applied to the entire keyboard.
1 2
1. Press the [UPPER 1] button and [UPPER 2] button, getting the indicators to light.
Try  ngering the keyboard.
The Tones for UPPER 1 and UPPER 2 are layered and played.
2. Press the [UPPER 2] button once more, and the indicator light goes out.
The Tones for UPPER 1 played.
Likewise, pressing the [LOWER 1] button and [LOWER 2] button lets you then layer four tones.
UPPER 1
UPPER 2
LOWER 1
LOWER 2

Roland RD-700NX Specifications

Power

power consumption	12 W

Audio and Sound

maximum polyphony	128 voices
sound generator	SuperNATURAL Piano, SuperNATURAL (E.Piano), Virtual Tone Wheel Organ, PCM Sound Generator, GM2 (for SMF Playback)
effects	Multi-Effects (2 x 4 systems, 84 types), Reverb (6 types), Chorus (3 types), 3-band Compressor, 4-band Digital Equalizer

Connectivity

output jacks	L/MONO, R Jacks (1/4-inch phone type), BALANCED OUT (L, R) Jacks (XLR type)
pedal jacks	DAMPER Pedal Jack, Control Pedal Jacks (FC1, FC2)
midi connectors	IN, OUT1, OUT2, THRU/OUT3

Weight and Dimensions

width	1, 444 mm (56-7/8 inches)
depth	375 mm (14-13/16 inches)
height	148 mm (5-7/8 inches)
weight	25.0 kg (55 lbs 2 oz)
