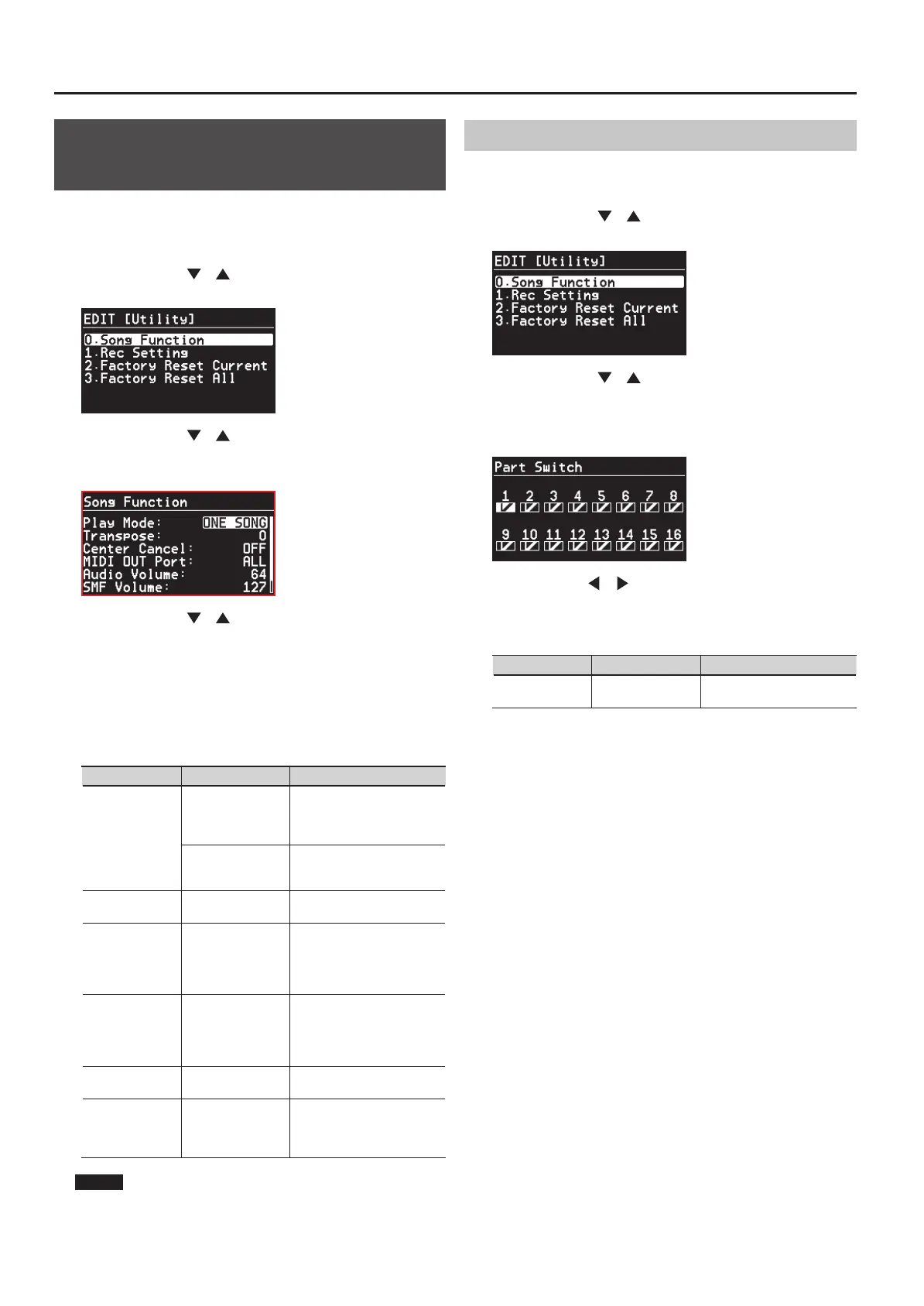

Detailed Settings for Each Function
Changing Settings Related to Song
Playback
You can change a variety of settings related to song playback.
1. Press the [MENU] button, getting the indicator to light.
The Menu screen appears.
2. Press the Cursor [ ] [ ] buttons to select “8.Utility,” and
press the [ENTER] button to display the Edit screen.
3. Press the Cursor [ ] [ ] buttons to select “0. Song
Function,” and press the [ENTER] button.
The following screen appears.
4. Press the Cursor [ ] [ ] buttons to move the cursor to the
parameter to be set.
5. Use the [DEC] [INC] buttons or the VALUE dial to set the
value.
If you press the [DEC] button and [INC] button simultaneously, the
setting will return to its default value.
6. When you have nished making the settings, press the
[MENU] button, extinguishing its indicator.
Parameter Value Description
Play Mode
ONE SONG
When you play back a song,
only one song will play;
playback will stop at the end of
that song.
ALL SONG
The songs in internal memory
or in USB memory will play
consecutively.
Transpose -6–0–+5
This lets you shift the playback
key of a song in semitone steps.
Center Cancel OFF, ON
When playing back audio data,
this causes sounds located
in the center (e.g., vocals or
melodic instruments) to be
reduced in volume.
MIDI OUT Port
ALL, INT (INTERNAL),
1 (MIDI OUT 1),
2 (MIDI OUT 2),
3 (MIDI OUT 3),
USB
This sets the MIDI connector
(port) from which the song is to
be output.
Audio Volume 0–127
This sets the volume for audio
le playback.
SMF Volume 0–127
This sets the volume for SMF
music data playback.
The volume will not change if
Part Mode (p. 69) is set to 16PART.
NOTE
For some songs, using Center Cancel might aect the tone quality.
Selecting the parts that will produce sound
1. Press the [MENU] button, getting the indicator to light.
The Menu screen appears.
2. Press the Cursor [ ] [ ] buttons to select “8.Utility,” and
press the [ENTER] button to display the Edit screen.
3. Press the Cursor [ ] [ ] buttons to select “0. Song
Function,” and press the [ENTER] button.
4. Choose “Part Switch,” and press the [ENTER] button.
The playback part switch setting screen will appear.
5. Use the cursor [ ] [ ] buttons to select a part, and use the
[DEC] [INC] buttons or the VALUE dial to turn that part on/o.
6. When you have nished making the settings, press the
[MENU] button, extinguishing its indicator.
Parameter Value Description
Part Switch OFF, ON
Turns each part on/o for song
playback.

Roland RD-700NX Specifications

Power

power consumption	12 W

Audio and Sound

maximum polyphony	128 voices
sound generator	SuperNATURAL Piano, SuperNATURAL (E.Piano), Virtual Tone Wheel Organ, PCM Sound Generator, GM2 (for SMF Playback)
effects	Multi-Effects (2 x 4 systems, 84 types), Reverb (6 types), Chorus (3 types), 3-band Compressor, 4-band Digital Equalizer

Connectivity

output jacks	L/MONO, R Jacks (1/4-inch phone type), BALANCED OUT (L, R) Jacks (XLR type)
pedal jacks	DAMPER Pedal Jack, Control Pedal Jacks (FC1, FC2)
midi connectors	IN, OUT1, OUT2, THRU/OUT3

Weight and Dimensions

width	1, 444 mm (56-7/8 inches)
depth	375 mm (14-13/16 inches)
height	148 mm (5-7/8 inches)
weight	25.0 kg (55 lbs 2 oz)
