Roland VG-88 Service Notes

2
Apr. 2000
VG-88

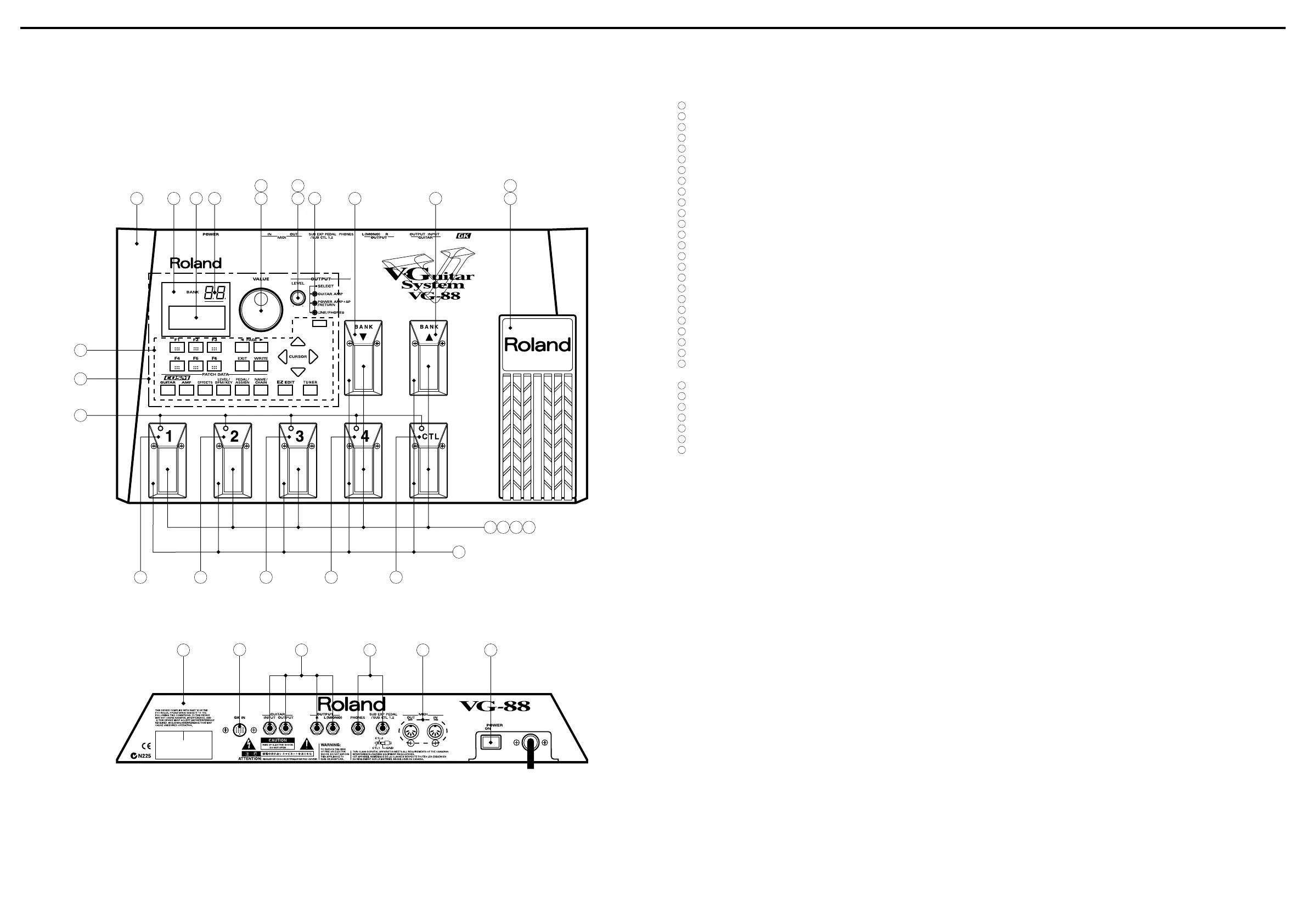

LOCATION OF CONTROLS
／パネル配置図
LOCATION OF CONTROLS PARTS LIST
／パネル配置図パーツリスト
[Parts List of Front Panel view]
NO. Part Code Part Name Description
02123656 TOP COVER
02123689 DISPLAY COVER
01895790 LCD DMF-51026NY-LY
00342445 LED SL-1264H
01011656 LED (RED) SLR-332VR3F
02123690 KEYTOP UNIT
01780101 TACT SWITCH SKQKAB
00341134 M R-KNOB LF BLK/BLU
01016145 14M/M ROTARY POTENTIOMETER RK14K12D0 10KBX2
22485303 D R-KNOB L BLK 248-303
01013223 ROTARY ENCODER EVQ VEM F01 24B
02122645 PEDAL LABEL (1)
02122656 PEDAL LABEL (2)
02122667 PEDAL LABEL (3)
02122678 PEDAL LABEL (4)
02122689 PEDAL LABEL (CTL)
00568945 PEDAL LABEL(BANK DOWN)
00568956 PEDAL LABEL(BANK UP)
22220321 ESCUTCHEON 222-321
22350171 RUBBER FOOT 235-171
22180605 SWITCH PEDAL
22170103 SUPPORT SPRING (FOR SWITCH PEDAL)
13129778 TACT SWITCH SKQKAH
00787756 PEDAL FV.EV-A
00780934 ROLAND RUBBER PLATE
[Parts List of Rear Panel view]
02123667 BOTTOM COVER
13449150 6.5MM JACK HLJ0544-01-010
13449155 6.5MM JACK HLJ0544-01-110
02122390 DIN EXP CONNECTOR TCS5095-114152
13429825 MIDI CONNECTOR YKF51-5054 2PZ
71569134 AC SW ASSY SDDJE1-A-2 10A/250VAC
71565334 AC CORD ASSY 100V
71567690 AC CORD ASSY 117V
71567789 AC CORD ASSY 230V
71567834 AC CORD ASSY 230VE
71567889 AC CORD ASSY 240VA
1
2 3 4
5
6
7
8
9
10
11
17
18
19
20 21 22 23
24
25
26
27
28
29
30
31
5
12 13 14 15 16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
