Roland VG-88 Service Notes

4
Apr. 2000
VG-88
EXPLODED VIEW PARTS LIST
／分解図パーツリスト
[Parts List]
NO. Part Code Part Name Description Q'TY
02123656 TOP COVER 1
02123690 KEYTOP UNIT 1
02123689 DISPLAY COVER 1
00341134 M R-KNOB LF BLK/BLU 1
22485303 D R-KNOB L BLK 248-303 1
02122656 PEDAL LABEL (2) 1
02122678 PEDAL LABEL (4) 1
02122689 PEDAL LABEL (CTL) 1
02122645 PEDAL LABEL (1) 1
02122667 PEDAL LABEL (3) 1
00568945 PEDAL LABEL(BANK DOWN) 1
00568956 PEDAL LABEL(BANK UP) 1
22220321 ESCUTCHEON 222-321 7
22350171 RUBBER FOOT 235-171 7
22170103 SUPPORT SPRING (FOR SWITCH PEDAL) 7
22180605 SWITCH PEDAL 7
01016267 SHAFT STAY 1
01120978 CUSHION 30X10X2 1
01016223 FOOT 30X10X3 1
00787767 BOLT HOLDER FV-A 2
01016212 PEDAL HOLDER 1
00787756 PEDAL FV.EV-A 1
00780934 ROLAND RUBBER PLATE 1
22140315 HOLDER PIN PIN 214-315(FOR FV/EV) 1
71674756 7SEG PANEL SW ASSY 1
71674745 NUMBER BANK ASSY 1
71565256 EXP VR BOARD ASSY 1
71565267 PS BOARD ASSY 1
71563501 MAIN BOARD ASSY (EXG) 1
12569249 LITHIUM BATTERY CR2032 220MAH/3V 1
02123589 FUJI CARD 24X180-A5.0BB-P1.25-HBL8 1
02123590 BAN CARD BNCD-P=1.25-K-14-100 1
02123667 BOTTOM COVER 1
40122645 NITTO FILAMENT TAPE #3883 W19MM (4cm) 4cm
02123678 INSULATING SHEET 2
40017356 COATING CLIP CS-4 1
22355334 FOOT MKS 235-334 6
71569134 AC SW ASSY 1
01895790 LCD DMF-51026NY-LY 1
71565334 AC CORD ASSY 100V 1
71567690 AC CORD ASSY 117V 1
71567789 AC CORD ASSY 230V 1
71567834 AC CORD ASSY 230VE 1
71567889 AC CORD ASSY 240VA 1
02121189 PWR TRANS 100/120V 1
02121190 PWR TRANS 230/240V 1
00019567 LINE FILTER FERRITE CORE SFC-6 SFC-6 1
40122556 DOUBLE FACED ADHESHIVE TAPE #575X W30MM 30M 10P 30CM 2cm
40126812 CAUTION LABEL BARRIER(117V ONLY) 1
[Screw]
NO. Part Code Part Name Description Q'TY
40015901 E-RING M2.5 SUS 1
40016067 PLAIN WASHER 6X13X1 BZC 2
40011856 INSULATING WASHER 3X8X0.8 FIBER-W 1
40011923 WASHER M9.1X13 INTERNAL TOOTH 1
40016001 LOCK NUT M6 U BZC 1
40011745 HEX NUT M4 SPRING NUT FE ZC 3
40123545 JACK NUT 9X11X2 HLJ0999-01-240 FE NI 6
40015989 HEX BOLT 6X67 HALF THREAD BZC 1
40013001 SCREW 4X8 PAN W SEMS BZC 4
40019123 SCREW 3X8 BINDING TAPTITE S BZC 14
40015945 SCREW 3X8 BINDING TAPTITE S FE ZC 5
40012512 SCREW 3X6 BINDING TAPTITE S ZC 9
40342578 SCREW 3X6 TAPTITE S BINDING BZC 19
40011278 SCREW 3X8 BINDING TAPTITE-P FE ZC 20
40011312 SCREW 3X8 BINDING TAPTITE P FE BZC 2
40010245 SCREW 3X6 BINDING BZC 2
40123545 JACK NUT 9X11X2 HLJ0999-01-240 FE NI 2
40016467 JACK WASHER M9.2X14X0.5 FENI 7
40235189 RING SE-9 1

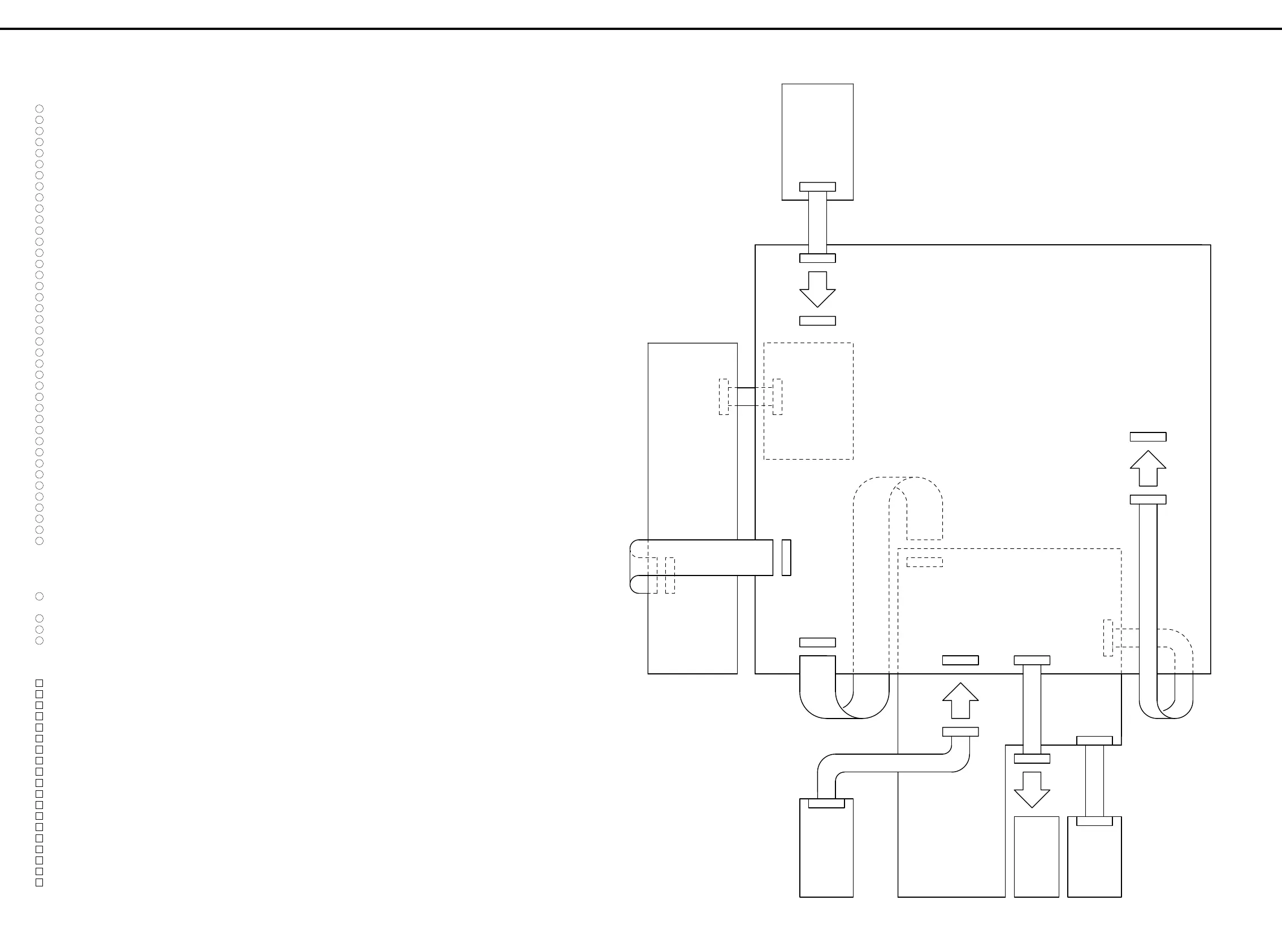

WIRING DIAGRAM
／ワイヤリング配線図
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
CN4
CN10
CN7
CN6
CN8
WIRING PS
CN5
PS BOARD ASSY
71674745 NUMBER BANK ASSY
CN6
CN2
CN1
02123589 FUJI CARD 24X180-A5.0BB-P1. 25-HBL8
CN1
WIRING EXP VR
71565256 EXP VR BOARD ASSY
CN3
71674756 7SEG PANEL SW ASSY
CN5
CN4
RIBON CABLE 5X40-P2.0
71565267
02123590
BNCD-P1. 25-K-14-100
CN8
CN7
WIRING LCD
WIRING OUTPUT VR
71563501 MAIN BOARD ASSY
LCD UNIT
