Hardware Installation and Reference Guide Product Overview
14

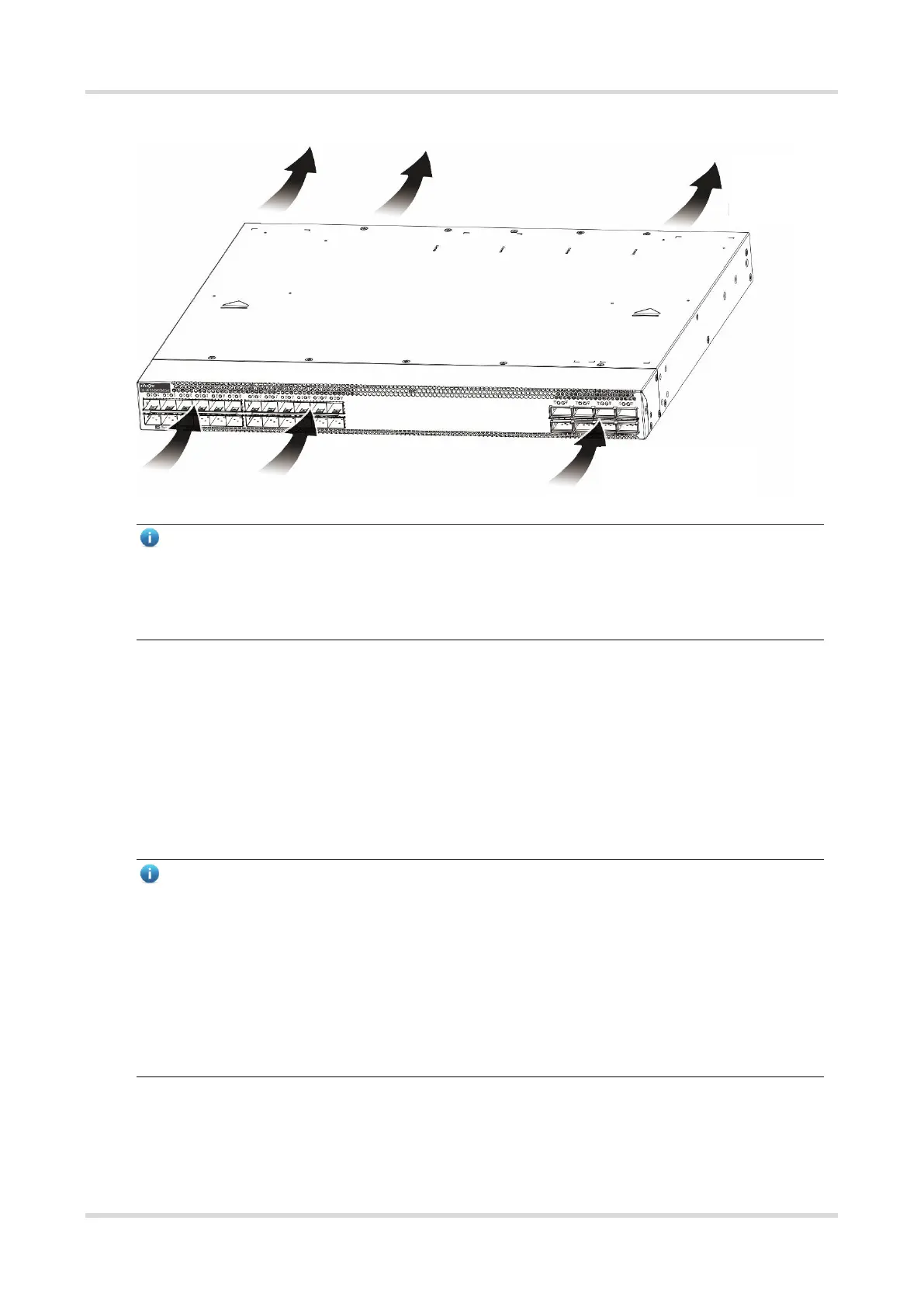

Figure 1-10 Airflow Direction of the RG-S6150-24VS8CQ-X
Note
Maintain a minimum clearance of 20 cm (7.87 in.) around the switch for ventilation.
It requires at least three fan modules to work normally. Filler panels need to be installed in the unoccupied fan
module slots to ensure ventilation and heat dissipation and avoid dusts.
1.3 Power Supply Module
1.3.1 RG-PA550I II-F Power Supply Module
The RG-S6150-X series switches support the RG-PA550I II-F power supply module. The smart power supply
module supports power management, and the switch can read input power, input current, and temperature in
real time. The power supply module supports hot swapping.
Note
The RG-S6150-X series switches support 1+1 power supply redundancy. To improve the stability and reliability
of the entire system, you are advised to configure 1+1 power supply redundancy. When the two power supply
modules work normally, the switch is in the status of current sharing.
It requires at least one power supply module to work normally. Filler panels need to be installed in the
unoccupied power supply module slots to ensure ventilation and heat dissipation and avoid dusts.
The power supply module is not delivered with the switch. Please purchase the module separately to ensure
normal operation of the device.
