Hardware Installation and Reference Guide Installing the Switch
27

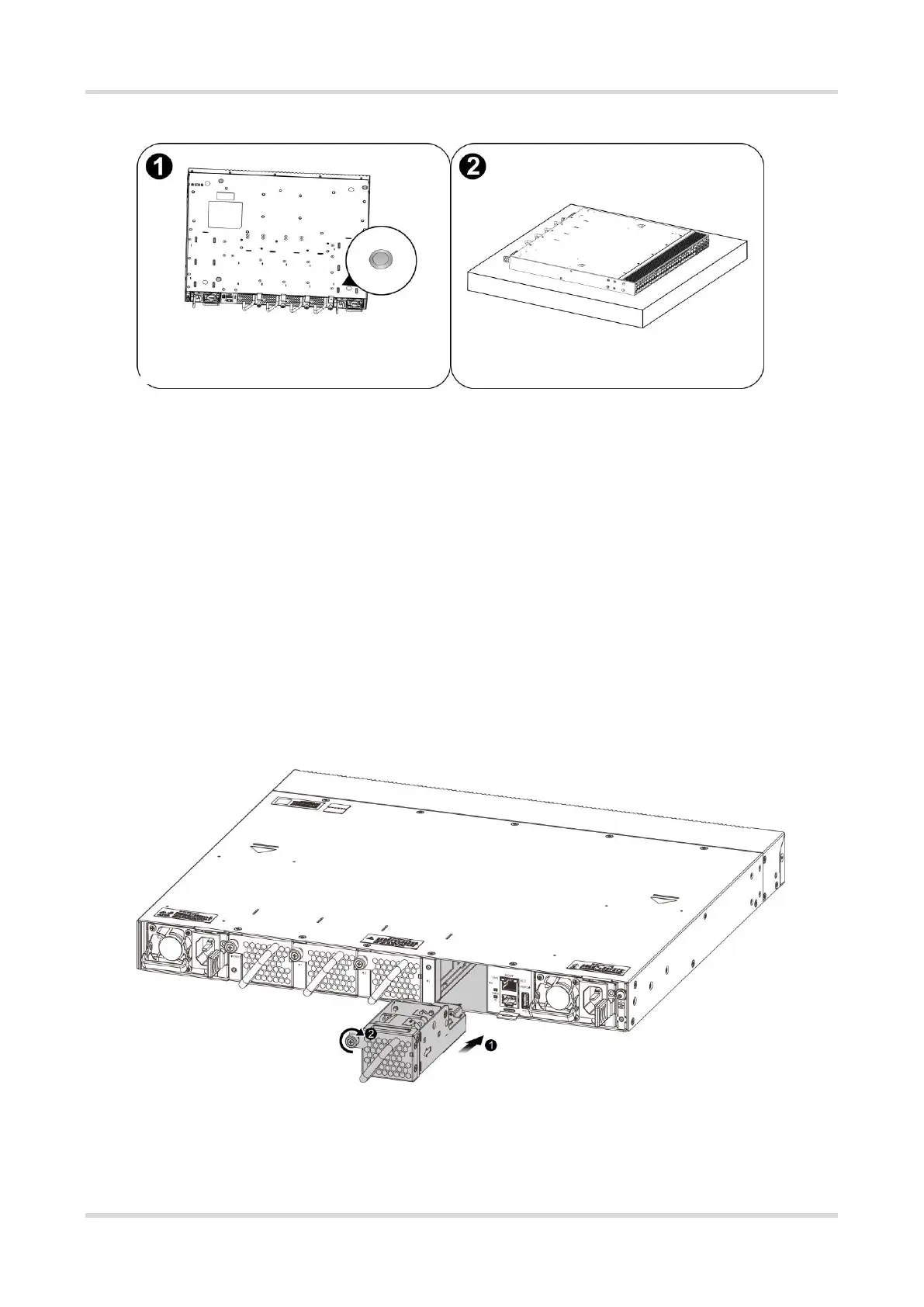

Figure 3-3 Mounting the Switch on a Workbench
3.5 Installing and Removing a Fan Module
Precautions
Wear anti-static gloves before the following operations.
Please keep the device away from the children for fear that children may put their fingers into the air vent.
Installing an Fan Module
(1) Remove the fan module from its packing materials.
(2) Grasp the handle and slide the module into the slot along the guide rail slowly until you feel the connector
snap into place.
(3) Tighten the captive screws with a screwdriver to secure the fan module in the switch chassis.
Figure 3-4 Installing a M1EFAN II-F Fan Module
Attach the four rubber pads to
the four corners on the switch
bottom.
Place the switch on the workbench.
