Chapter
1
Operation
Procedures
Operation Edition - 28

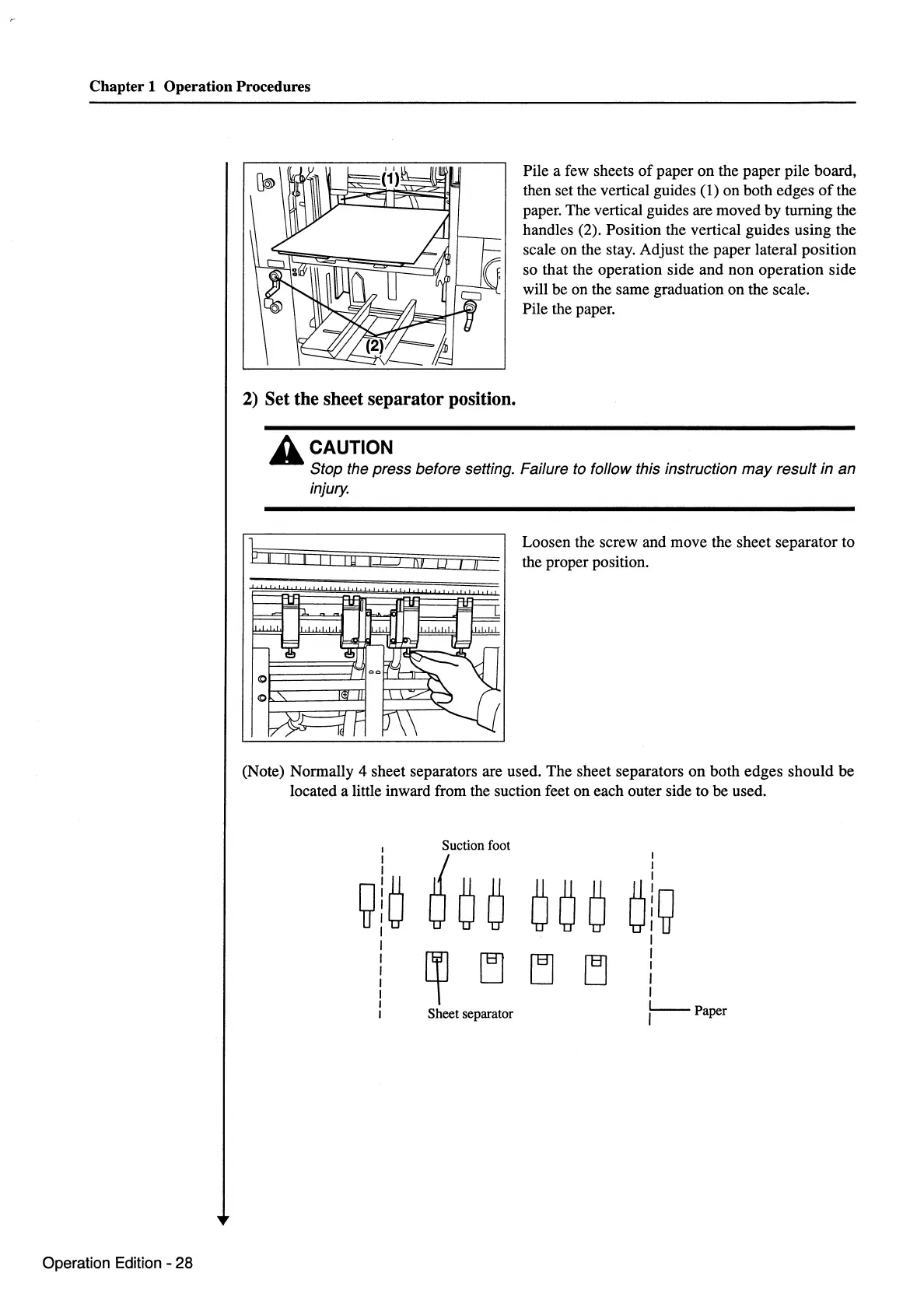

Pile a few sheets
of
paper on the paper pile board,
then set the vertical guides
(1) on both edges
of
the
paper. The vertical guides are moved by turning the
handles (2). Position the vertical guides using the
scale on the stay. Adjust the paper lateral position
so that the operation side and non operation side
will be on the same graduation on the scale.
Pile the paper.
2)
Set the sheet separator position.
A CAUTION
Stop the press before setting. Failure
to
follow this instruction
may
result in an
injury.
Loosen the screw and move the sheet separator to
the proper position.
(Note) Normally 4 sheet separators are used. The sheet separators on both edges should be
located a little inward from the suction feet on each outer side to be used.
Suction foot
g 6 6 6 6 6 6 6
big
I
~l:Jl:JEJ!
Sheet separator
r---
Paper
To Next Page
