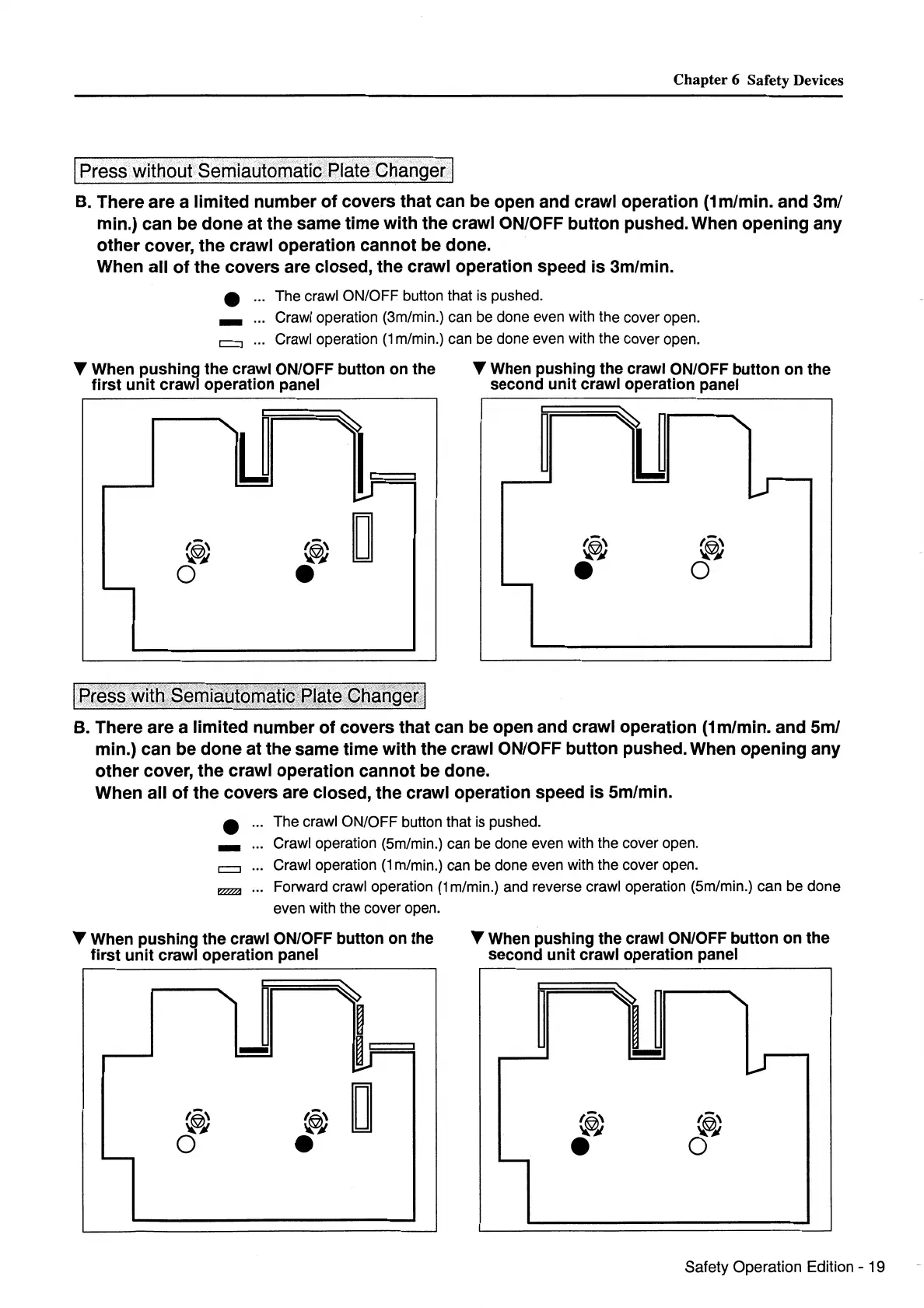

Chapter
6 Safety Devices
I
Press
without
Semiautomatic
Plate
Changer
I
B.
There are a limited number
of
covers that can be open and crawl operation (1m/min. and 3m/
min.) can be done at the same time with the crawl ON/OFF button pushed. When opening any
other
cover, the crawl operation cannot be done.
When all
of
the covers are closed, the crawl operation speed is 3m/min.
e The crawl ON/OFF button that is pushed.
_
...
Crawl operation (3m/min.) can
be
done even with the cover open.
c:::::J ••• Crawl operation (1m/min.) can be done even with the cover open.
T When
pushing
the crawl ON/OFF button on the
first
unit
crawl operation panel
T When
pushing
the crawl ON/OFF
button
on the
second
unit
crawl operation panel
n
.---'
I··P.re$s•··vvithSel"lliautarrfatlc$·•·BI.~te¢han9·~rl
B.
There are a limited number
of
covers that can be open and crawl operation (1m/min. and 5m/
min.) can be done at the same time with the crawl ON/OFF button pushed. When opening any
other
cover, the crawl operation cannot be done.
When all
of
the covers are closed, the crawl operation speed
is
5m/min.
•
-
The crawl ON/OFF button that
is
pushed .
Crawl operation (5m/min.) can
be
done even with the cover open.
Crawl operation (1m/min.) can be done even with the cover open.
Forward crawl operation (1m/min.) and reverse crawl operation (5m/min.) can be done
even with the cover open.
T When
pushing
the
crawl ON/OFF button on the
first
unit
crawl
operation panel
T When pushing the crawl ON/OFF
button
on
the
second
unit
crawl operation panel
I
~
.......
~I
~
lr
nu
........
~
,-,
,-,
D
~
~
0
•
'@'
,-,
'!(~
~
•
0
-
.......__
Safety Operation Edition - 19
