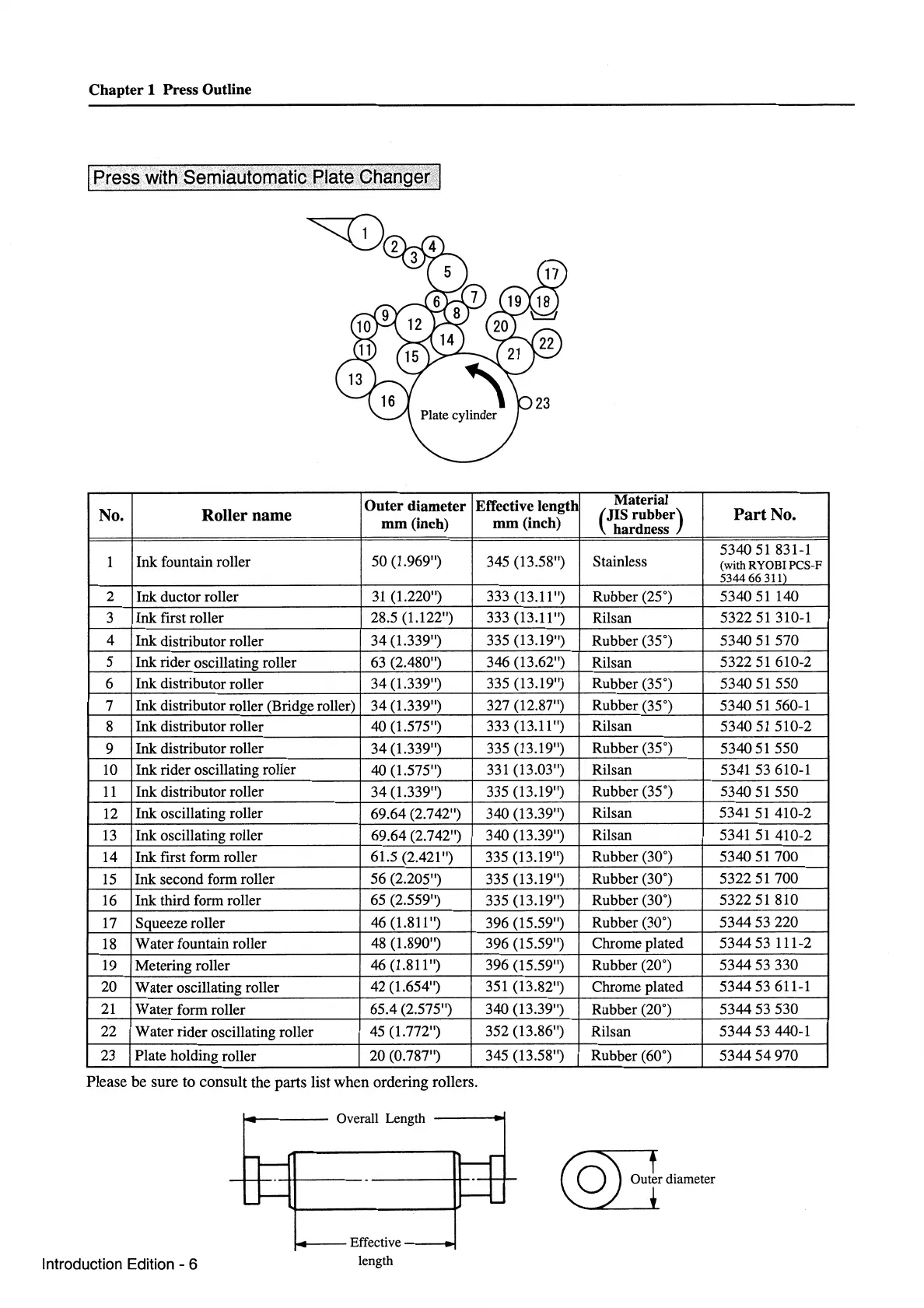

Chapter
1
Press
Outline
I
Press
with·•semiautomaticPiate Change( I
Outer
diameter
Effective length
No.
Roller name
mm
(inch)
mm
(inch)
1
Ink fountain roller 50 (1.969")
345 (13.58")
2
Ink ductor roller
31
(1.220") 333 (13.11")
3
Ink first roller 28.5 (1.122") 333 (13.11")
4 Ink distributor roller
34 (1.339") 335 (13.19")
5 Ink rider oscillating roller
63
(2.480") 346 (13.62")
6
Ink distributor roller
34 (1.339") 335 (13.19")
7
Ink distributor roller (Bridge roller)
34 (1.339") 327 (12.87")
8
Ink distributor roller 40 (1.575")
333 (13.11 ")
9
Ink distributor roller
34 (1.339") 335 (13.19")
10
Ink rider oscillating roller 40 (1.575")
331
(13.03")
11
Ink distributor roller
34 (1.339") 335 (13.19")
12
Ink oscillating roller
69.64 (2.742")
340 (13.39")
13
Ink oscillating roller 69.64 (2.742")
340 (13.39")
14 Ink first form roller
61.5 (2.421 ") 335 (13.19")
15
Ink second form roller
56 (2.205") 335 (13.19")
16
Ink third form roller
65
(2.559") 335 (13.19")
17
Squeeze roller
46 (1.811 ") 396 (15.59")
18
Water fountain roller
48
(1.890") 396 (15.59")
19
Metering roller
46 (1.811") 396 (15.59")
20
Water oscillating roller
42 (1.654")
351
(13.82")
21
Water form roller
65.4 (2.575") 340 (13.39")
22 Water rider oscillating roller
45
(1.772")
352 (13.86")
23
Plate holding roller 20 (0.787") 345 (13.58")
Please
be
sure to consult the parts list when ordering rollers.
