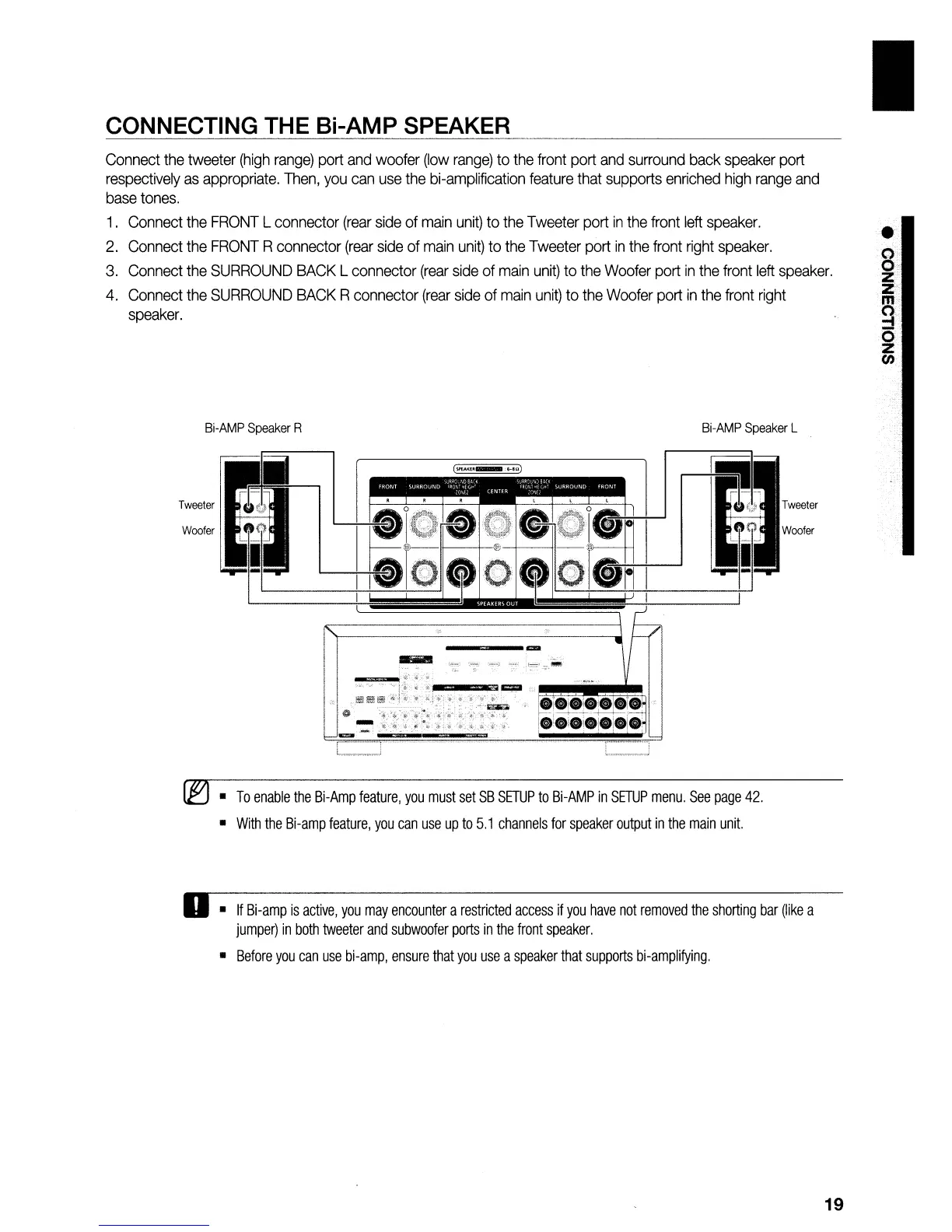

CONNECTING THE Bi-AMP SPEAKER
Connect the tweeter (high range) port and woofer (low range) to the front port and surround back speaker port
respectively as appropriate. Then, you can use the bi-amplification feature that supports enriched high range and
base tones.
1. Connect the FRONT L connector (rear side of main unit) to the Tweeter port in the front left speaker.
2. Connect the FRONT R connector (rear side of main unit) to the Tweeter port in the front right speaker,
3. Connect the SURROUND BACK L connector (rear side of main unit) to the Woofer port in the front left speaker.
4. Connect the SURROUND BACK R connector (rear side of main unit) to the Woofer port in the front right
speaker.
I
•
g
Z.
z·
m
~
o
z
en
Bi-AMP Speaker R Bi-AMP Speaker L
Tweeter
Woofer
(EJ • To enable the Bi-Amp feature, you must set SB SETUP to Bi-AMP in SETUP menu, See page 42.
• With the Bi-amp feature, you can use up to 5,1 channels for speaker output in the main unit.
o · If Bi-amp is active, you may encounter a restricted access if you have not removed the shorting bar (like a
jumper) in both tweeter and subwoofer ports in the front speaker.
• Before you can use bi-amp, ensure that you use a speaker that supports bi-amplifying,
