Samsung HW-C900 - Connecting a CD Player

CflOn8ctrn'-'----L.-S _

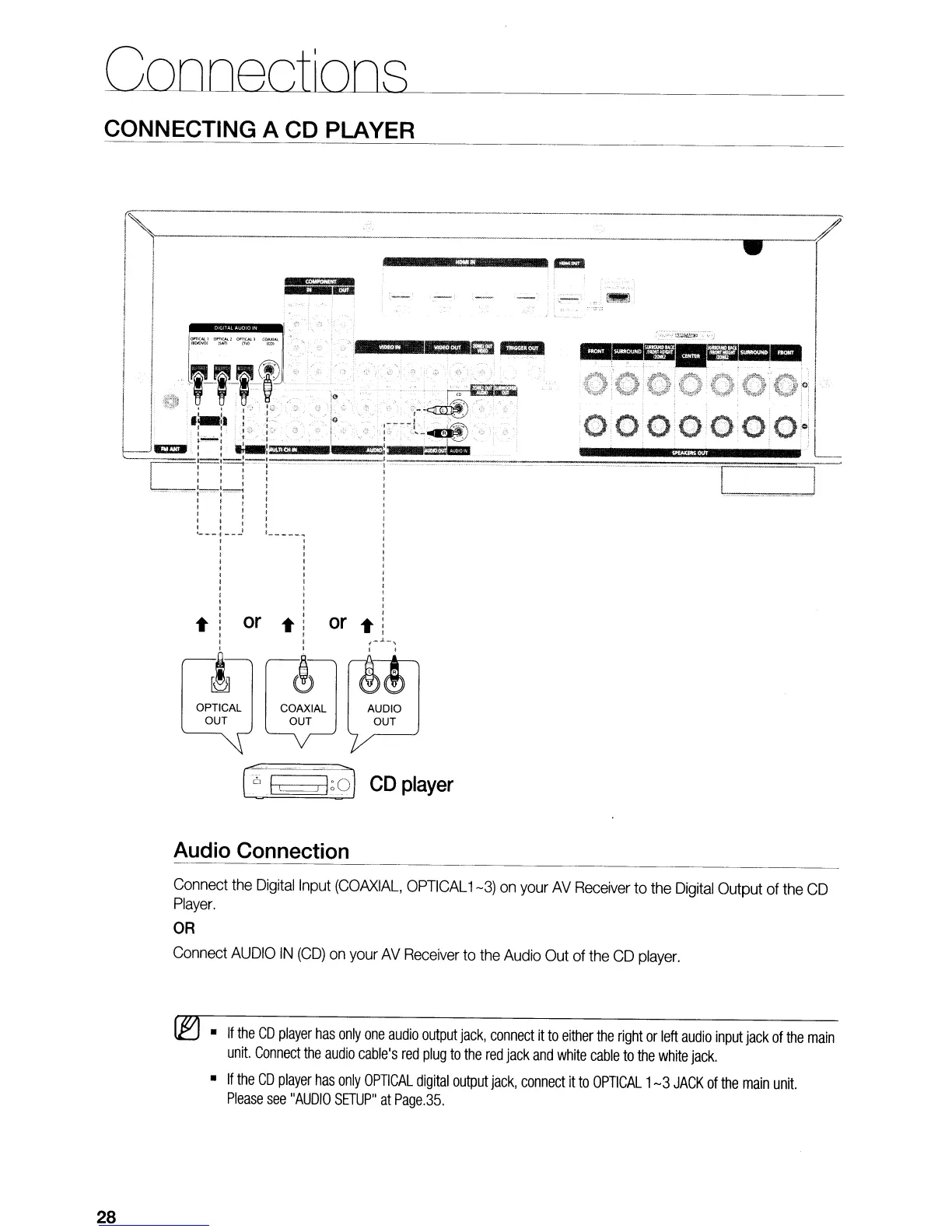

CONNECTING A CD PLAYER
(
•
,,---~
~:~~~":"~ -~.-;
e.j·!~ii·i,Iii.~IBi; ....
c:r :0 ·OHI
o oo'o.o·o,o"i
L
,
ifill-Jolt
--"---'L _ ,I
Ell IlIllII
. .. -.- .
,
I
or .:
~-~ - ...
I I
COAXIAL
OUT
OPTICAL
OUT
f'-
I~C-------
I I ,'3Y -- Il:.lI:3
I I =-=
I
[-:-, ~ l~QI CD player
Audio Connection
Connect the Digital Input (COAXIAL, OPTICAL 1-3) on your AV Receiver to the Digital Output of the CD
Player.
OR
Connect AUDIO IN (CD) on your AV Receiver to the Audio Out of the CD player.
~ • If the CD player has only one audio output jack, connect it to either the right or left audio input jack of the main
unit. Connect the audio cable's red plug to the red jack and white cable to the white jack.
• If the CD player has only OPTICAL digital output jack, connect it to OPTICAL 1 -3 JACK of the main unit.
Please see "AUDIO SETUP" at Page.35.
28
