3
Connecting
the
speaker
o
ACTIVE
SUBWOOFER
FRONT
(R)
[;3
-
,,-
.t!IIJ>
,.,
v·
I
,,'
~'li
.'==--
(!:J
•
If
you
want
to
use
two
active
subwoofer
speakers,
connect
both
subwoofer
speakers
into
the
SUBWOOFER
OUT
terminals
in
the
rear
panel.
•
When
using
Dolby
Pro
Logic
liz,
connect
the
Surround
Back
Speakers
(FHL,
FHR)
to
SURROUND
BACK/FRONT
HEIGHT
Jack.

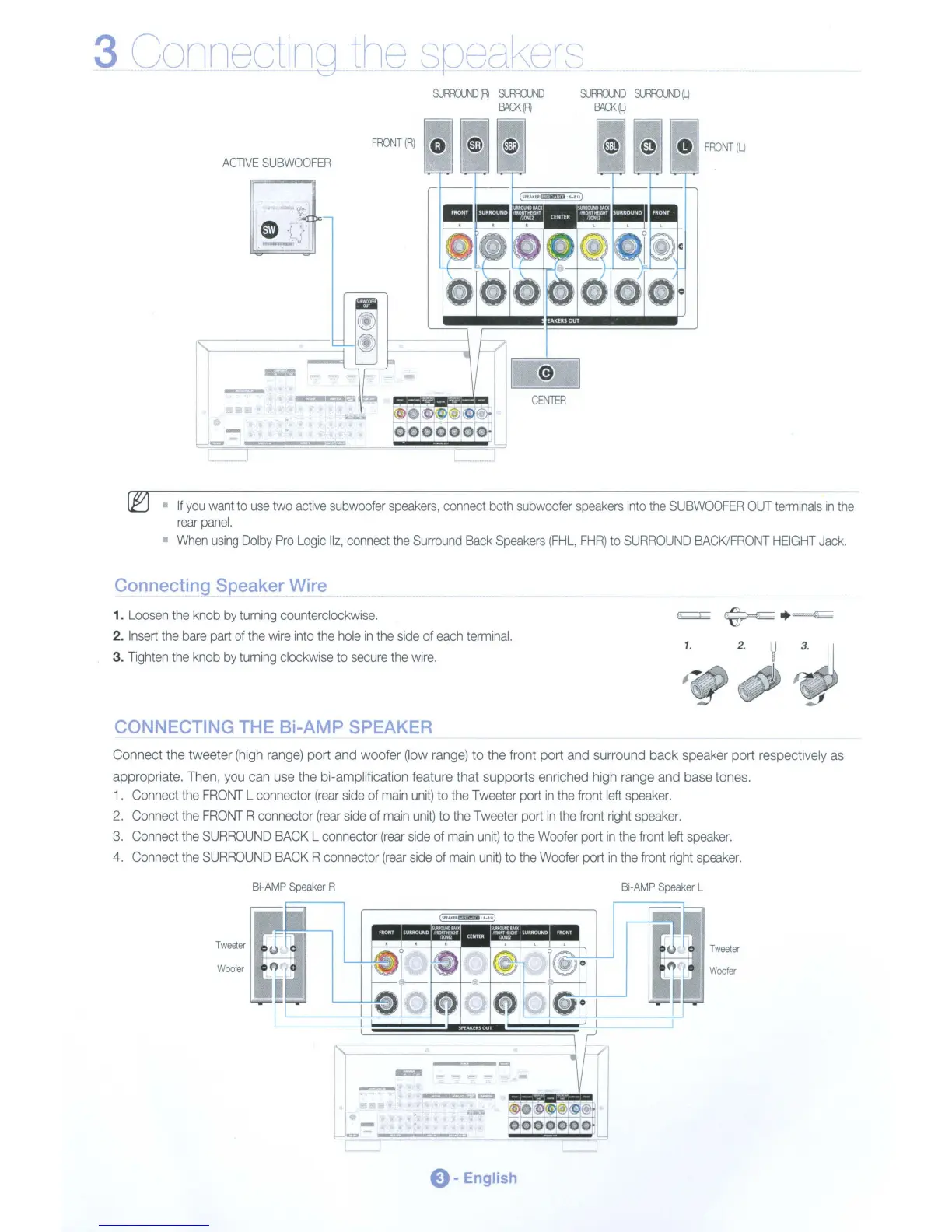

Connecting Speaker Wire
1.
Loosen
the
knob
by
turning
counterclockwise.
2.
Insert
the
bare
part
of
the
wire
into
the
hole
in
the
side
of
each
terminal.
3.
lighten
the
knob
by
turning
clockwise
to
secure
the
wire.
CONNECTING
THE
Bi-AMP
SPEAKER
Connect the tweeter
(high
range)
port
and
woofer (low
range)
to the front port
and
surround back speaker port respectively
as
appropriate.
Then,
you
can
use
the bi-amplification feature that supports enriched
high
range
and
base tones.
1.
Connect
the
FRONT
L connector
(rear
side
of
main
unit)
to
the
Tweeter
port
in
the
front
left
speaker.
2.
Connect
the
FRONT
Rconnector
(rear
side
of
main
unit)
to
the
Tweeter
port
in
the
front
right
speaker.
3.
Connect
the
SURROUND
BACK
L connector
(rear
side
of
main
unit)
to
the
Woofer
port
in
the
front
left
speaker.
4.
Connect
the
SURROUND
BACK
Rconnector
(rear
side
of
main
unit)
to
the
Woofer
port
in
the
front
right
speaker.
Bi-AMP
Speaker
R
Bi-AMP
Speaker
L
Woofer
Tweeter
Woofer
e-
English
