English - 4

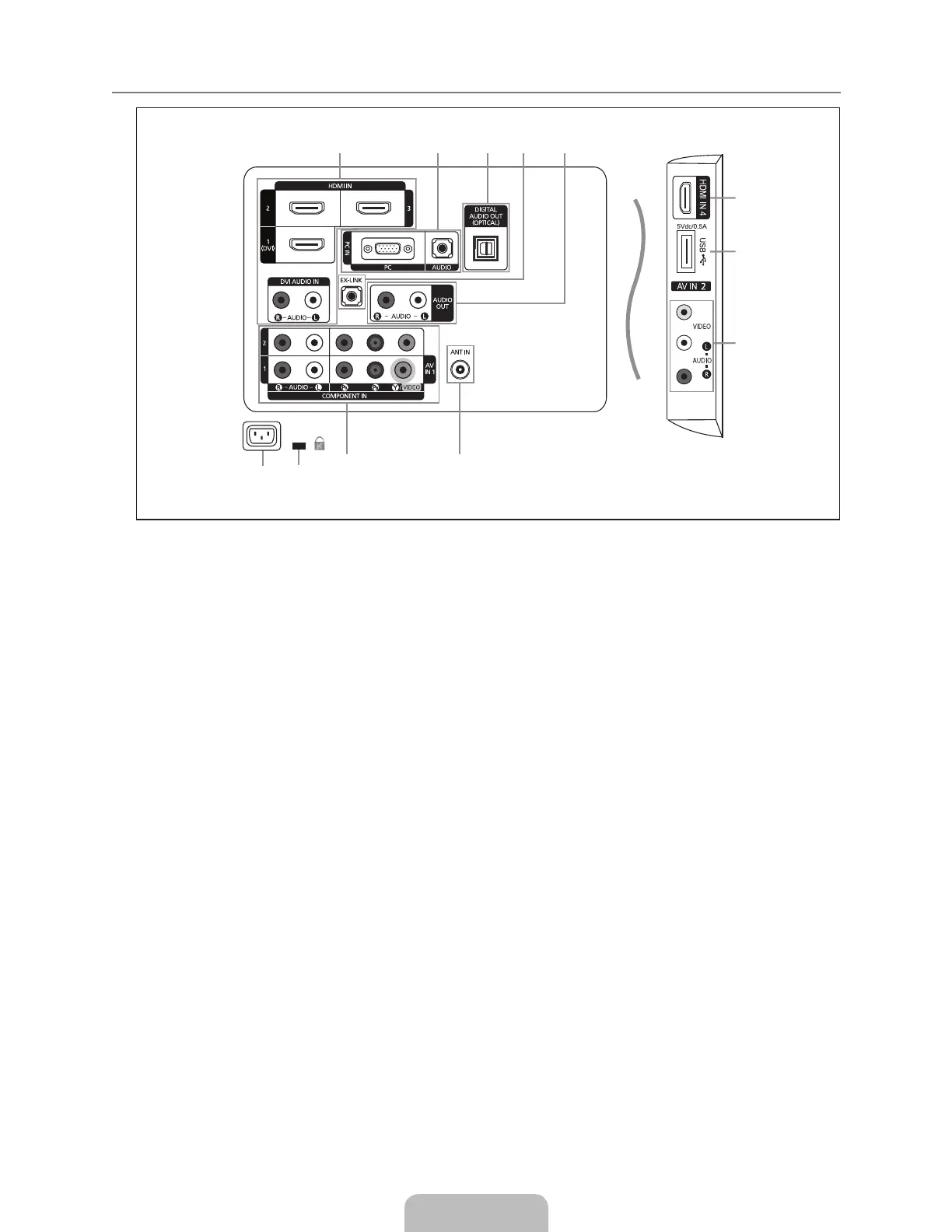

Viewing the Connection Panel
The product color and shape may vary depending on the model.
1
HDMI IN 1(DVI), 2, 3, 4 / DVI AUDIO IN [R-AUDIO-L]
Connects to the HDMI jack of a device with an HDMI output.
No sound connection is needed for an HDMI to HDMI connection.
Use the HDMI IN 1 (DVI) jack for DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI
adapter (DVI to HDMI) for video connection and the DVI AUDIO IN [R-AUDIO-L] jacks for audio.
When using an HDMI/DVI cable connection, you must use the HDMI IN 1 (DVI) jack.
Y
ou can also use the ports to connect to a PC.
2
PC IN [PC] / [AUDIO]
Connects to the video and audio output jacks on your PC.
3
DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component such as a Home theater receiver.
4
EX-LINK
Connector for service only.
5
AUDIO OUT
Connects to the audio input jacks on your Amplier/Home theater.
6
USB
Connector for software upgrades and Media Play, etc.
7
AV IN 2
Video and audio inputs for external devices, such as a camcorder or VCR.
8
ANT IN
Connects to an antenna or cable TV system.
9
COMPONENT IN 1, 2 / AV IN 1
Connects Component video / audio. The COMPONENT IN 1 jack is also used as the AV IN 1 jack.
Connect the video cable to the COMPONENT IN 1 [Y/VIDEO] jack and the audio cable to the COMPONENT IN 1
[R-AUDIO-L] jacks.
0
KENSINGTON LOCK
The Kensington Lock (optional) is a device used to physically x the system when used in a public place. If you want to
use a locking device, contact the dealer where you purchased the TV.
The location of the Kensington Lock may be different depending on its model.
!
POWER INPUT
Connects the supplied power cord.
¦
N
–
N
N
N
N
–
–
–
–
–
–
–
–
N
–
N
–
[TV Rear Panel]
[TV Side Panel]
